Capacitor
4 Speed
Blower
Capacitor
4 Speed
Blower
Neutral
120v
4 Dimmable GU10 lights for model 48
3 Dimmable GU10
lights for models 36, 42
LED
Lights
Motor
Switch
This range hood is equipped with 2 rotary switches. Left switch con-
trol the blower, right switch controls the lights.
BLOWER SWITCH:
Rotate the switches clockwise to switch the blower ON.
The switch has 5 positions: OFF, SPEED 1,2,3,4.
LIGHT SWITCH:
Rotate the switches clockwise to switch the lights ON.
The light switch allows you to control the intensity of the light via
rotary dimmer.
VICTORY range hoods
| STAR
22
VICTORY range hoods
STAR |
23

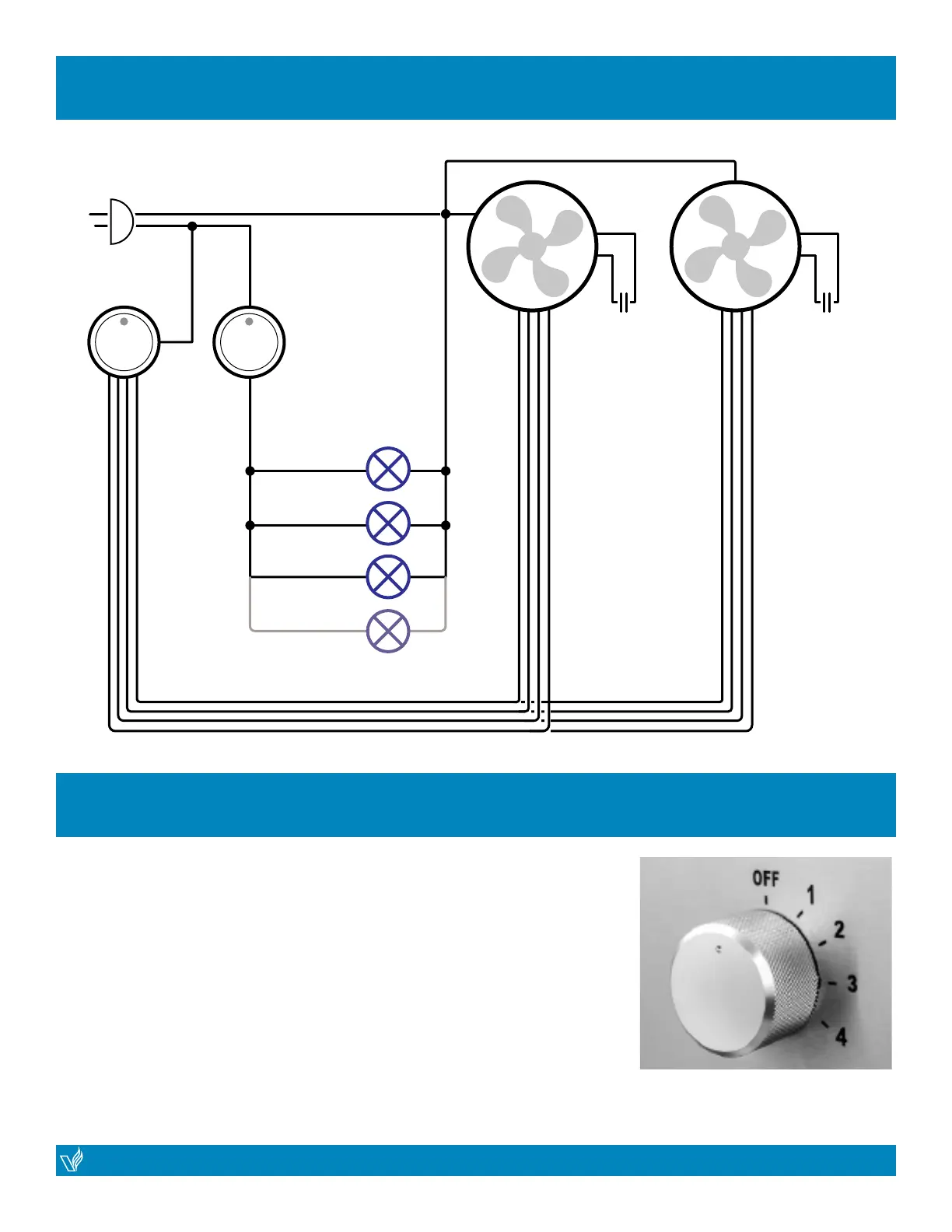

WIRING DIAGRAM
RANGE HOOD OPERATIONS
