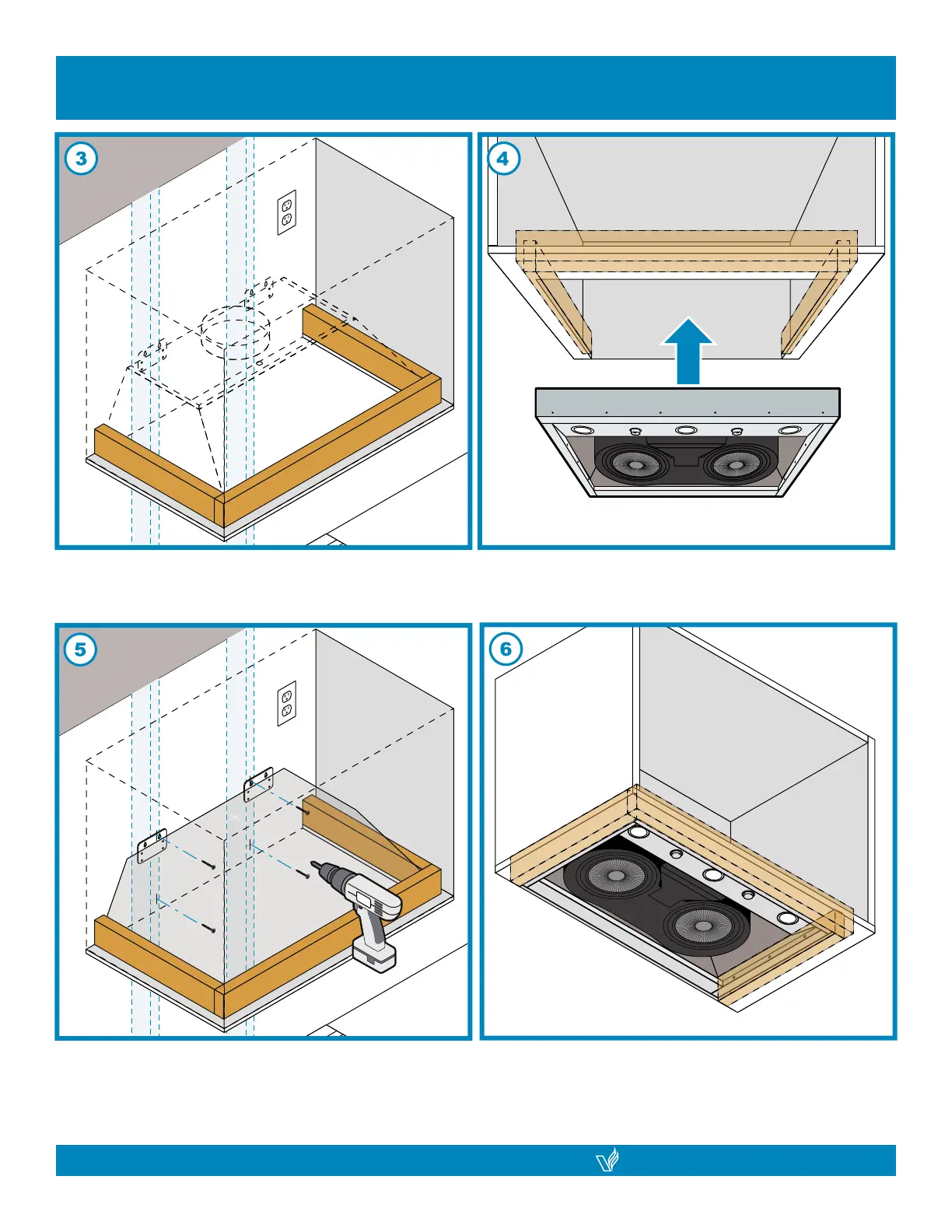

(3) Fabricate a 2” x 4” woodblock inside the cupboard
bottom panel surrounding the opening and where
range hood placement will be.
Ensure studs behind the wall are located in order to Ensure studs behind the wall are located in order to
fasten woodscrews through mounting brackets and fasten woodscrews through mounting brackets and
pre-drilled holes. pre-drilled holes.
Ensure studs behind the wall are located in order to
fasten woodscrews through mounting brackets and
pre-drilled holes.
(4) Carefully insert and slide the range hood in
the overhead cabinet. Make sure that the side
installation holes line up with the woodblock.
(5) Fasten with #8 1-⅛“ (minimum) woodscrews (not
included) from the inner back panel of the range
hood into the measured pre-drilled installation holes.
(6) CAUTION: Range hood is not fully secure, do
not release. Maintain hold while preparing to add
anchor screws
