Min: 24”
Max: 30”
Optimal: 28”
The designer will determine
width, height and depth of the
cabinet housing to encase
the range hood model selected.

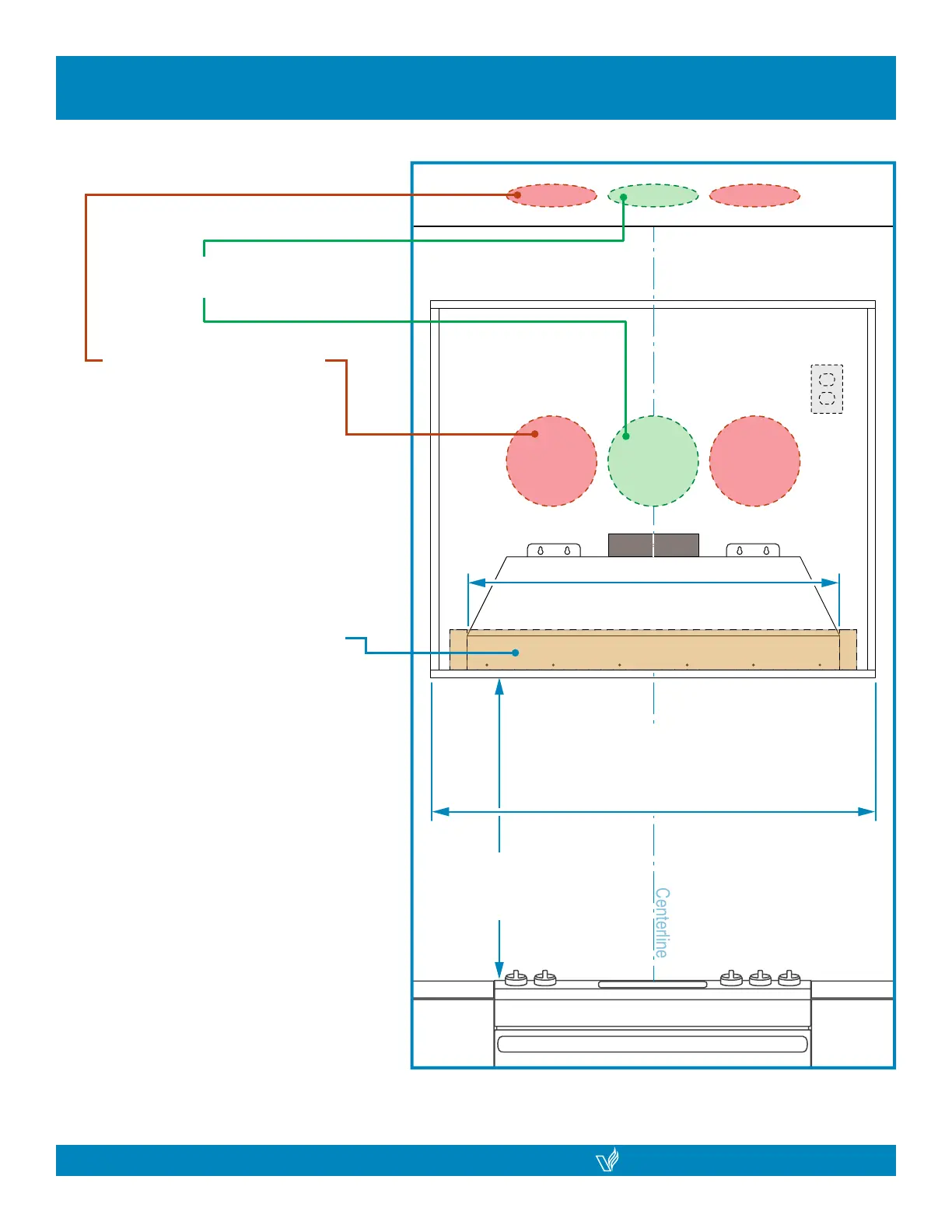

8” Ø Transition
STAR-36 Range Hood
Preferred areas to install
wall or roof vent ducting.
Wall or roof vent may be
installed in these areas but
not recommended.
120v Outlet can
be located here
Ensure there is space to allow 2” x 4”
woodblocking. This is needed to screw
woodscrew anchors to secure install.
Measure the distance between the stove top
and the bottom of range hood. A distance of
24 to 30” is recommended*.
*Due to dierent ceiling height congurations, recommended height may not be applicable.
