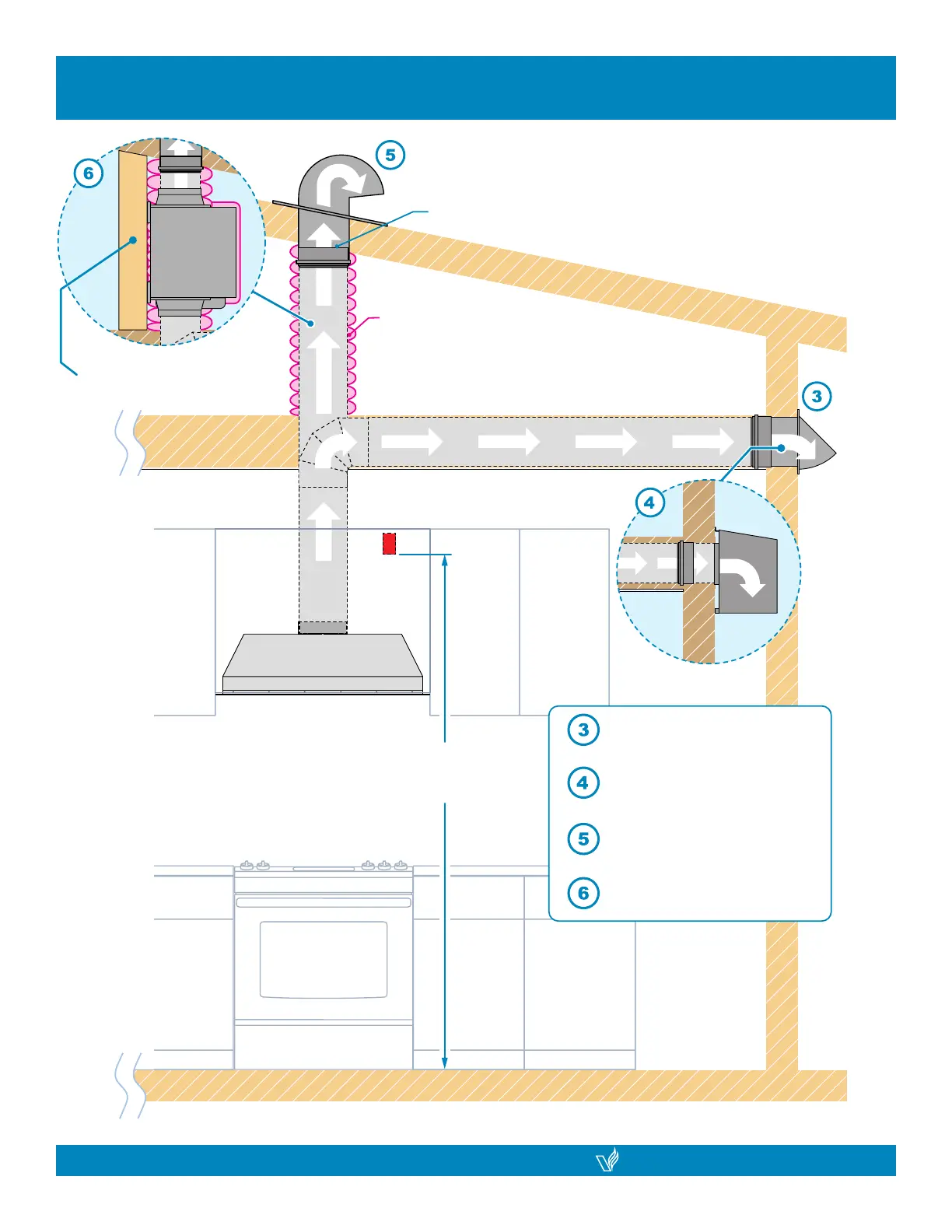

Victory STAR - Venting Methods (Continued); Venting Configurations and Options; Optional Remote Blower Installation

Backdraft Damper
Wrap insulation
required for cold climates
8” Ø Duct remote
blower installations
Power Outlet
Min: 85”
from floor
Optional
Remote
Blower
Install brace support
to attach the optional
remote blower
Wall Vent Cap
Optional Outdoor
Remote Blower
Roof Vent
Roof Vent with
Remote Blower
