Victrola BROOKLINE - Product Overview: Rear Connections and Turntable Parts; FM Antenna and Line Out Jacks; AC Power Cord Connection; Turntable Components

7

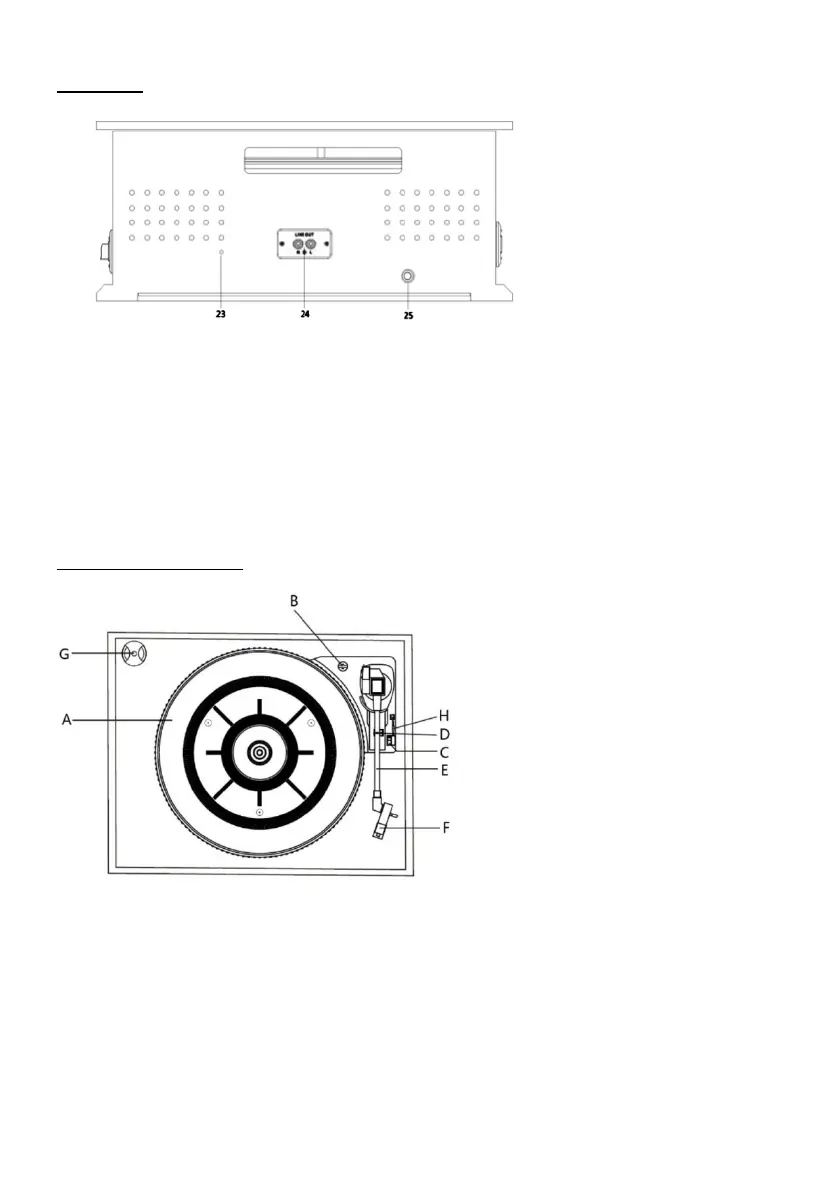

Rear View
23. FM Antenna
24. LINE OUT Jacks
For amplifier device with RCA auxiliary input sockets, insert the white and red plugs on the RCA
cable into the unit. Insert the opposite end into the amplifier device. Be sure to connect the
white plug to the white jack and the red plug to the red jack.
While tuned to a station in FM mode, extend the wire and reposition to adjust for best reception.
25. AC Power Cord
Connect the AC plug into a wall outlet.
It is strongly recommended that this product be operated only from the type of power source
indicated on the marking label.
Parts of the Turntable
A. Turntable
B. Safety Screw (for transport) Before using the unit,
turn the screw clockwise using a coin or screwdriver.
Important: When you transport the unit, turn the screw
counterclockwise to secure the turntable.
C. Speed Selector
D. Tone Arm holder
E. Tone Arm
Before use, completely loosen the twist tie on the tone arm and uplift tone arm.
F. Stylus
G. 45 RPM adaptor
Before use, rotate it completely to loosen and pull it out.
H. Cue-lever Use this lever to lift the tone arm.
