11
DC I N
LI NE OUT
L
R
PAIR
ON OF F
LI NE I N
ON
DC I N
OF F
VOL-
VOL+
BT/
LINE IN
CHARGE
9
10
11 12 13
14
15
16
18
19
25
26
27

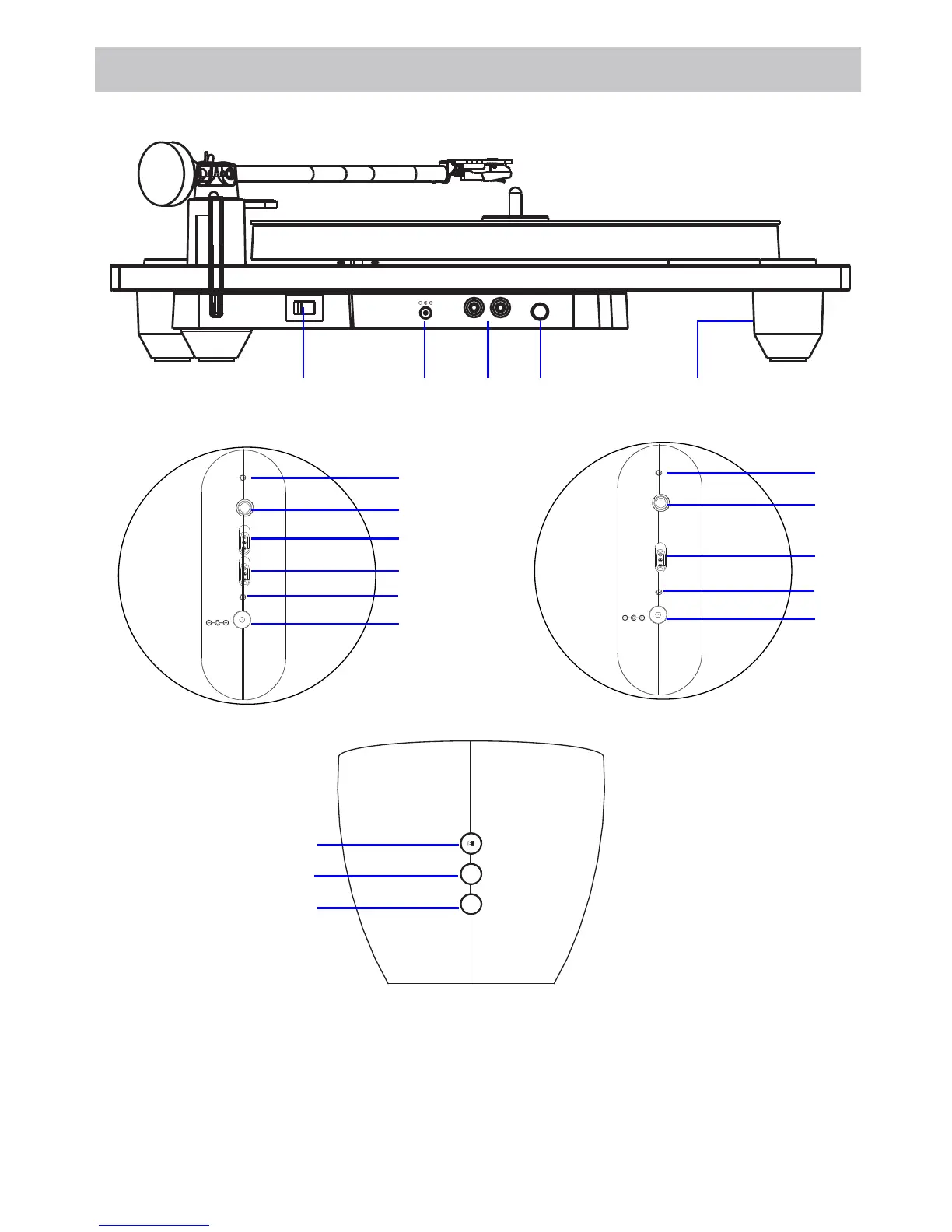

Rear View of Turntable:
PRODUCT OVERVIEW
Rear View of Main Speaker:
Top View of Main & Deputy Speaker:
9. Power ON/OFF Switch
10. DC IN Jack
11. LINE OUT Jacks
12. PAIR Button
13. Turntable feet
14. BT/LINE IN Indicator
15. LINE IN Jack
16. Power ON/OFF Switch
18. Charge Indicator
19. DC IN Jack
25. Play/Pause Button
26. Volume Up Button
27. Volume Down Button
LI NE I N
ON
DC I N
OF F
BT/
LINE IN
CHARGE
20
21
22
23
24
Rear View of Deputy Speaker:
BT
PHONO
17
20. BT/LINE IN Indicator
21. LINE IN Jack
22. Power ON/OFF Switch
23. Charge Indicator
24. DC IN Jack
17. BT/PHONO Switch
