Appendix A. Connection overview

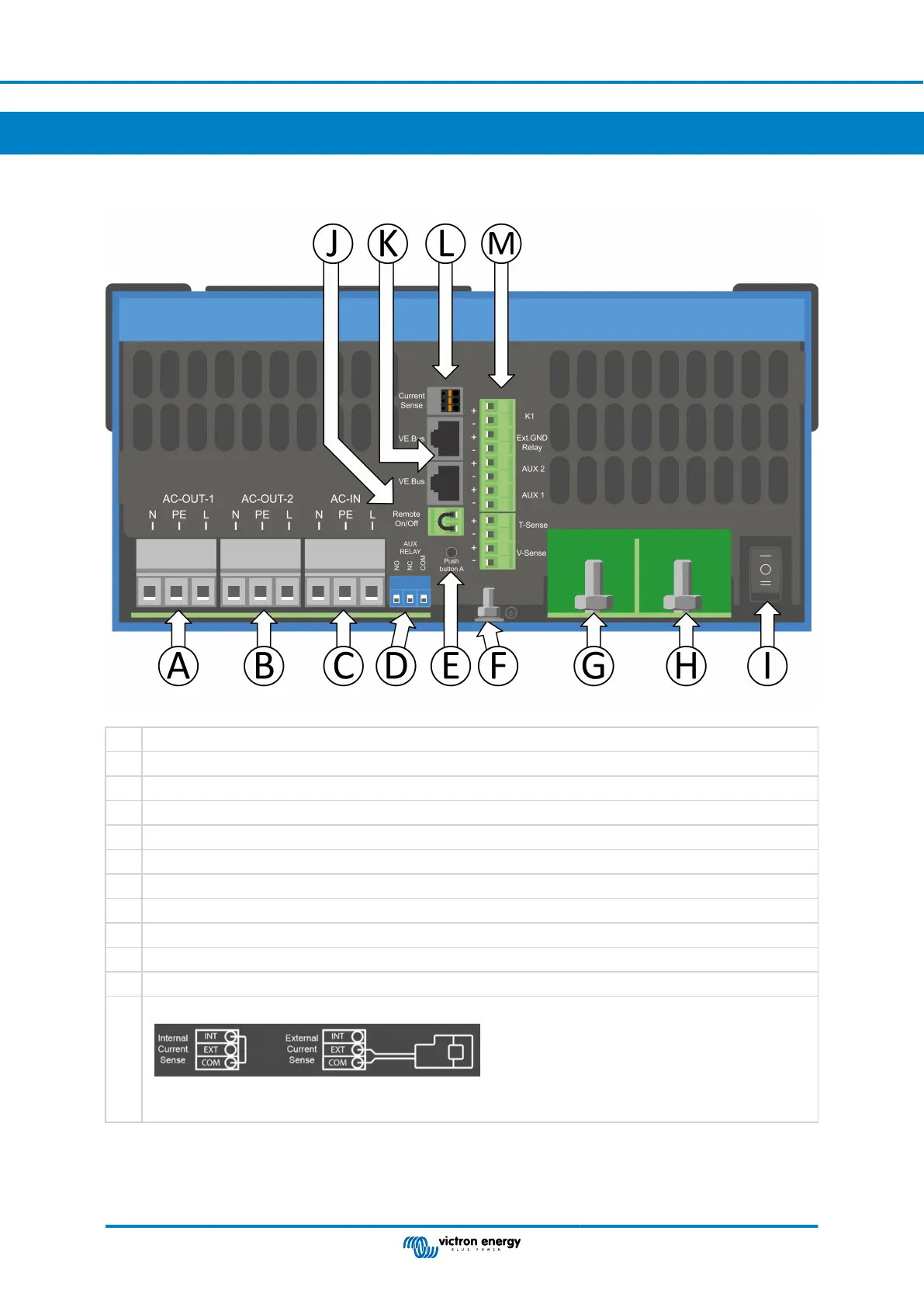

MultiPlus-II 3000VA & 5000VA
A Load connection. AC out1. Left to right: N (neutral), PE (earth/ground), L (phase)
B Load connection. AC out2. Left to right: N (neutral), PE (earth/ground), L (phase)
C AC input: Left to right: N (neutral), PE (earth/ground), L (phase)
D Alarm contact: (left to right) NO, NC, COM.
E Push button A – To perform a startup without assistants.
F Primary ground connection M6 (PE).
G M8 battery positive connection.
H M8 battery minus connection.
I switch: 1=On, 0=Off, ||=charger only
J Connector for remote switch: Short to switch “on”.
K 2x RJ45 VE-BUS connector for remote control and/or parallel / three-phase operation
L External current sensor
To connect the current sensor; remove the wire bridge between the INT and COM terminals, connect the red sensor
wire to the EXT terminal and connect the white sensor wire to the COM terminal.
