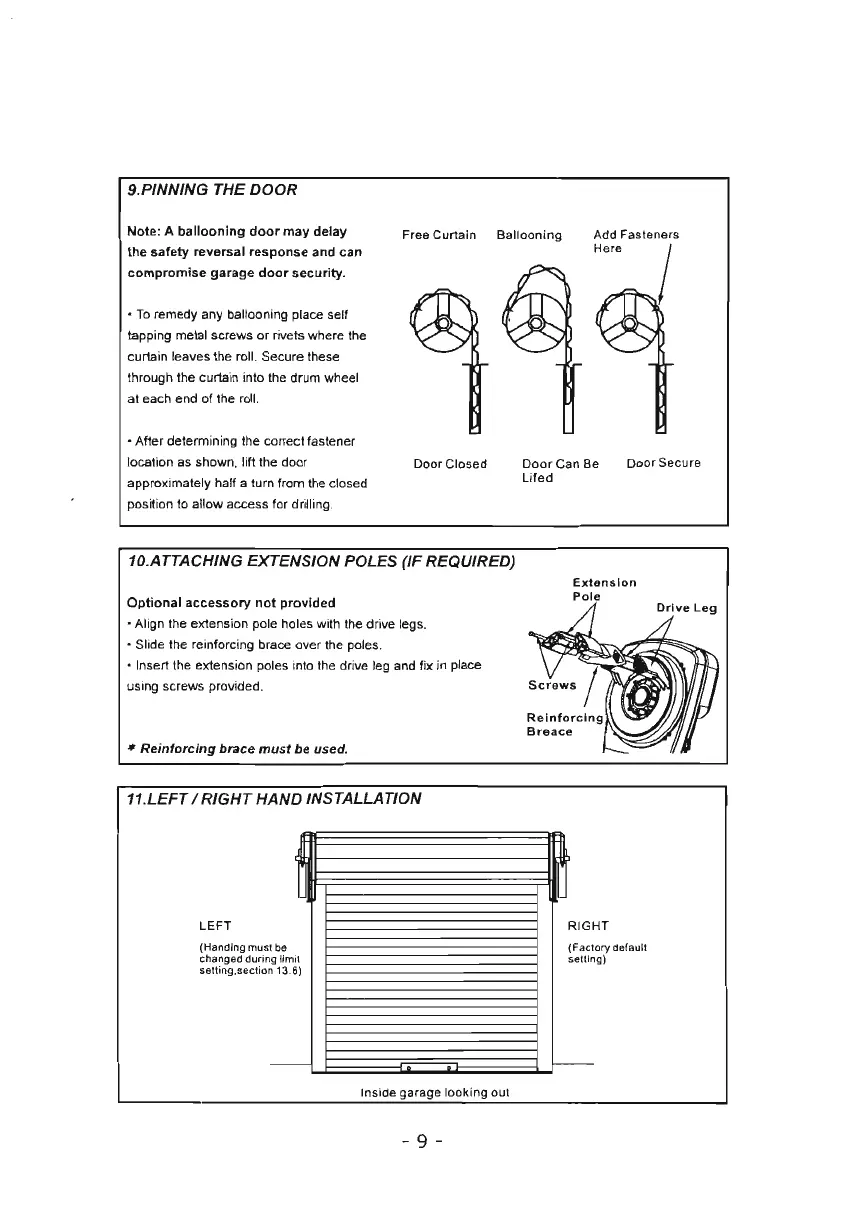

9.PINNING THE DOOR
Note: A
ballooning
door
may
delay
the
safety
reversal
response
and
can
compromise
garage
door
security
.
Free Curtain Ballooning
•
To
remedy any ballooning place self
tapping metal screws
or
rivets where the
curtain leaves the roll. Secure these
through the curtain into the drum wheel
at
each end
of
the roll.
• After determining the correct fastener
location as shown. lift the door
approximately half a turn from the closed
position
to
allow access for drilling.
Door Closed
10.ATTACHING EXTENSION POLES (IF REQUIRED)
Optional
accessory
not
provided
• Align the extension pole holes with the drive legs.
• Slide the reinforcing brace over the poles.
• Insert the extension poles into the drive leg and fix in place
using screws provided.
'"
Reinforcing
brace
must
be
used.
11.LEFT / RIGHT HAND INSTALLATION
LEFT
t be
(Handing mus
changed
durin
setting,sectio
glim
il
n 13.
6)
-
In
side garage looking out
- 9 -
DoorCan
Be
Lifed
RIG
HT
Door Secure
(Fact ory default
g)
seWn
-
