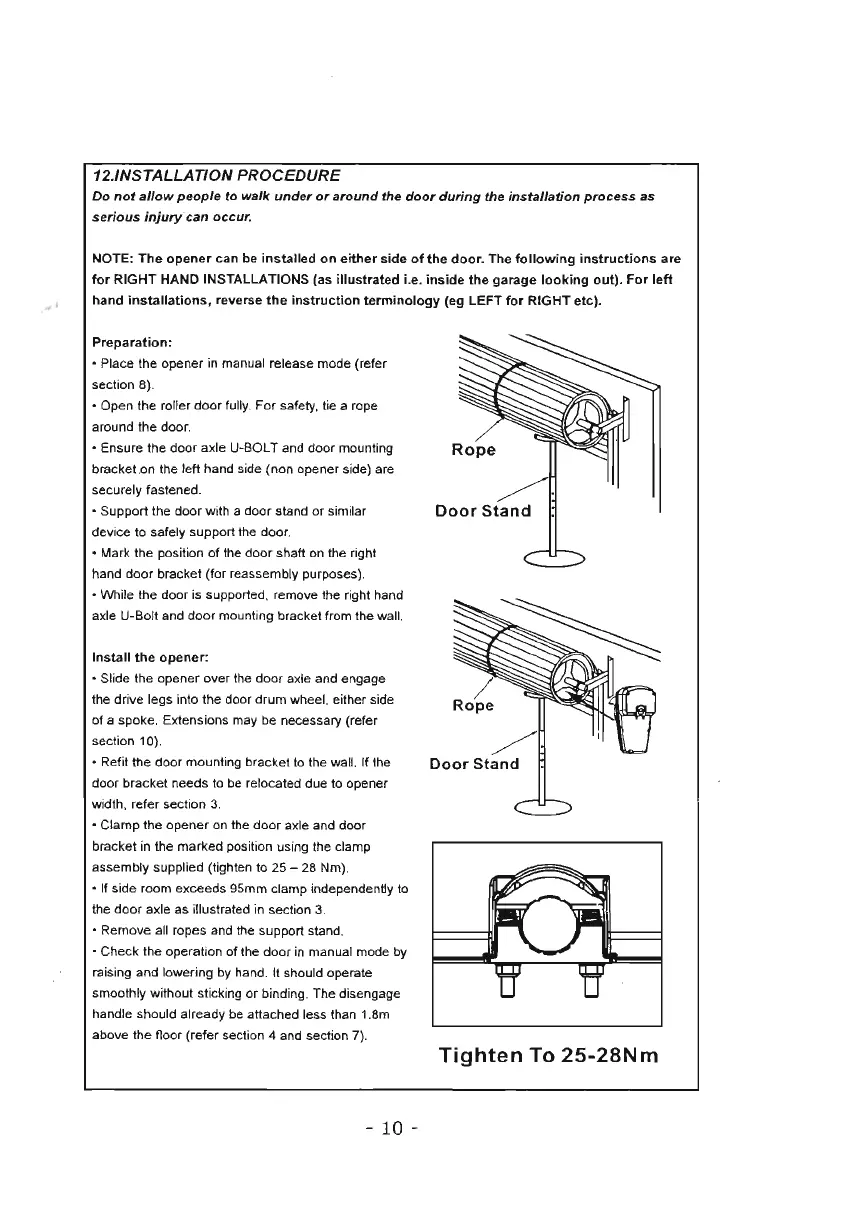

12.1NSTALLATION PROCEDURE
Do
not
allow
people
to
walk
under
or
around
the
door
during
the
installation
process
as
serious
injury
·can occur.
NOTE:
The
opener
can
be
installed
on
either
side
of
the
door.
The
following
instructions
are
for
RIGHT HAND INSTALLATIONS (as
illustrated
i.e.
inside
the
garage
looking
out).
For
left
hand
installations,
reverse
the
instruction
terminology
(eg LEFT
for
RIGHT etc).
Preparation
:
• Place the opener
in
manual release mode (refer
section 8).
• Open the roller door fully. For safety, tie a rope
around the door.
• Ensure the door axle
U-80L
T and door mounting
bracket.on the left hand side (non opener side) are
securely fastened.
• Support the door with a door stand
or
similar
device to safely support the door.
• Mark the position of the door shaft
on
the right
hand door bracket (for reassembly purposes).
• While the door is supported, remove the right hand
axle U-801t and door mounting bracket from the wall.
Install
the
opener:
• Slide the opener over
th
e door axle and engage
the drive legs into the door drum wheel, either side
of a spoke. Extensions may be necessary (refer
section 10).
• Refit the door mounting bracket
to
the wall. If the
door bracket needs
to
be
relocated due to opener
width, refer section 3.
• Clamp the opener
on
the door axle and door
bracket
in
the marked position using the clamp
assembly supplied (tighten to 25 - 28 Nm).
• If side room exceeds 95mm clamp
independen~y
to
the door axle as illustrated
in
section 3.
• Remove all ropes and the support stand.
• Check the operation of the door
in
manual mode by
raising and lowering
by
hand. It should operate
smoothly without sticking
or
binding. The disengage
handle should already
be
attached less than 1.
8m
above the floor (refer section 4 and section 7).
-
10
-
Rope
/
Door
Stand
/
Door
Stand
Tighten
To
25-28Nm
