Installation
Connection to Component
YPbPr Input
How to Connect
• Match and insert the green(Y), blue (Pb), and red(Pr) cables into
the device and TV. Next, connect the red and white (L & R) audio
cables.
*NOTE: The picture will be black & white if hooked up incorrectly.
You must hook up audio cables seperately.
How to Use
• Press the INPUT button on the TV remote. Then use the
arrow buttons to highlight component. Press ENTER.

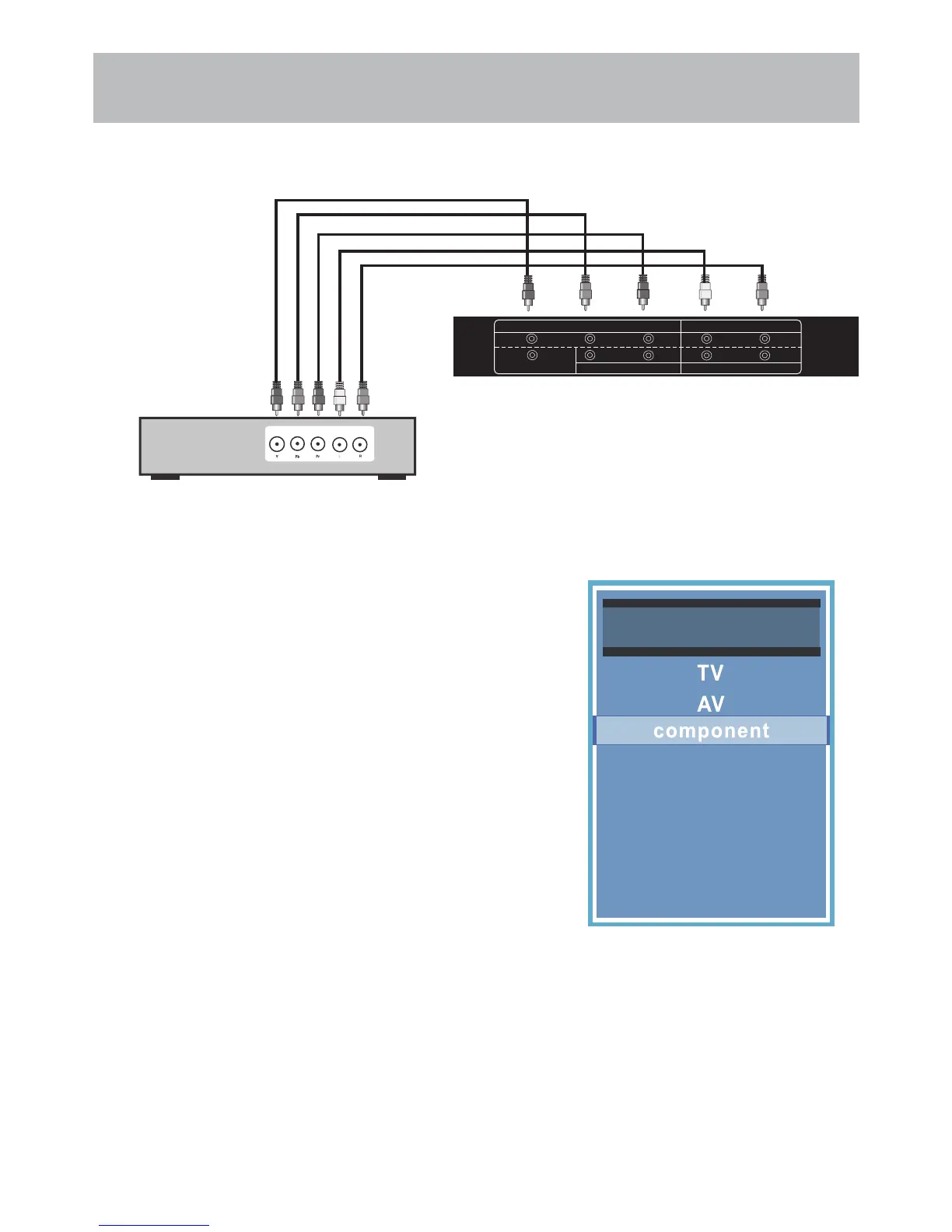

Connecting a device with a Component connection.
TV REAR PANEL
Optional Component cables
(not included)
Digital set top box, gaming console or DVD
Y
Pb/Cb
Pr/Cr
Component In
CVBS Audio In
Line Out
L R
L
R
L
R
Component Audio In
CVBS In
