ITEM HOW TO DISASSEMBLE AND ASSEMBLE DRAWINGS
11.
Untighten Brake Asm Nut and Bolt. Pull the Brake Asm
upside and remove it from Spin Motor shaft.
Remove the Brake Frame.(Fig9)
12.
Lift the Spin Motor from Base.
11) Disassembly of WASH MOTOR.
1.
Unsrew the Motor Pulley Nut and Bolt.
Lift the Motor Pulley from the Wash Motor Shaft.
2.
Unscrew three set screwsassembled to the Wash
Motor and Base.(Fig 10)
3.
Lift the Wash Motor from Base.(Fig. 10)
(Fig 9 )
(Fig 10)
PULL
NUT
BOLT
COUPLING
BOLT
MOTOR-
WASHING
NUT
SCREW
PULLEY-
MOTOR
(Fig 11)
6. SERVICE INFORMATION
18
6-2. DISASSEMBLY INFORMATION
SPIN MOTOR
and
WASH MOTOR

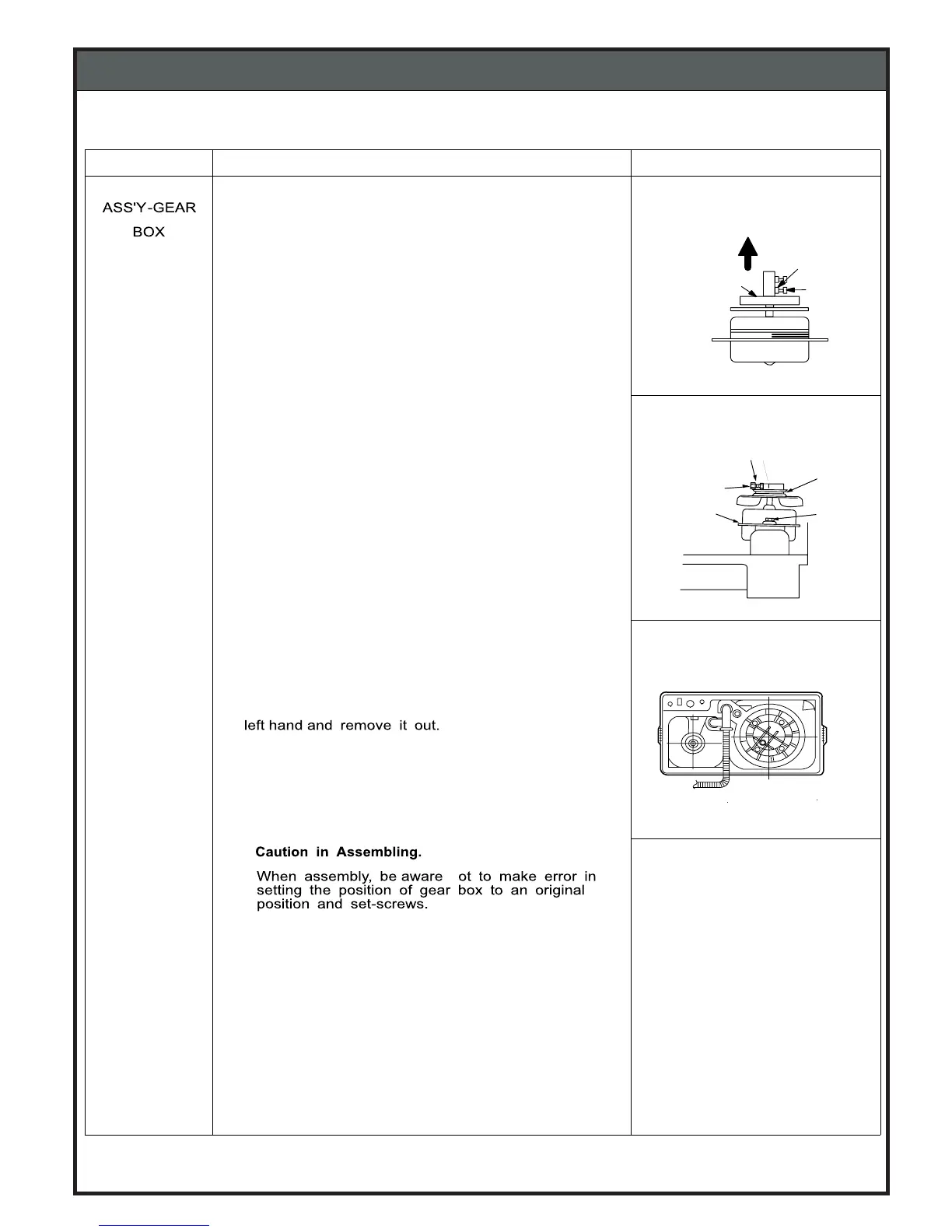

12.Separate the Gear Box asm by unscrewing
the screw from Gear Box asm and Tub.
n
Move Gear Box asm two or three times right
