6200 - 6300 - 6400 - 6700 Series
6200 - 6300 - 6400 - 6700 Series - Memory board User manual
6200 and 6300 Series Memory Board User Manual
STANDARD FUNCTIONS
Recorded pictures browse button.
Press to browse the recorded pictures. This function is also available when the videophone is in stand-by.
Menu button.
Press it to open a menu with options to adjust picture brightness, contrast, colour, time and date. This function is also
available when the videophone is in standby.
Take a picture button.
During a conversation or when its ringing, press this button to capture a picture.
Automatic capture function button.
Press it to enable the function (the relevant LED turns ON) or press it again (the relevant LED turns OFF) to disable the
function. When the function is enabled, the videophone records a picture each time it is called or recalled. This function
is also available when the videophone is in stand-by.
Automatic capture function status LED.
If the LED is ON the function is enabled. When the LED ashes, it indicates that there is a new picture stored in the vid-
eophone memory.
The function of the buttons is contextual to the active menu, the LED shows the status of the automatic capture function (illumi-
nated = ON, not illuminated = OFF) and indicates new photos recorded when it ashes. The ashing for the new photos stops when
you browse the recorded photos and the LED reverts to showing the status of the automatic capture function.

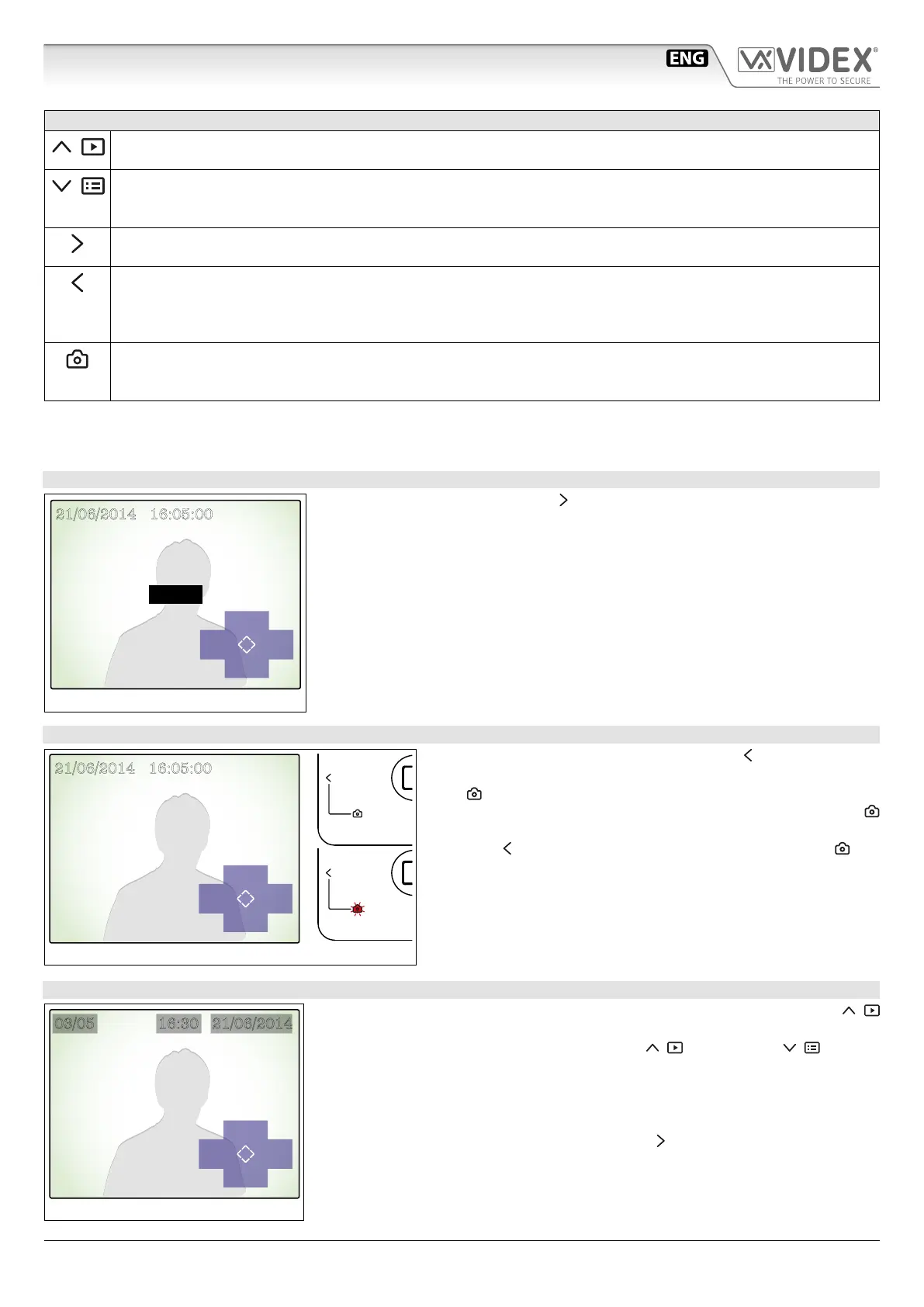

HOW TO RECORD A PICTURE MANUALLY
During normal operation press the
(Photo) button to instantly take a picture.
During the recording, the display shows the message “REC” in the middle of the screen
(Fig. 5).
HOW TO ENABLE AUTOMATIC PHOTO RECORDING
From the status shown in Fig. 6, press the button
(Auto) to enable the
automatic capture. A picture will be taken for each call or camera recall.
The LED will turn ON to indicate that the function is enabled. If a
new picture is stored by the automatic capture function, the LED
will ash until the image is viewed.
Press the (Auto) button again to disable the function, The LED
will turn OFF.
This function is also available when in standby.
HOW TO BROWSE STORED PICTURES
During normal operation or with the videophone in stand-by, press the button
(Memory) to enter the browsing mode (Fig. 7).
Once you are in browsing mode, use the buttons (Previous) and (Next) to
browse forward or backward through the stored pictures. At the top of the screen an
index number of the picture is shown with the time and date of recording. The index
shows both the number of the current picture and the total number of pictures stored
(max 100).
To go back and exit from browsing mode press the button (Stop Quit).
Memory
Menu
Auto Photo
•
REC
21/06/2014 16:05:00
Fig. 5
Memory
Menu
Auto Photo
21/06/2014 16:05:00
Fig. 6
Previous
Next
Del
Stop
Quit
03/05 16:30 21/06/2014
Fig. 7
