7
Installing the flow temperature sensor (contact temperature sensor)
■
Fit the flow temperature sensor to the heating flow
pipe immediately downstream of the heating circuit
pump in the flow direction.
■
With plastic pipes, mount the sensor against an inter-
mediate metal pipe section.
■
Clean the contact area on the pipe down to bare
metal.
■
Heat conducting paste is not required.
■
Do not thermally insulate the temperature sensor.
1.
2.
4.
3.
100

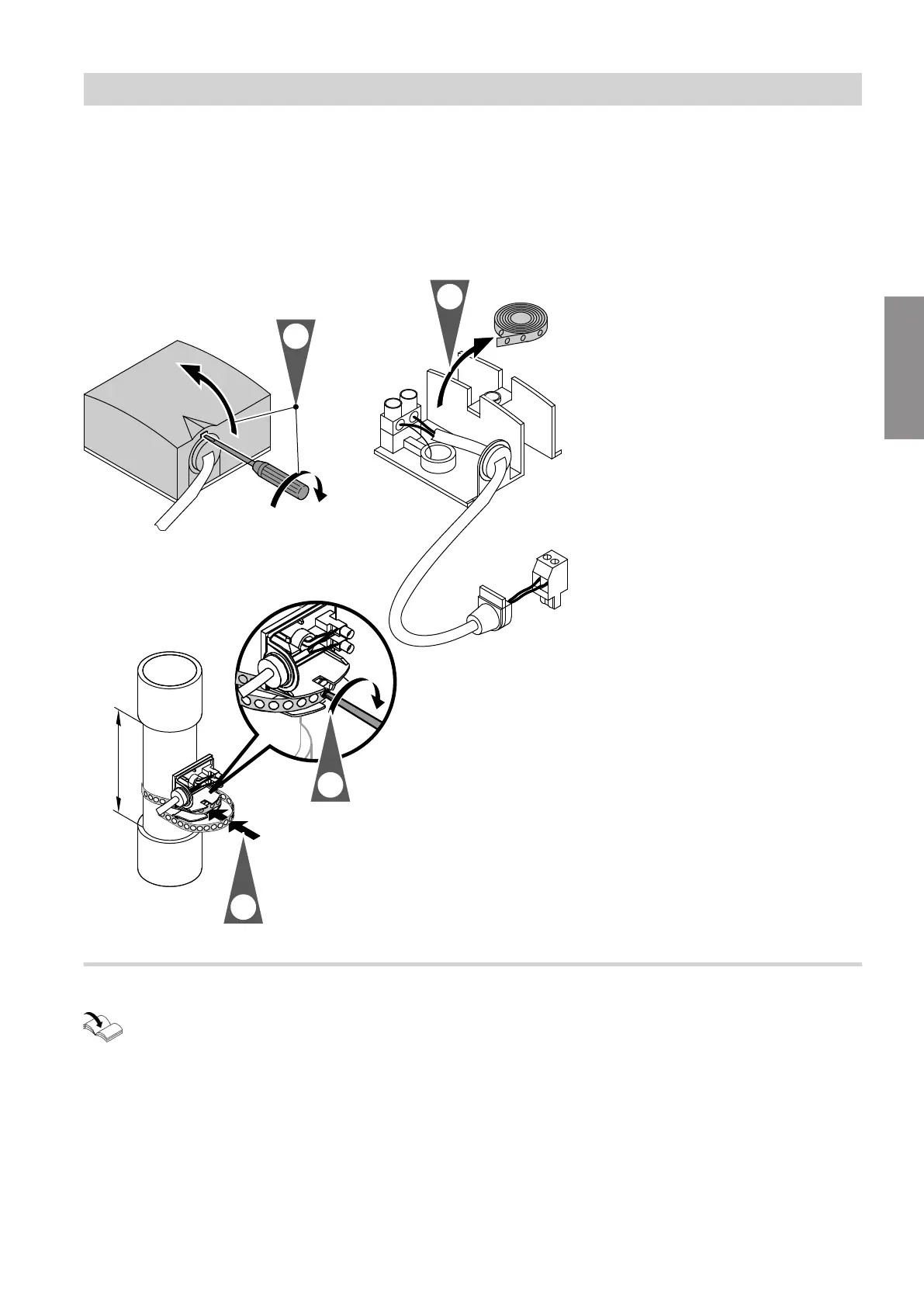

Fig. 3
Installing the flow temperature sensor on the Divicon heating circuit distributor
Installation instructions for Divicon heating cir-
cuit distributor
Installation sequence
Mounting the temperature sensor
5838001
Installation
