9

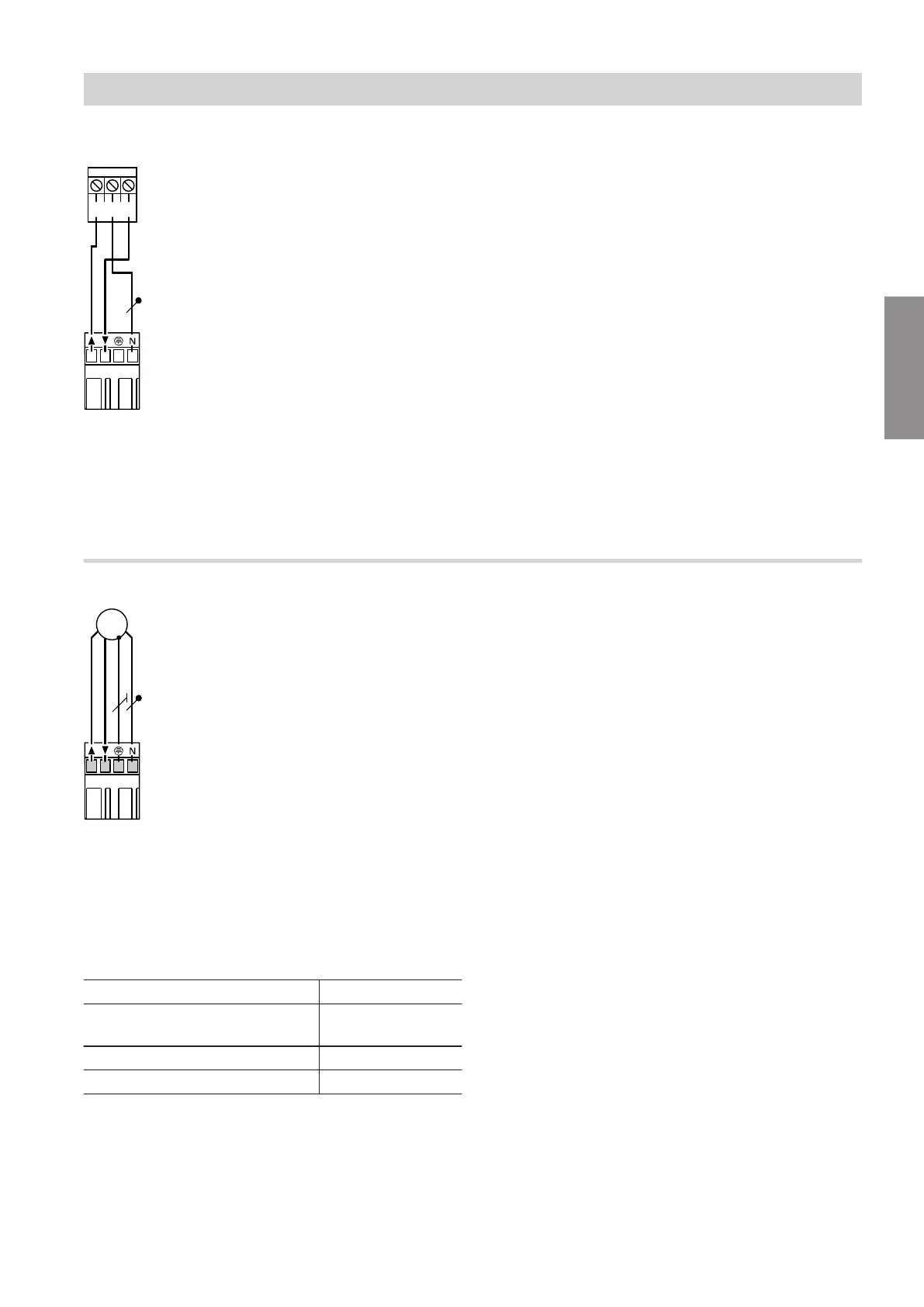

Mixer motor
A
2
3
1
gS
Fig. 5
A
Plug on mixer motor
gS
Plug on mixer extension kit
| Mixer open
~ Mixer close
Connect the mixer motor in accordance with the dia-
gram in the wall mounting base of the extension kit.
Never interchange wires.
Mixer motors without plug or on-site mixer motors
M
1~
A
gS
Fig. 6
A
Mixer motor
gS
Plug on mixer extension kit
| Mixer open
~ Mixer close
Connect the mixer motor in accordance with the dia-
gram in the wall mounting base of the extension kit.
Never interchange wires.
The mixer motor must meet the following criteria:
Rated voltage 230 V∼
Rated breaking capacity of the
relay output
0.1 A
Runtime for 90º∢ 120 s
Rotational direction Can be changed
Installation sequence
Connecting the mixer motor (cont.)
5838001
Installation
