Viessmann Vitocell 100-E - Installation Sequence; Installing the Vitocell Unit and Equipotential Bonding

11
1.
3.
4. 2.
8.
5.
7.
6.

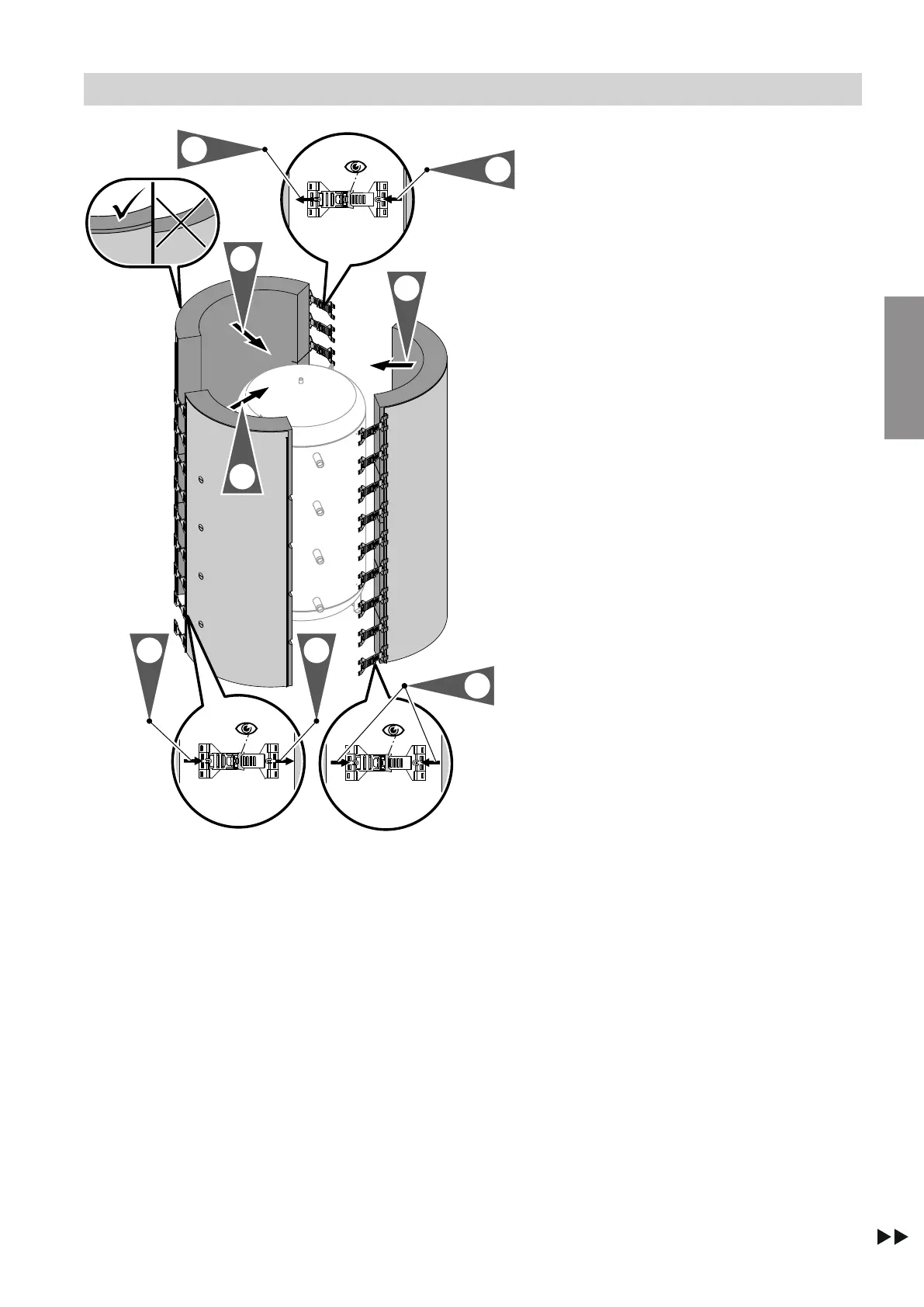

Fig. 7
1. Push the thermal insulation jacket (central section)
between the cylinder connections and fit to the cyl-
inder body.
2. Attach clip fasteners to the left edge of the thermal
insulation jacket.
3. Fit the 2nd thermal insulation jacket to the cylinder
body.
4. Connect the two thermal insulation jackets together
using the clip fasteners.
Note
Leave the clip fasteners in the first notch.
5. Attach clip fasteners to the left edge of the 2nd ther-
mal insulation jacket.
6. Fit the next thermal insulation jacket to the cylinder
body.
7. Connect the two thermal insulation jackets together
using the clip fasteners.
Note
Leave the clip fasteners in the first notch.
8. Attach clip fasteners to the left edge of the last ther-
mal insulation jacket. Connect the first and last ther-
mal insulation jackets together using the clip fasten-
ers.
