Viessmann Vitocell 100-E - Fitting Vitotrans System (Type SVPA)

15

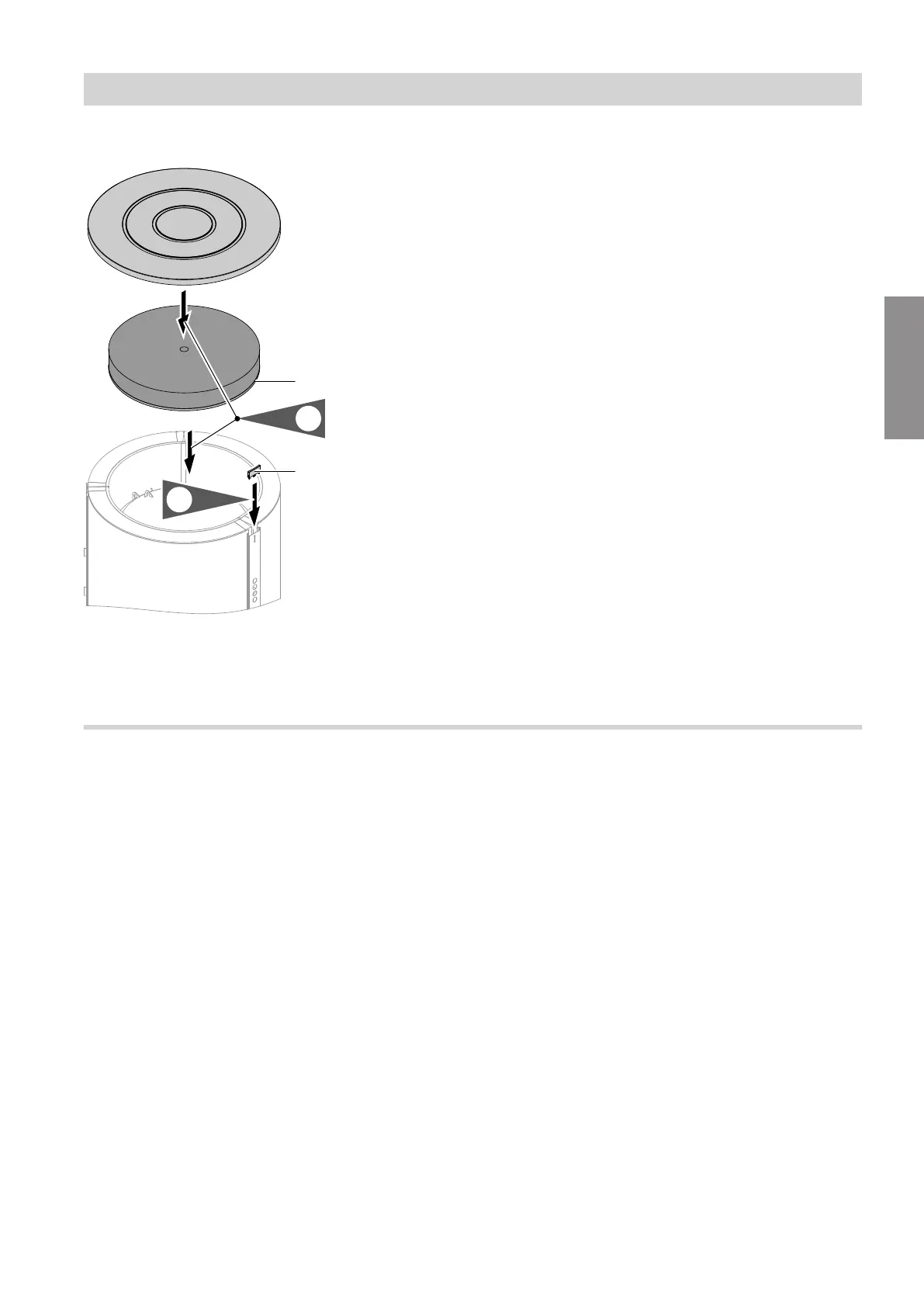

Fitting the cover (3-part thermal insulation jacket)
2.
1.
A
B
Fig. 11
A
Viessmann logo
B
Fleece side of the insulation at the bottom
Fitting the cylinder temperature sensor
■
The cylinder temperature sensor is supplied in the
control unit pack.
■
If a thermometer sensor is already fitted inside the
sensor well, be careful not to kink the sensor lead.
Installation sequence
Installation (cont.)
5694 385 GB
Installation
