Viessmann Vitocell 100-E - Fitting the Thermometer Sensor (if Supplied); Fitting the 2-Part Thermal Insulation Jacket

8
Fitting the thermometer sensor (if supplied)
5.
4.
3.
6.
2.
1.

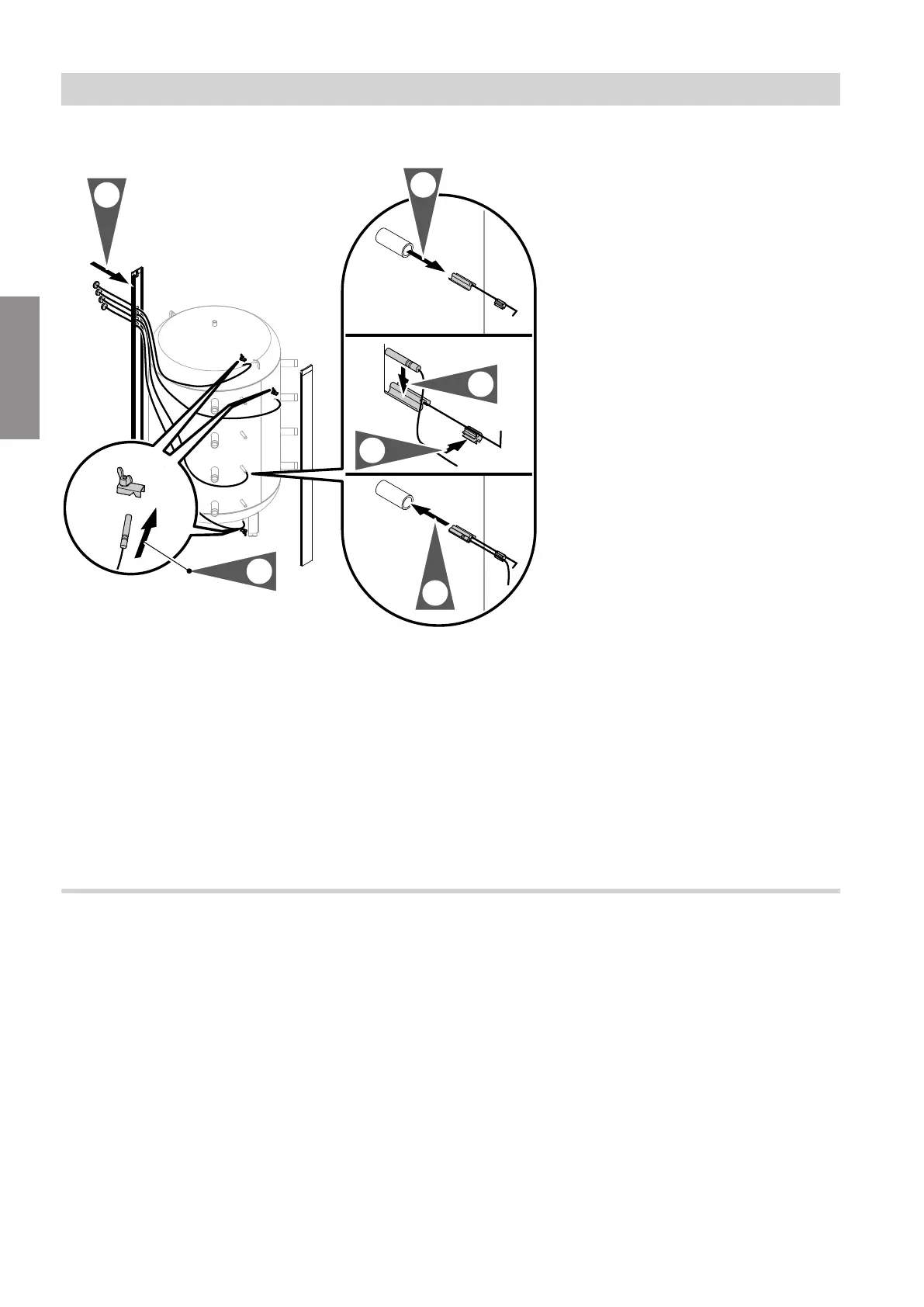

Fig. 4
1. Guide the thermometer sensor through the cover
strip and insert the thermometer.
2. Insert 3 thermometer sensors into the clamping
bracket as far as they will go and tighten the wing
nut.
Steps 3 to 6 only for thermometer sensor TR 3:
3.
Pull the sensor retainer from the sensor well.
4. Position the sensor on the outside of the sensor
retainer contact spring so that it is flush with the
front of the spring.
Note
Never wrap insulating tape around the thermometer
sensor.
5. Secure the thermometer sensor lead.
6. Insert the sensor retainer.
Fitting the 2-part thermal insulation jacket
Note
■
2 people are required for the following work.
■
Ensure that no fleece remnants enter the cylinder
through the cylinder connections.
Clip fasteners on each cylinder side:
1500 l: 6 pce
2000 l: 9 pce
Installation sequence
Installation (cont.)
5694 385 GB
Installation
