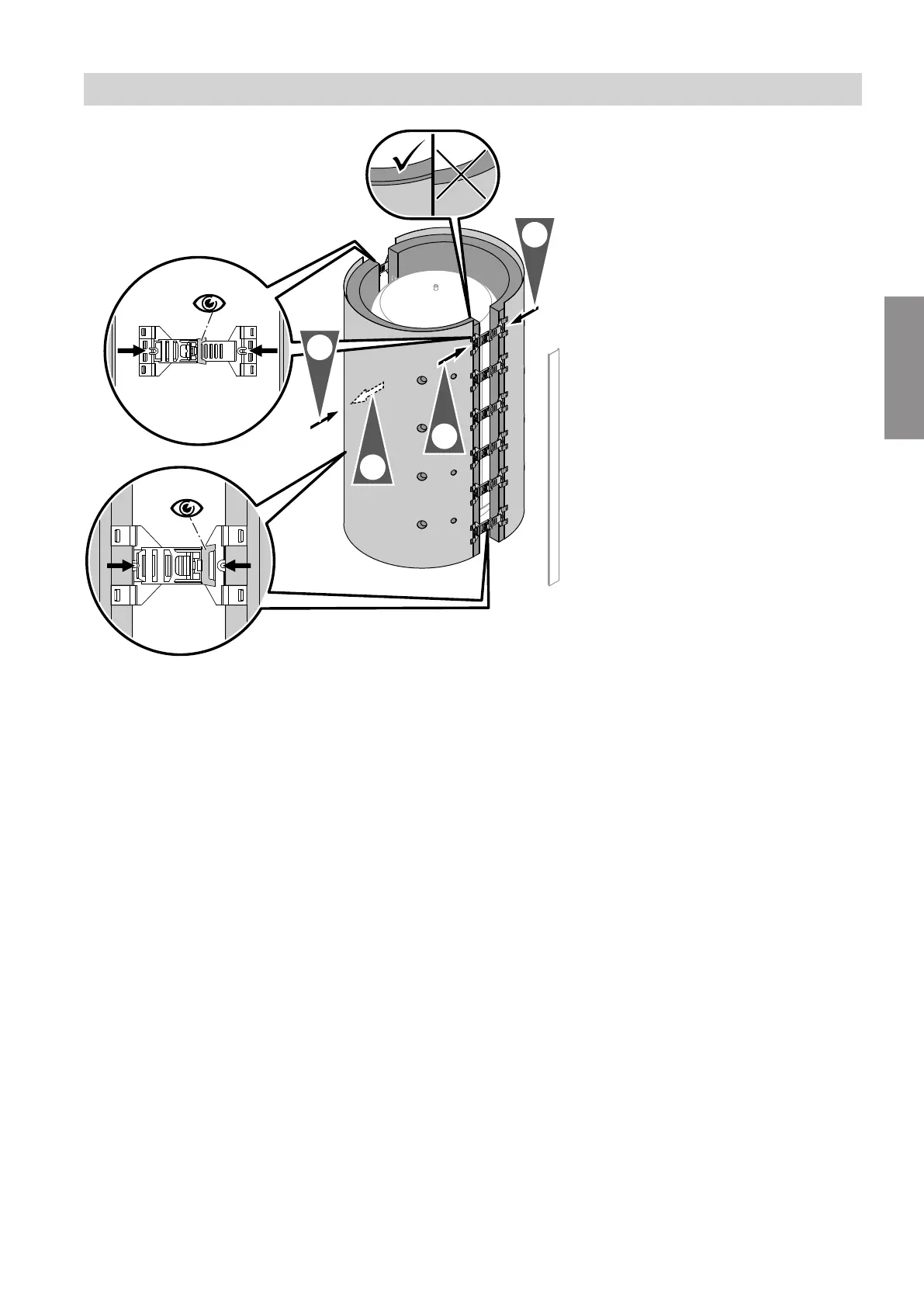

Fig. 5
1. At the back of the cylinder: Attach clip fasteners to
the edges of the right and left sections of the ther-
mal insulation jacket. Place the thermal insulation
jacket around the cylinder body.
Note
Leave the clip fasteners in the first notch.
2. At the front of the cylinder: Attach clip fasteners to
the edges of the right and left sections of the ther-
mal insulation jacket.
3. Push the clip fasteners at the back of the cylinder
as close together as possible.
4. Push the clip fasteners at the front of the cylinder
as close together as possible.
