Fitting the cover strips (2-part thermal insulation jacket)
2.
3.
A
4.
1.

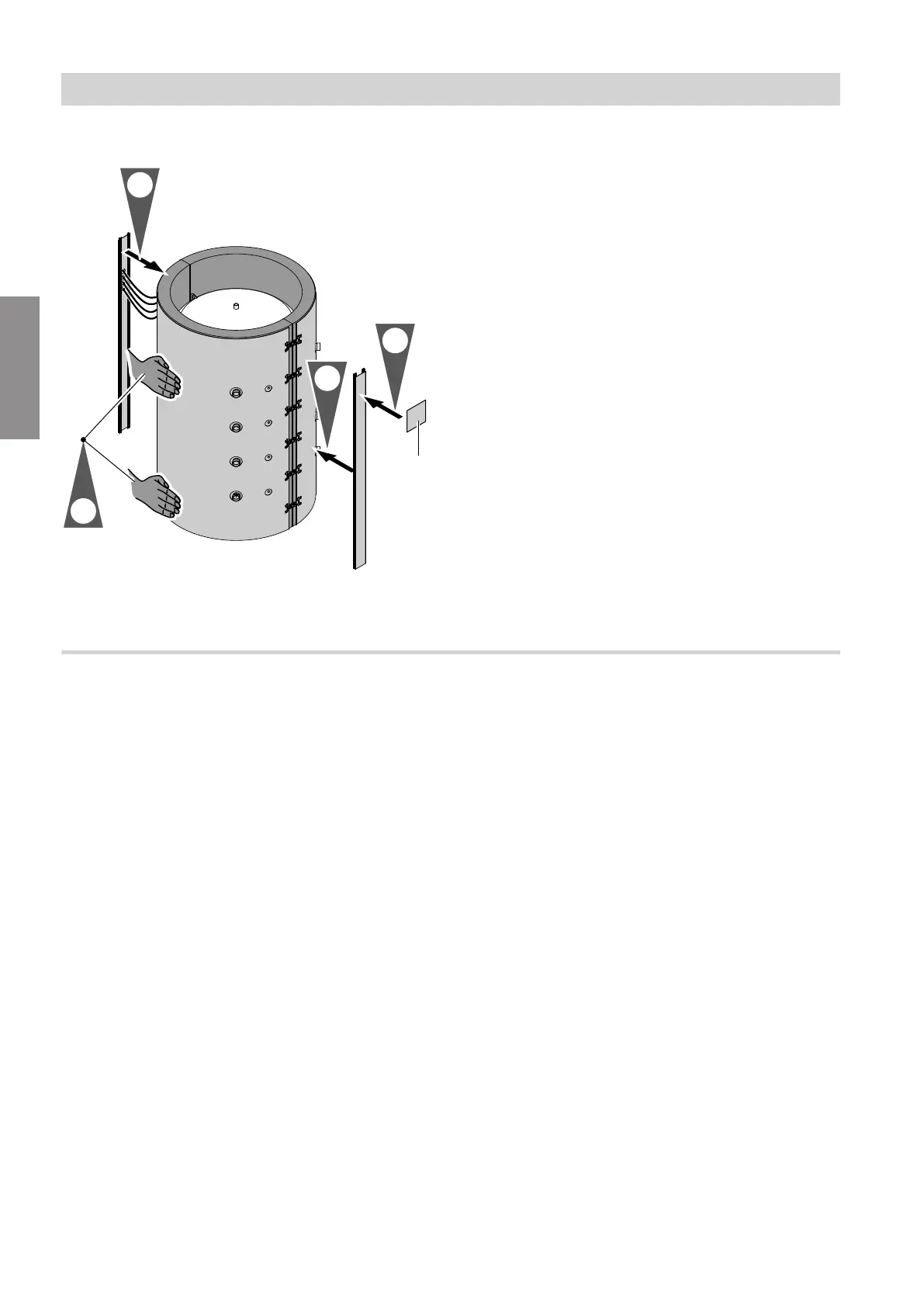

Fig. 6
A
Type plate
Fit the thermal insulation jacket evenly around the cyl-
inder body by patting it.
Fitting the 3-part thermal insulation jacket
Note
■
2 people are required for the following work.
■
Ensure that no fleece remnants enter the cylinder
through the cylinder connections.
Clip fasteners on each cylinder side:
1500 l: 6 pce
2000 l: 9 pce
Installation sequence
