Viessmann Vitoclima 200-C - OC211 to OC215 Unit Layouts

A ON/OFF switch
B Programming unit
C Phase monitor (only for 400 V ver-
sion)
D Automatic air vent valve
E Diaphragm expansion vessel
F Fill & drain valve
G Service valve, low pressure side
H Service valve, high pressure side

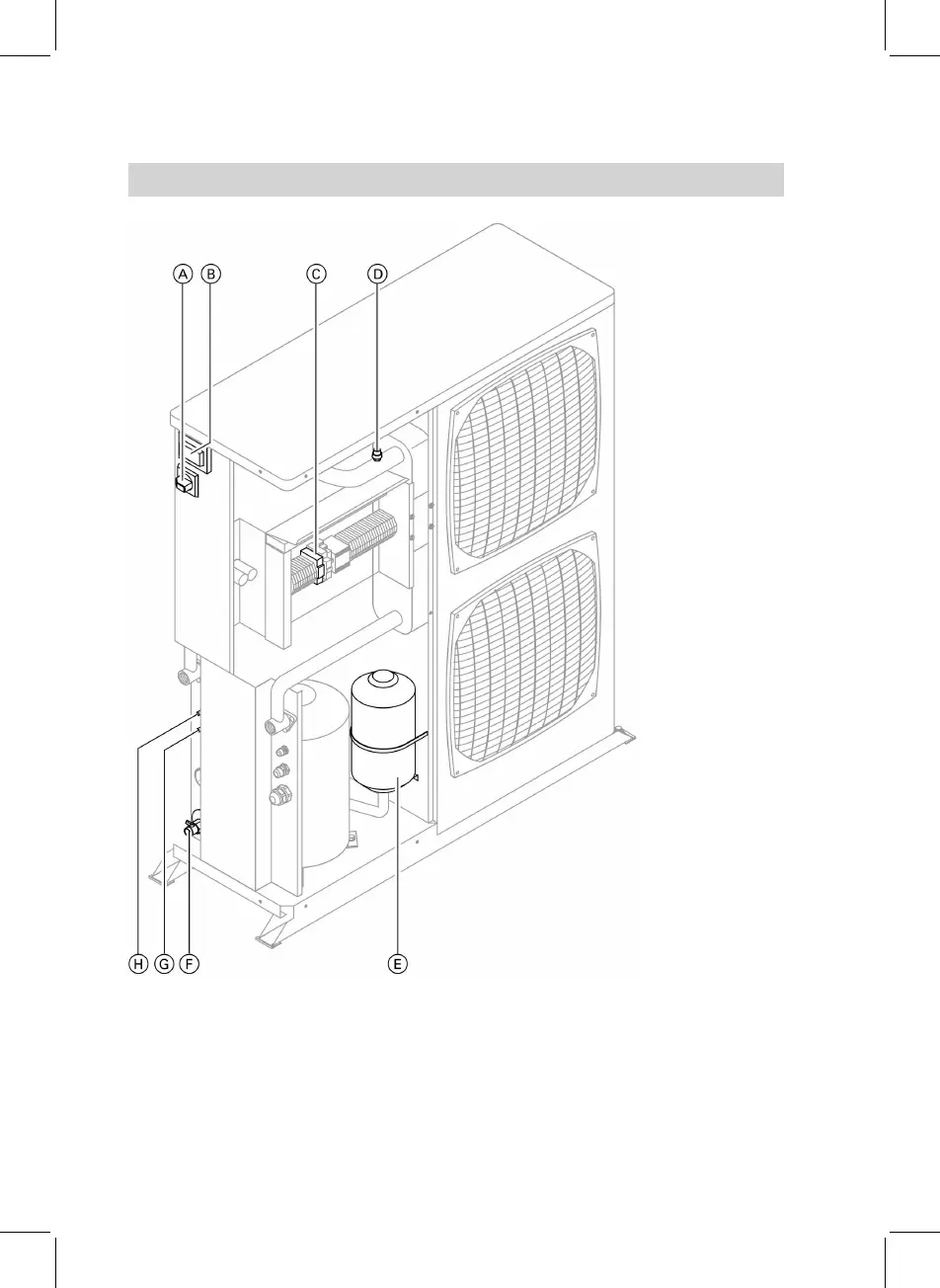

Unit layout type OC211 to OC215
8
Unit layouts
5692 696 GB
