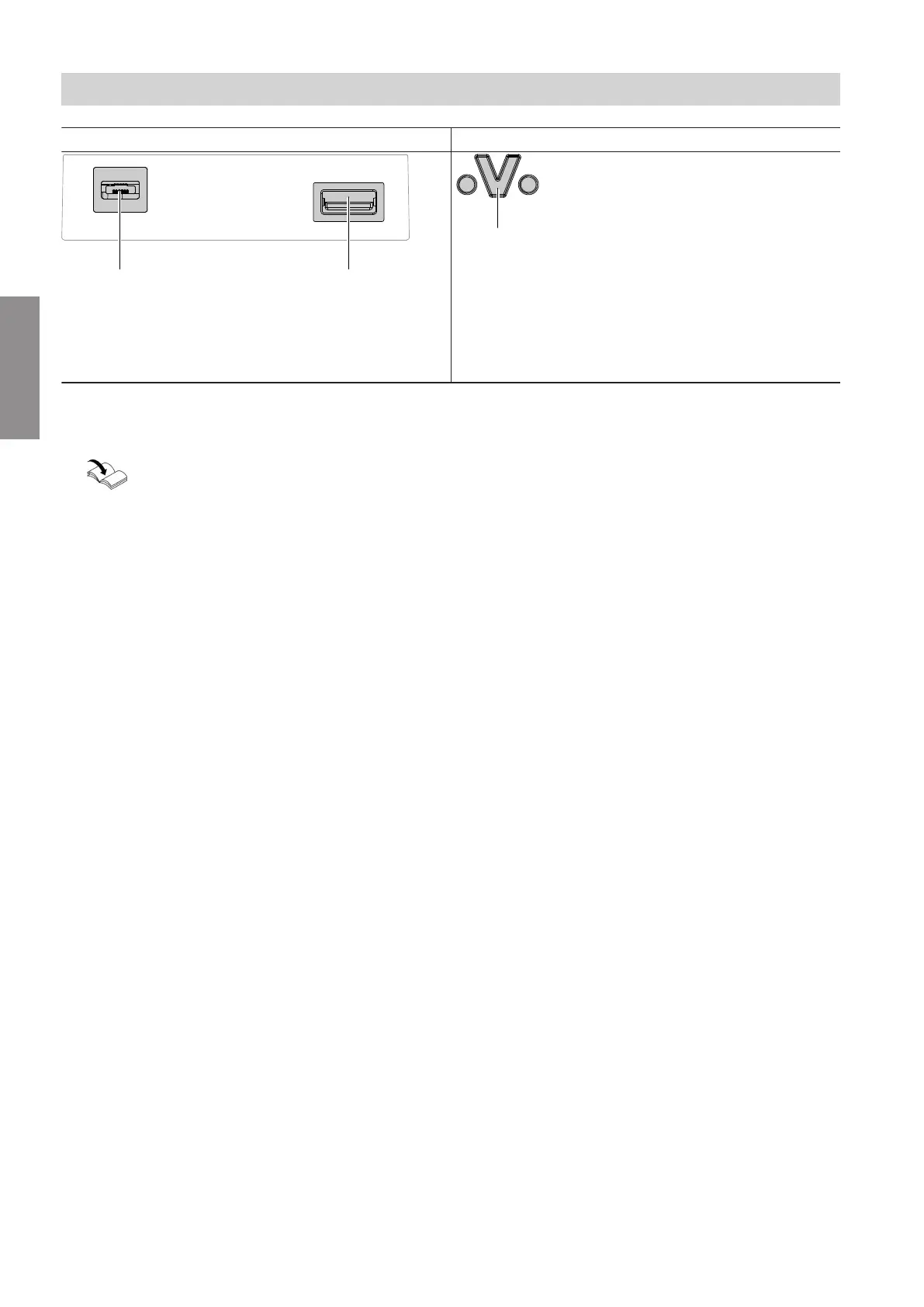

At the Vitoconnect 100, view from below At the control unit of the heat generator
A B
A
Micro USB for power supply from plug-in power
supply unit
B
For connecting lead Optolink/USB
A
A
For connecting lead Optolink/USB
1. Use the Optolink/USB connecting lead to connect
the Vitoconnect 100 to the heat generator.
Cable routing inside the heat generator:
Heat generator documentation
2. Insert the plug-in power supply unit with connecting
cable into a standard socket.
Electrical connections
Electrical connections
5785 665 GB
Installation
