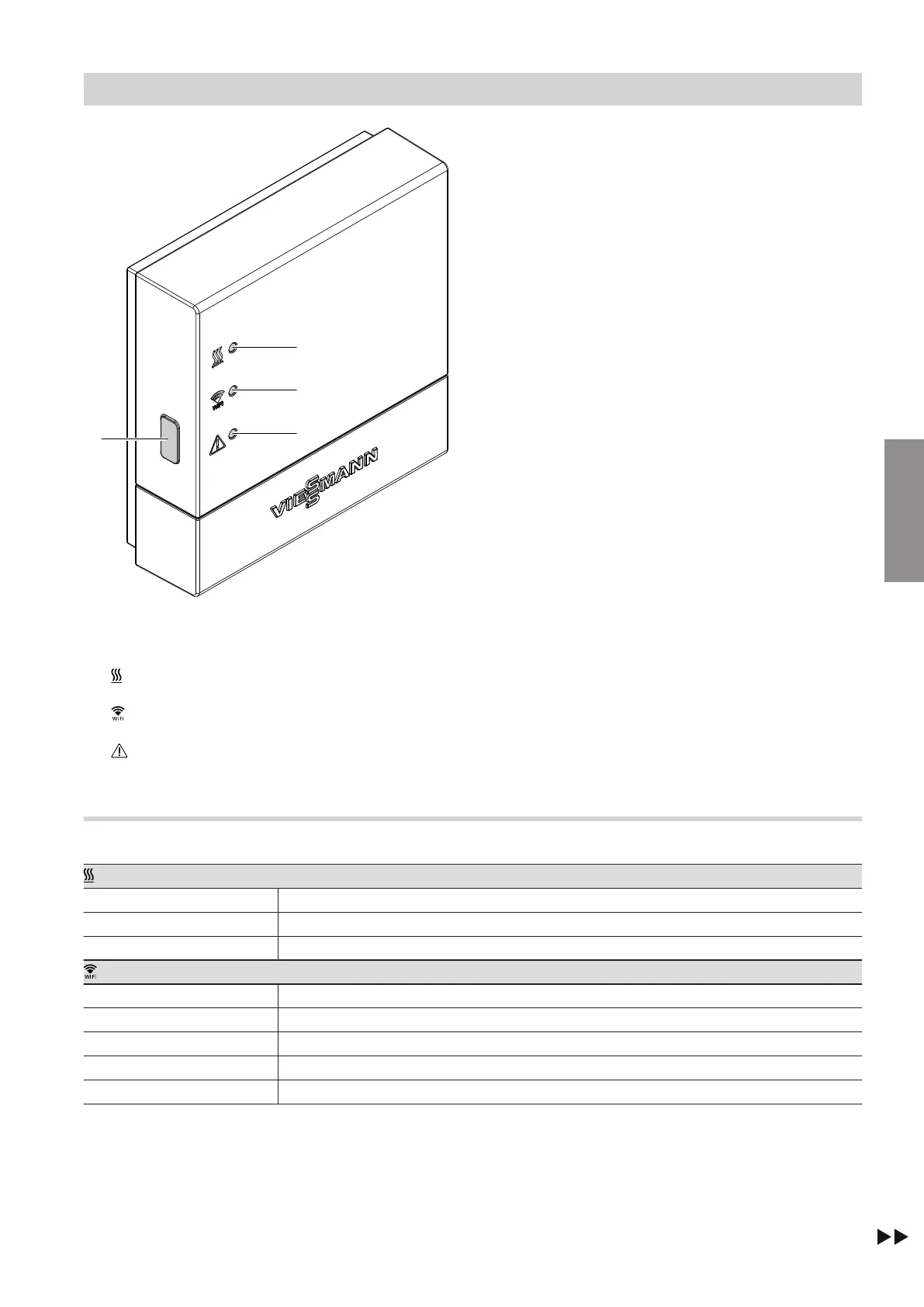

Fig. 4
A
Reset button
1
LED indicates status of communication with heat
generator.
2
LED indicates status of communication with
WLAN and Viessmann server.
3
LED indicates system functions (access point
mode, offline mode, updates, faults).
Interpreting the LED indicators
LED – Communication with the heat generator
Flashes yellow. Connection of Vitoconnect 100 to heat generator being established
Illuminates green. Connection of Vitoconnect 100 to heat generator successfully established
Flashes red. No connection to heat generator, see page 16.
LED – Communication with the Viessmann server
Flashes yellow. Connection of Vitoconnect 100 to WLAN router being established
Illuminates yellow. Connection of Vitoconnect 100 to WLAN router successfully established
Flashes green. Connection of Vitoconnect 100 to Viessmann server being established
Illuminates green. Connection of Vitoconnect 100 to Viessmann server successfully established
Flashes red. No connection to the internet, see page 16.
