Please note
If the connection values of the power supply unit
do not match the power consumption of the Vito-
gate, this can lead to interruption of operations
and damage to the power supply unit or the
Vitogate.
Only use the supplied plug-in power supply unit.
1. Insert the plug for the low voltage side of the sup-
plied plug-in power supply unit into connection "1".
2. Close the Vitogate 200, type KNX.
3. For connecting the plug-in power supply unit, see
chapter "Commissioning".

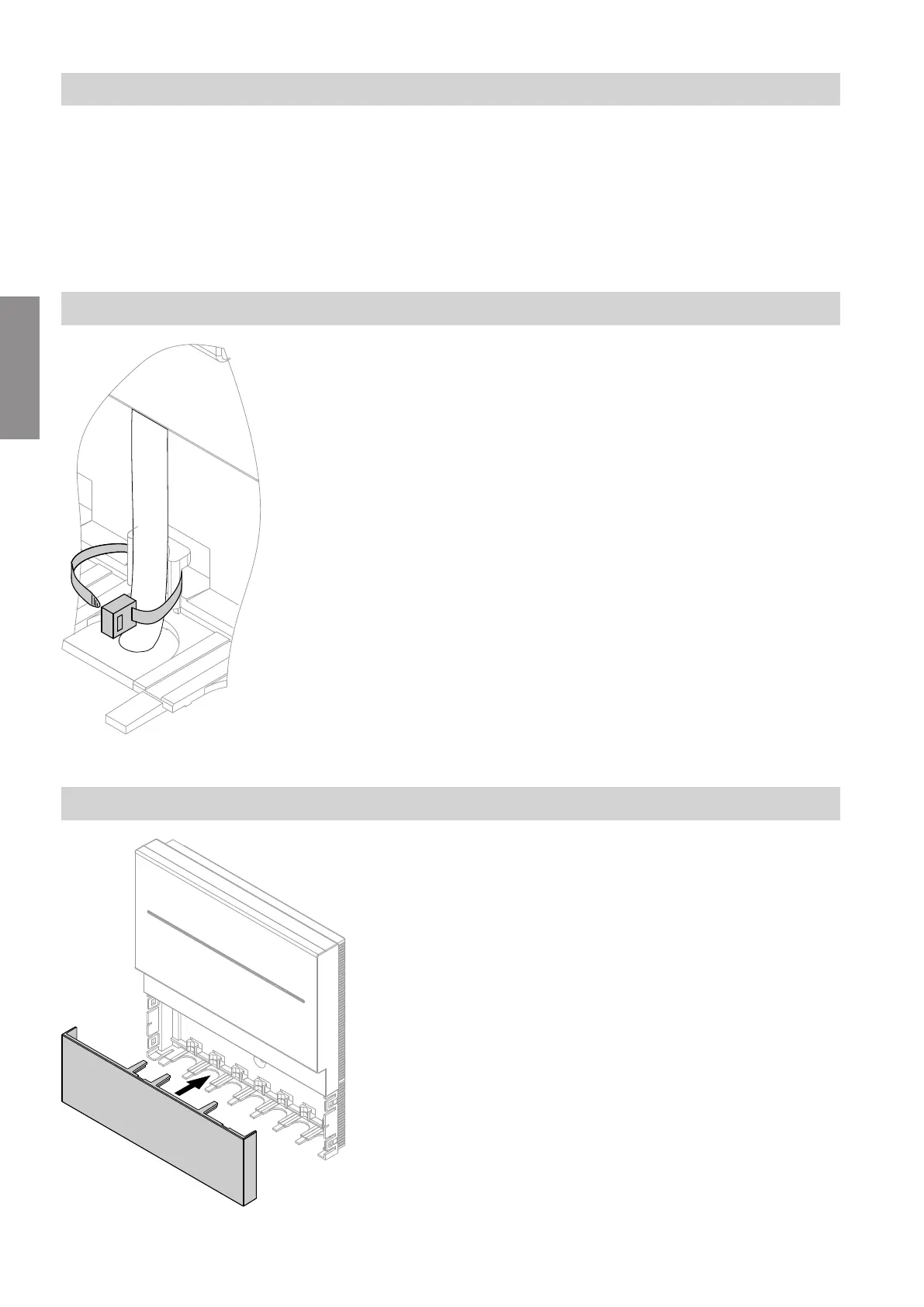

Applying strain relief to all cables
Fig. 5
Closing the wiring chamber
Fig. 6
Installation sequence
Connecting the power supply
5673180
