Please note
Unfavourable ambient conditions can lead to
malfunctions and appliance damage.
■
The installation location must be dry and free
from the risk of frost.
■
Ensure ambient temperatures between 0 and
40 °C.
Note
When selecting the installation location, bear in mind
the length of the connecting cables in the standard
delivery.
Connecting cables Length
KNX TP connecting cable (on site)
Recommended cable:
KNX TP YCYM 2 x 2 x 0.8 mm
2
■
In a line:
Max. 1000 m
■
Between a power supply and the last subscriber:
Max. 350 m
■
Between 2 subscribers and a line:
Max. 700 m
■
Between 2 power supplies:
Min. 200 m
Ethernet connecting cable (KNXnet/IP, on site) —
LON cable (standard delivery) 7 m
Extension of the LON cable:
Possible with accessories; see communication module
installation instructions
Max. 900 m
Connecting cable for plug-in power supply unit (stand-
ard delivery)
Approx. 2.0 m

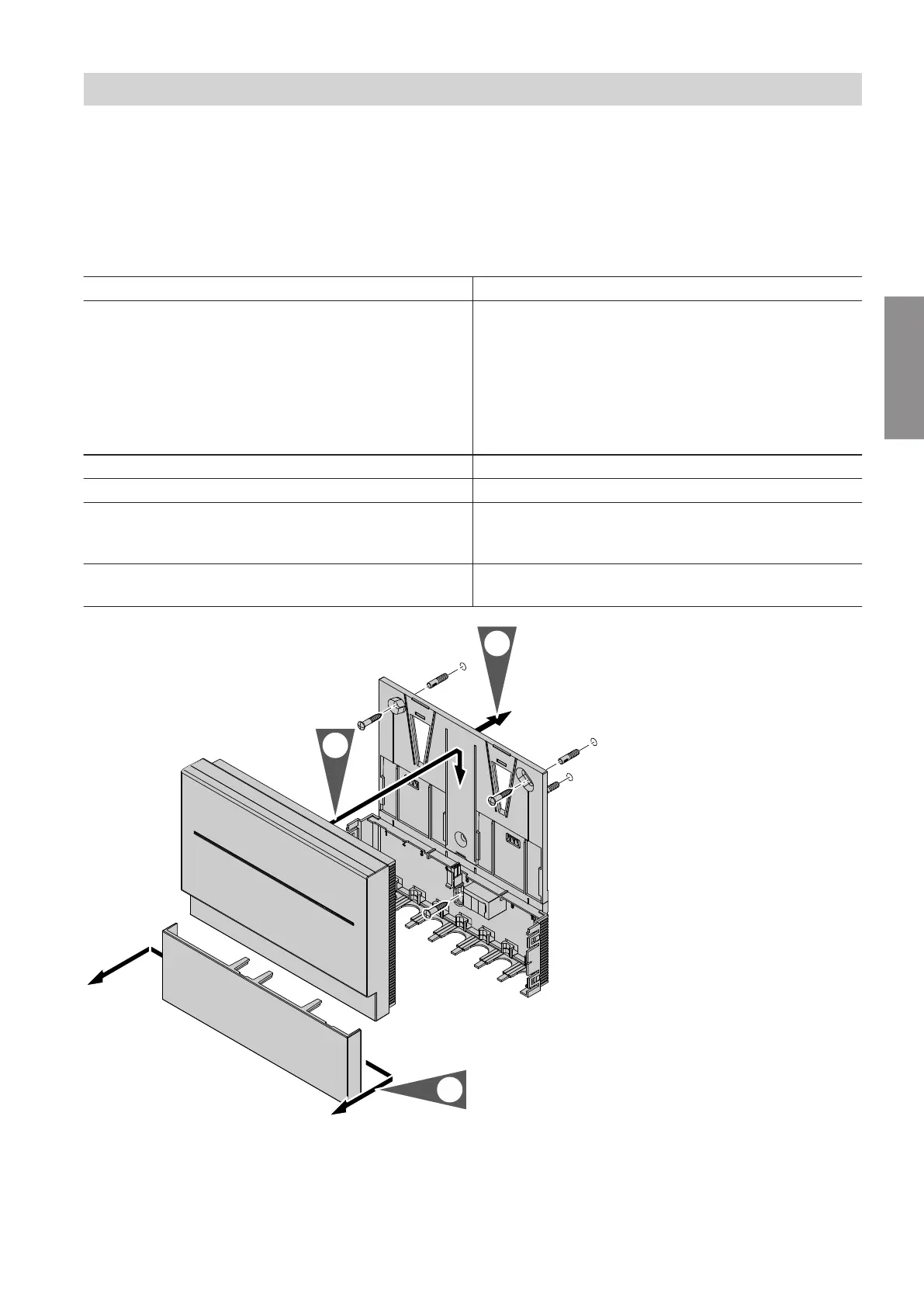

Fig. 1
Installation sequence
Installing the Vitogate 200, type KNX
5673180
