System design 5

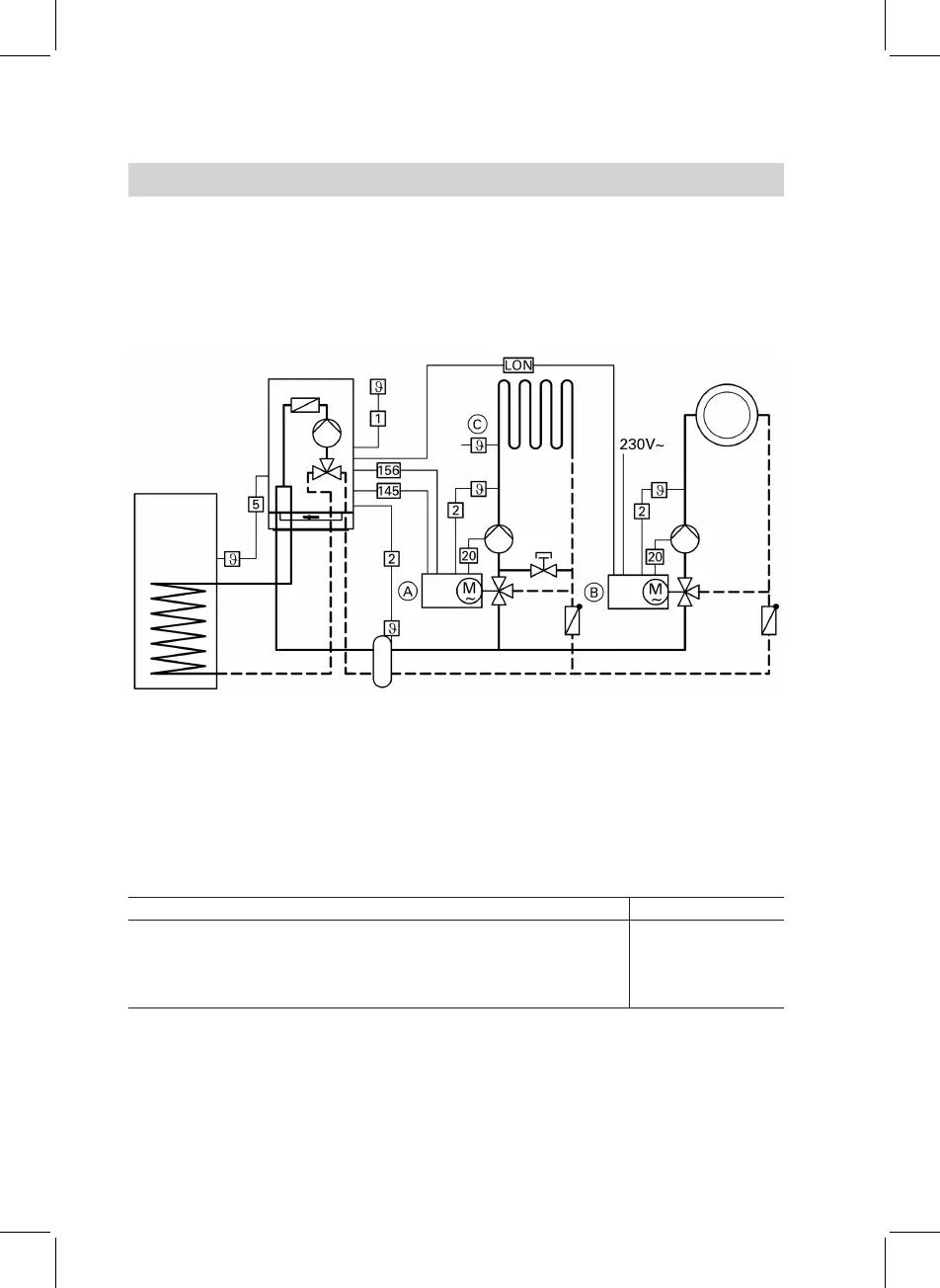

With/without DHW heating with one heating circuit with mixer M2 (with
extension kit), one heating circuit with mixer (with Vitotronic 050) and low
loss header
! Outside temperature sensor
? Flow temperature sensor
% Cylinder temperature sensor
sÖ Heating circuit pump
aVG KM BUS
aBH Power supply (extension kit)
A Extension kit for a heating circuit
with mixer
B Vitotronic 050
C Maximum thermostat (underfloor
heating)
Required coding Address
One heating circuit with mixer with extension kit for mixer
and one heating circuit with mixer with the Vitotronic 050
&
with DHW cylinder 00:4
&
without DHW cylinder 00:3
Further details regarding the individual steps (cont.)
28
Initial start-up, inspection, maintenance
5692 536 GB
