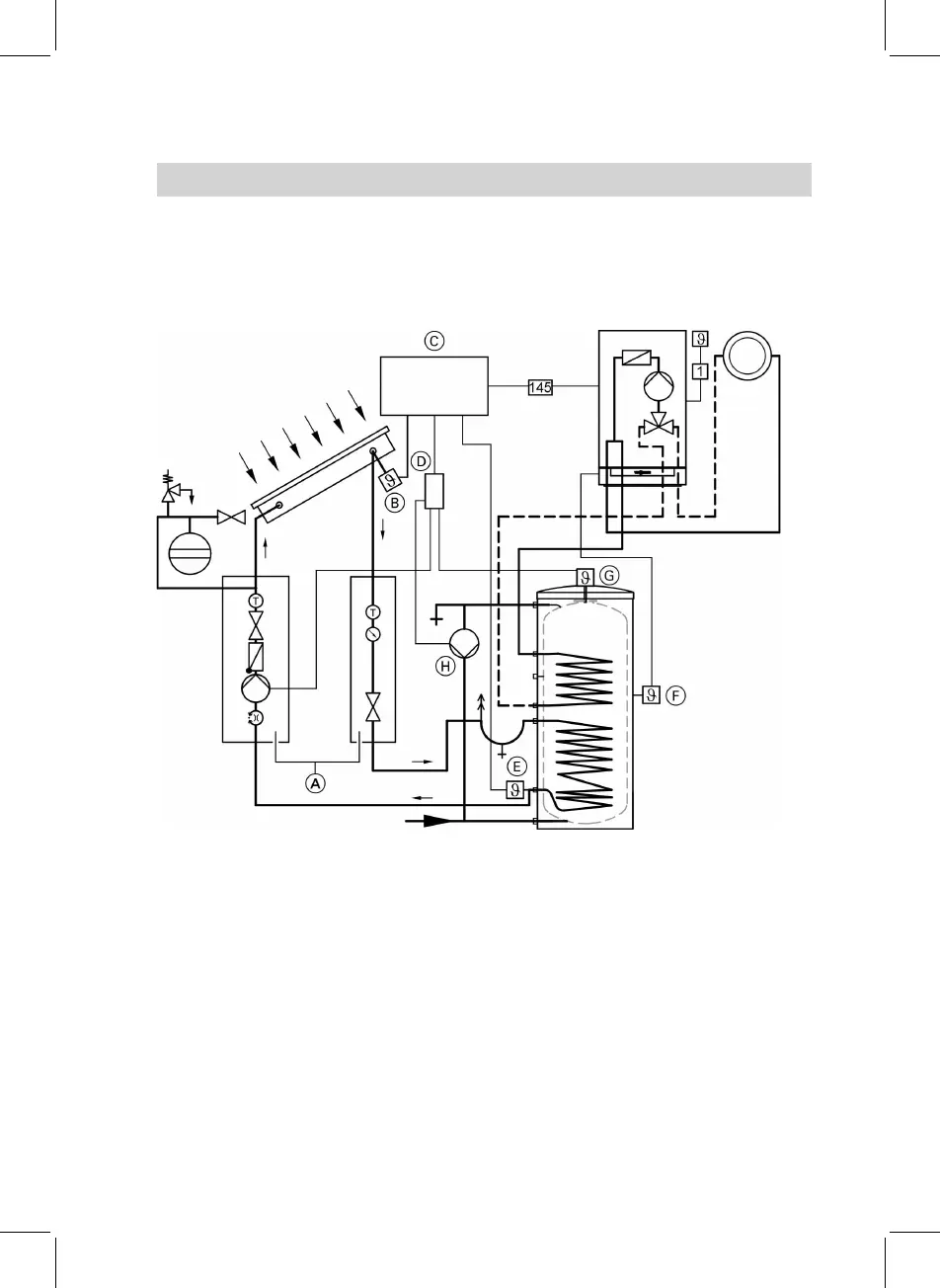

System design 6
With one heating circuit without mixer A1, solar collectors and Vitocell-W
100 DHW cylinder (type CVB) installed adjacent to the boiler
! Outside temperature sensor
aVG KM BUS
A Solar-Divicon
B Collector temperature sensor
C Vitosolic 100 or 200
D Connection extension (only for
Vitosolic 100, accessories)
E Cylinder temperature sensor for
solar operation
F Cylinder temperature sensor
(accessories)
G High limit safety cut-out
*
1
H Re-stratification pump
Further details regarding the individual steps (cont.)
29
Initial start-up, inspection, maintenance
5692 536 GB
*1
High limit safety cut-out required only for:
*1
DHW volume smaller than 30 l/m
2
absorber surface when using the Vitosol 100.
*1
DHW volume smaller than 100 l/m
2
absorber surface when using Vitosol 200 or 300.
