Set-up
18

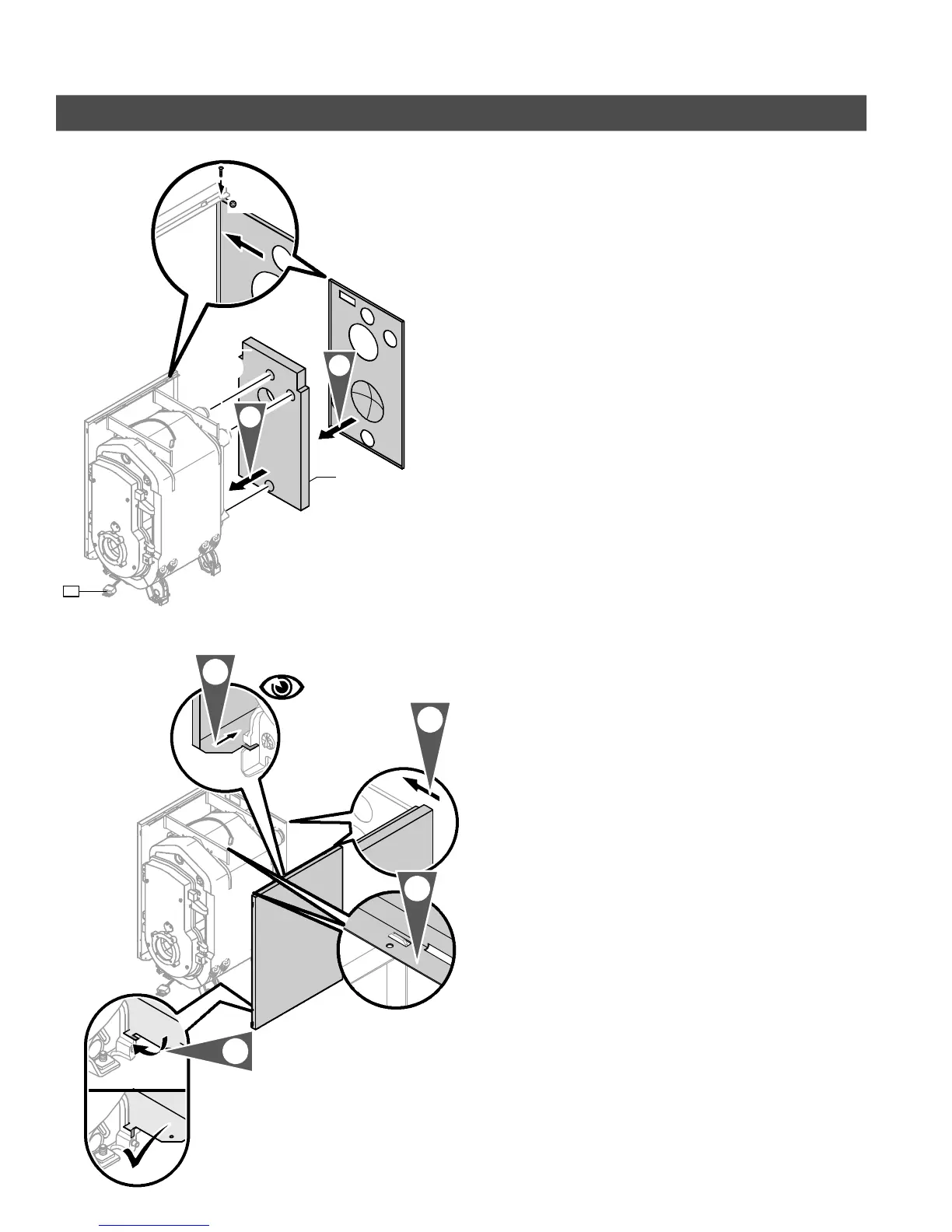

Insulation Installation (continued)
8. Install rear insulation blanket to cast
iron block, black side facing outward.
9. Install rear panel.
10. Install right side panel on support
brackets. Ensure top of side panel
fits over top of rear panel.
11. Line up bottom tab of side panel
with notch in casting leg.
12. Once side panel is in place, bend
down tab as shown.
5671 044 v1.0
A
!
41
8.
9.
3,9 x 9,5
Fig. 10
!
2x
Fig. 11
12.
10.
10.
11.
