To extend the range of the wireless signal, the follow-
ing repeaters can be used:
■
Viessmann ViCare repeater for surface mounting
■
Ubisys repeater

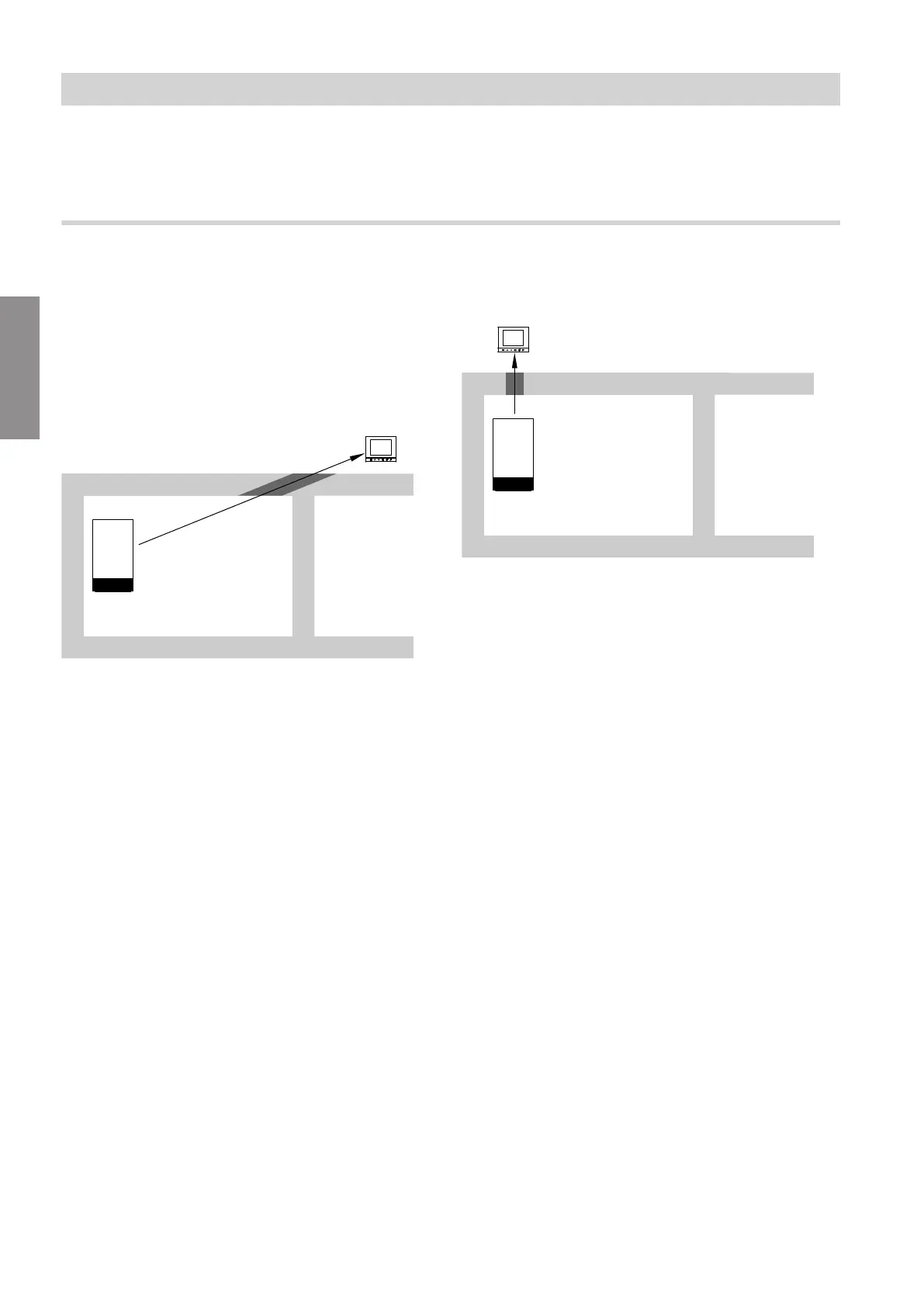

Angle of penetration
The reception quality remains best if radio signals hit
the walls vertically.
Depending on the angle of penetration, the effective
wall thickness changes and so does the extent to
which the electromagnetic waves are damped.
Flat (unfavourable) angle of penetration
B
A
C
Fig. 1
A
Vitotrol 100-E
B
Viessmann appliance
C
Wall
Ideal angle of penetration
C
B
A
Fig. 2
A
Vitotrol 100-E
B
Viessmann appliance
C
Wall
