Vitotrol 200A, Installation, Operating and Service

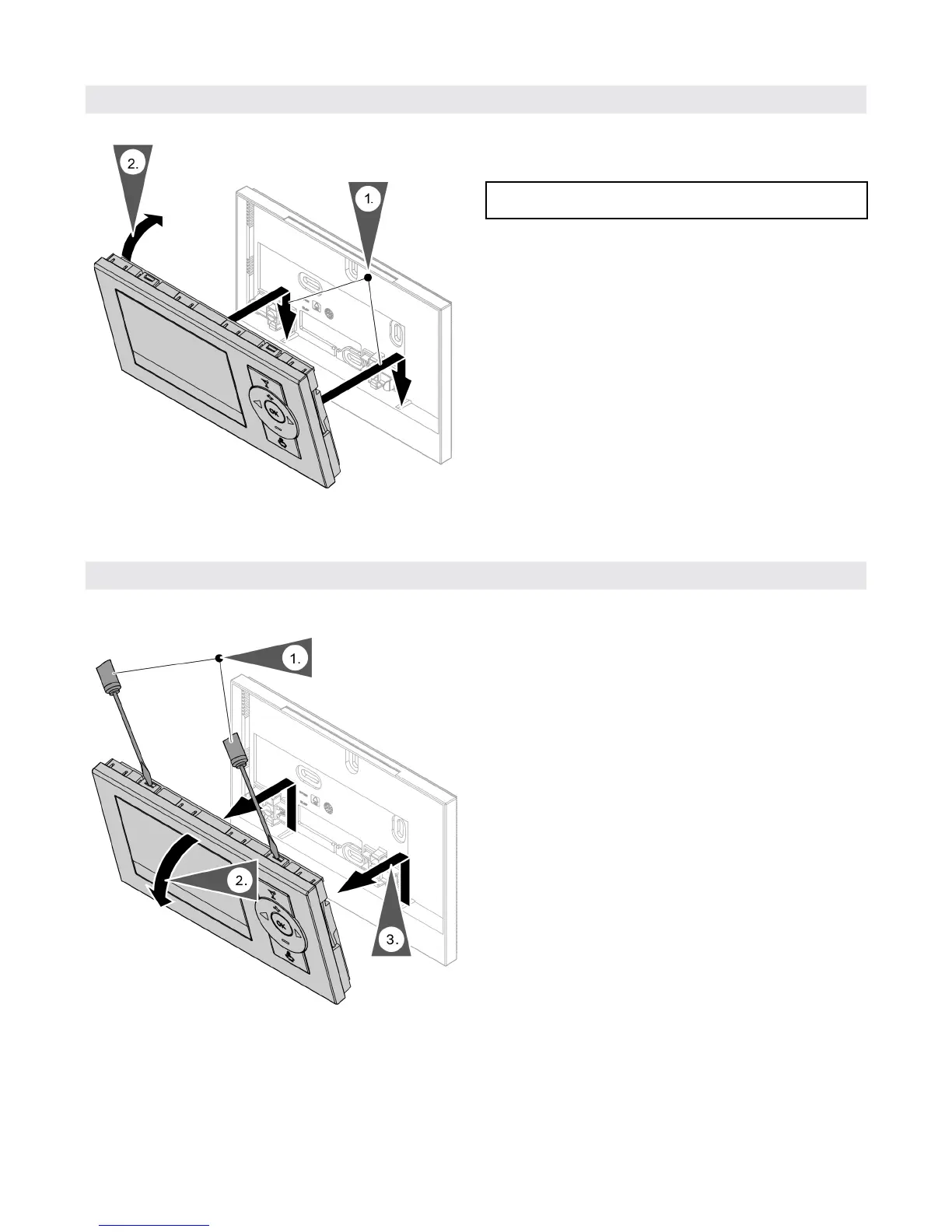

Fitting the Programming Unit
Installation
Removing the Programming Unit (if required)
Note: The remote control is supplied with power by the
control unit.
Do not insert batteries into the programming unit.
1. Hook the bottom of the Vitotrol 200A interface to the
mounting plate.
2. Push the top of the Vitotrol 200A interface in to the
mounting plate.
1. Insert a flat head screwdriver into the slots along the
top of the Viototrol interface and twist.
2. Pull the top of the Vitotrol 200A interface out from
the mounting plate.
3. Unhook the base of the Vitotrol 200A interface from
the mounting plate.
