Vitotrol 200A, Installation, Operating and Service
Operation
The Vitotrol 200A remote control unit enables the
following adjustments to be made from the living space:
H Standard room temperature
H Heating program
All other settings are transmitted from the Vitotrol 200A
to the Vitotronic control unit and vice-versa. Always the
latest adjustments apply to your heating circuit.
Operation Information
Controls
+ Increases the standard room temperature.
– Reduces the standard room temperature.
You set the heating program.
OK You confirm your selections or setting.
You activate party mode.
You activate economy mode.

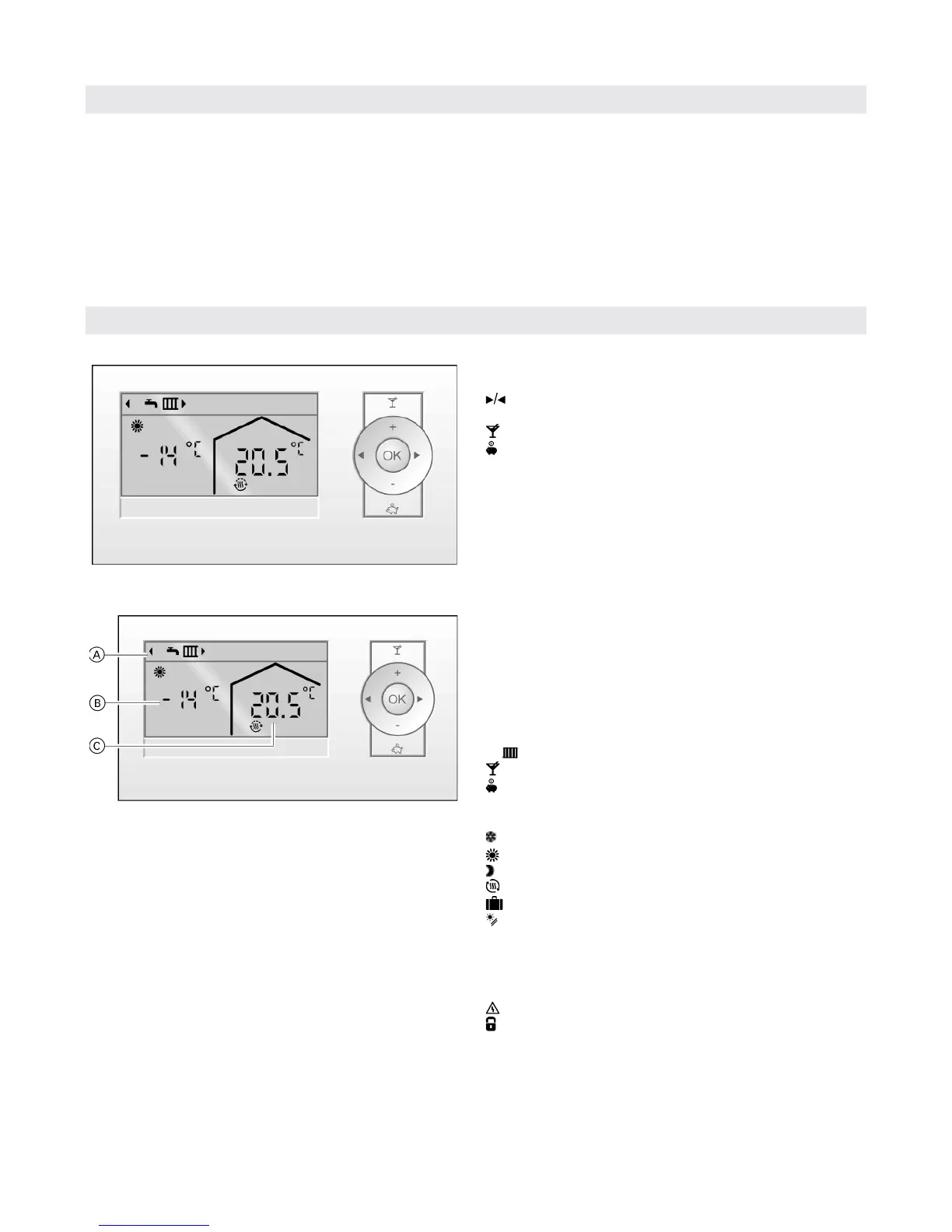

Legend
A Header (heating program display)
B Current outside temperature
C Current room temperature
Symbols on the display
These symbols are not permanently displayed, but appear
subject to the system version and the operating state.
Heating program (display in the header)
9 Standby mode with frost protection
w
DHW heating only
w
Central heating and DHW heating
Party mode enabled
Economy mode enabled
Displays
Monitoring frost protection
Central heating with standard room temperature
Central heating with reduced room temperature
Heating circuit pump runs
Holiday program enabled
In conjunction with a solar thermal system:
Solar circuit pump runs
+/
-
When selecting the set room temperature
Messages
Fault message
Operation blocked, except activating party mode
