Viessmann WB1A007 Technical Data Manual

3
5601 189 v1.1
Vitodens 100-W, WB1B Technical Data
General
Product Information

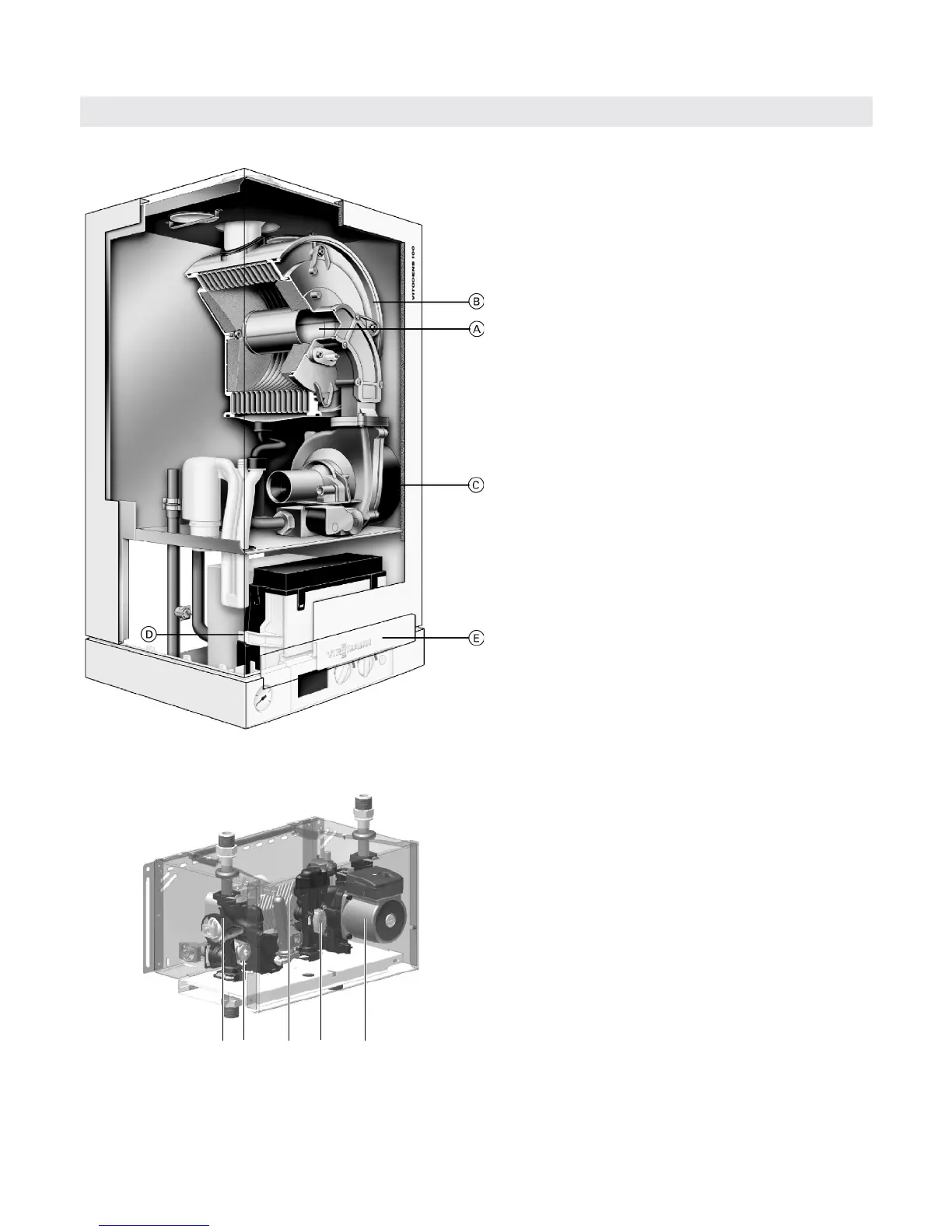

Boiler cross-section
Legend
A Stainless steel MatriX cylinder burner
B
Inox-Radial stainless steel heat exchanger
C Burner blower
D Gas and hydronic connections
E Boiler control
Standard Equipment:
Wall-mount boiler and installation fittings c/w 30 psi
pressure relief valve, pressure gage, gas shut-off valve,
two fill/drain valves, all mounting hardware, outdoor
temperature sensor, and LP conversion kit.
CombiPLUS cross-section
Legend
F Plate-type heat exchanger
G Boiler / DHW pump
H Flow sensor
I Pressure by-pass valve
J Diverting valve
Note: Products may not look exactly as illustrated.
GF
J I
H

Viessmann WB1A007 Specifications

General

Brand	Viessmann
Model	WB1A007
Category	Boiler
Language	English
