Viessmann WB1A007 Technical Data Manual

9
5601 189 v1.1
Vitodens 100-W, WB1B Technical Data
Dimensions

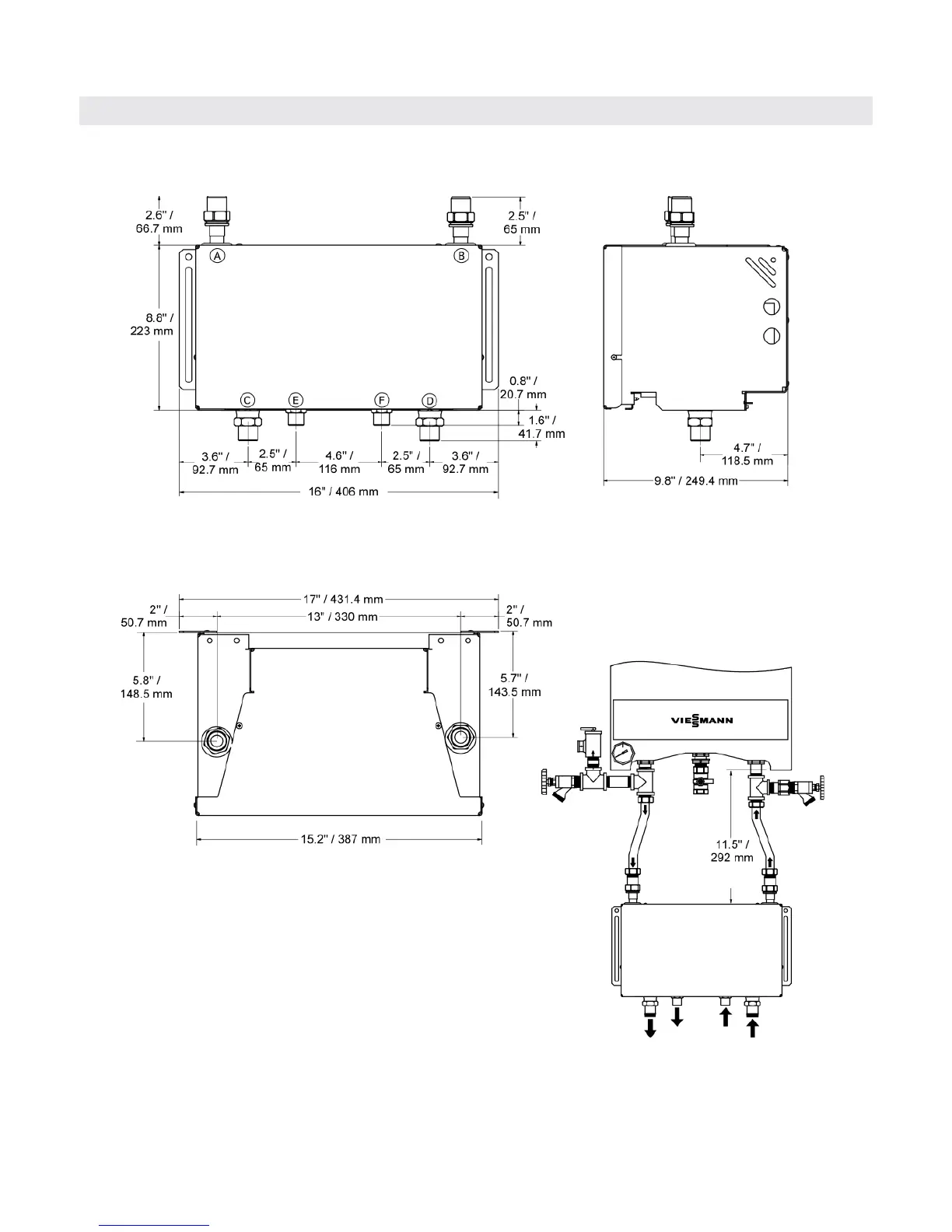

CombiPLUS dimensions and piping connections
CombiPLUS Connections
Top view
Side view
Front view
A B
C DE F
Front view
Legend
A Boiler water supply, NPTM ¾” (male thread)
B
Boiler water return, NPTM ¾” (male thread)
C System water supply, NPTM ¾” (male thread)
D System water return, NPTM ¾” (male thread)
E DHW, NPTM ½” (male thread)
F DCW, NPTM ½” (male thread)
with 7”
flex pipes
