VIETA VMD95LS - Wall Mounting Instructions; Main Set

4
WW
WW
W
all Mounting Instructionsall Mounting Instructions
all Mounting Instructionsall Mounting Instructions
all Mounting Instructions

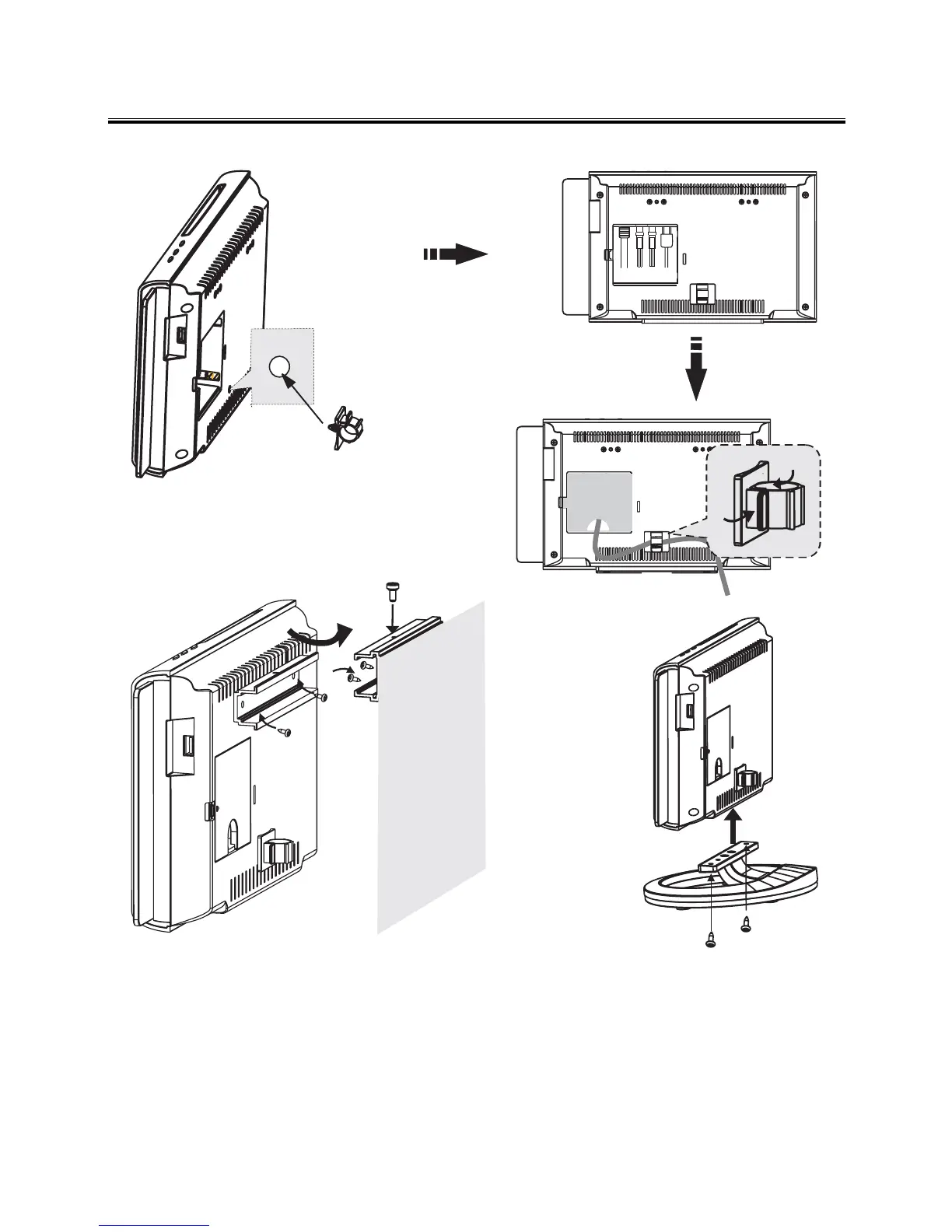

1. Connect all cables and secure into place.
2. Fix the wall bracket in place using two screws ensuring the locking pin hole is facing upwards.
Then screw the second part of the bracket in place using the two screws, ensuring the locking
pin hole is facing upwards. Finally slide the unit onto the wall bracket and secure in place using
the locking pin.
3. The unit can also be mounted on a stand. Place the unit on the stand and secure into place
using the screws provided.
Main SetMain Set
Main SetMain Set
Main Set
-
/
