7
Connecting AUXConnecting AUX
Connecting AUXConnecting AUX
Connecting AUX

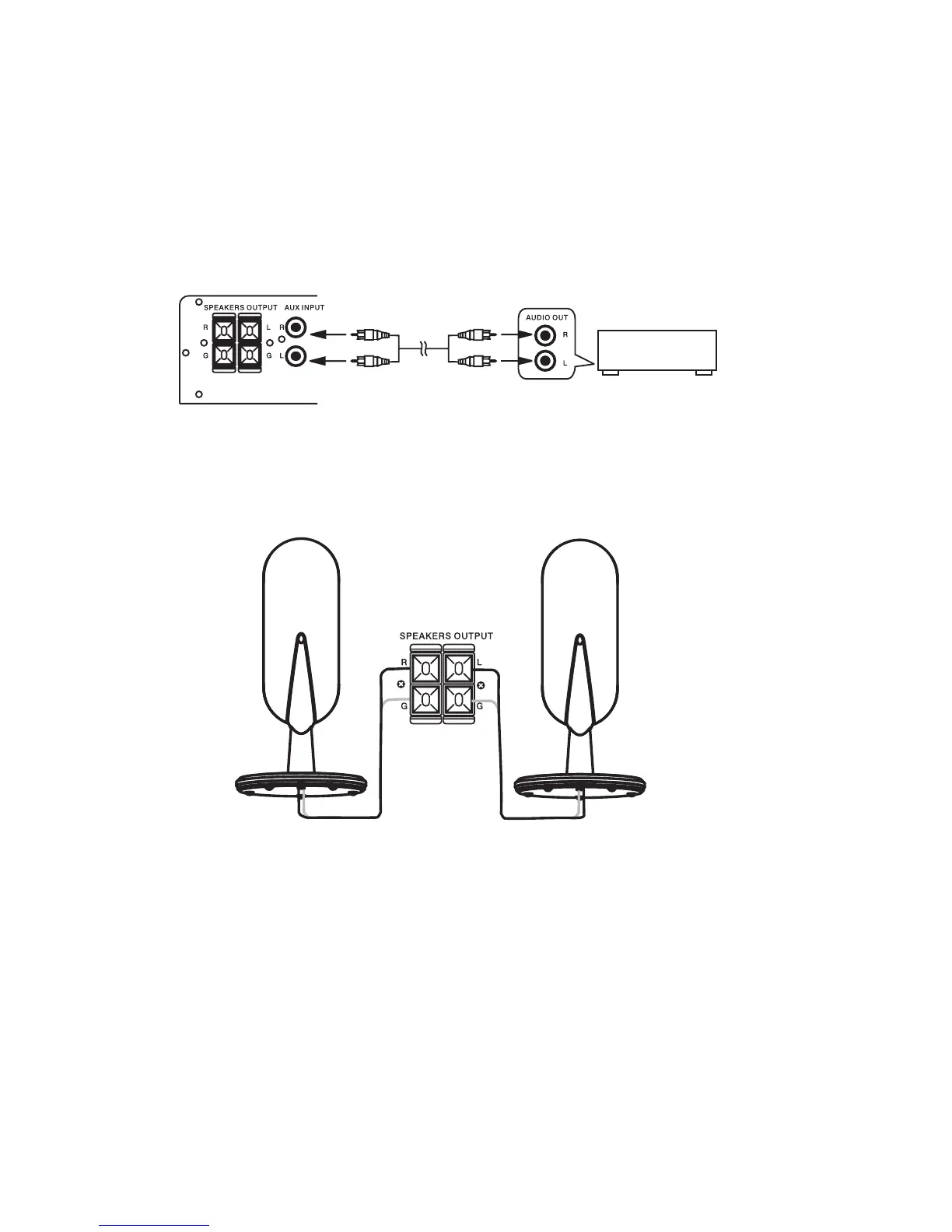

This sub-woofer has two audio input terminals, you can use signal line to connect audio input
terminals of this unit and audio output terminals of other equipment respectively, then you can
hear the sound sources.
Caution:Caution:
Caution:Caution:
Caution: Press the function select button
FUNCTIONFUNCTION
FUNCTIONFUNCTION
FUNCTION on the unit or on the remote control to
select AUX function. When you are connecting AUX audio terminals, please press
this function button.
Connecting the SpeakersConnecting the Speakers
Connecting the SpeakersConnecting the Speakers
Connecting the Speakers
Connect the speaker cords between the terminals as shown below.
Connect the cords with a gold line to the (+) (L) (R) terminals and cords with a silver line to the (-)
(G) terminals.
Right Speaker Box Back View Left Speaker Box Back View
Connection precautionsConnection precautions
Connection precautionsConnection precautions
Connection precautions
1. This unit has a high power output and wide dynamic range. If speakers other than those
supplied are used, they must be chosen according to speaker specification, or the speakers
can be damaged.
2. Before connecting or removing mains power, please turn off the power on the unit and turn
the volume to minimum or it may damage the speakers.
Connecting the AC Power CordConnecting the AC Power Cord
Connecting the AC Power CordConnecting the AC Power Cord
Connecting the AC Power Cord
Insert the AC power cord into a wall outlet, and your system is at your command!
Caution:Caution:
Caution:Caution:
Caution: Be sure to unplug the power cord from the outlet when going away or the system is
not in use for an extended period of time.
Terminal board for Sub-Woofer
Auxiliary Equipment
To Next Page
