1.4. Mounting on a Wall
To mount this display to a wall, you will have to obtain a standard wall-mounting kit. We recommend using a
mounting interface that complies with UL1678 standard in North America.

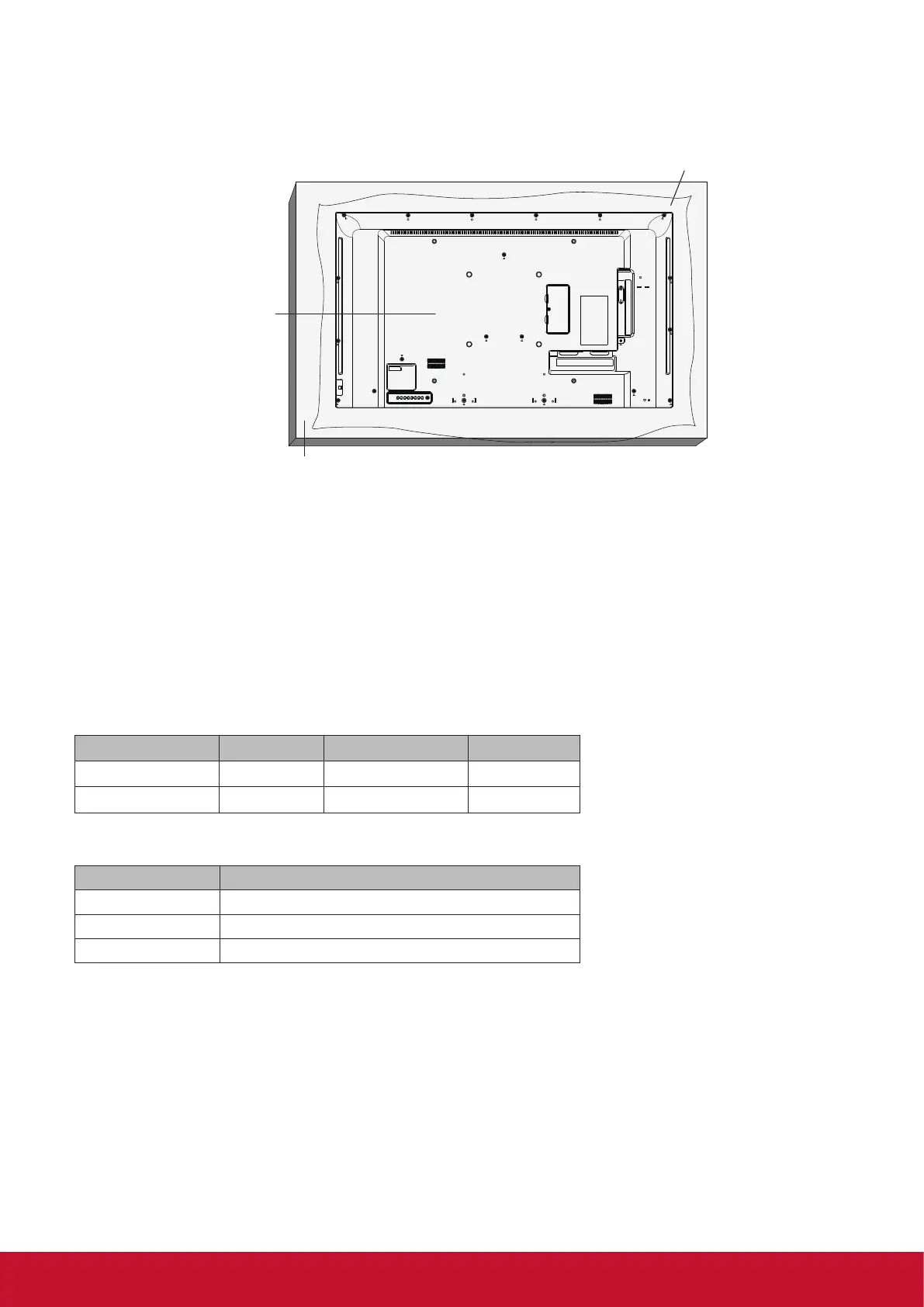

VESA Grid
Protective Sheet
Table
1. Lay a protective sheet on a table, which was wrapped around the display when it was packaged, beneath
the screen surface so as not to scratch the screen face.
2. Ensure you have all accessories for mounting this display (wall mount, ceiling mount, table stand, etc).
3. Follow the instructions that come with the base mounting kit. Failure to follow correct mounting
procedures could result in damage to the equipment or injury to the user or installer. Product warranty
does not cover damage caused by improper installation.
4. For the wall-mounting kit, use M6 mounting screws (having a length 10 mm longer than the thickness of
the mounting bracket) and tighten them securely.
5. Unit without base weight = W Kg. The equipment and its associated mounting means still remain secure
during the test. For use only with UL Listed Wall Mount Bracket with minimum weight/load: W Kg.
Model Name W (kg) Model Name W (kg)
CDE4302 8.7 CDE5502 16.0
CDE4803 11.52
1.4.1. VESA Grid
Model Name Vesa Grid
CDE4302 200(H) x 200(V)mm / 400(H) x 400(V)mm
CDE5502 400(H) x 200(V)mm / 400(H) x 400(V)mm
CDE4803 200(H) x 200(V)mm / 400(H) x 400(V)mm
Caution:
To prevent the display from falling:
• For wall or ceiling installation, we recommend installing the display with metal brackets which are
commercially available. For detailed installation instructions, refer to the guide received with the
respective bracket.
• To lessen the probability of injury and damage resulting from fall of the display in case of earthquake or
other natural disaster, be sure to consult the bracket manufacturer for installation location.

ViewSonic CDE4302 Specifications

General

Panel life	30000 h
Panel type	TFT
Matrix type	-
Response time	6.5 ms
Display diagonal	43 \
Display brightness	350 cd/m²
Display technology	LED
Native aspect ratio	16:9
LED backlighting type	Direct-LED
Contrast ratio (typical)	3000:1
Display number of colors	16.78 million colors
Display diagonal (metric)	109 cm
Active display area (W x H)	940.9 x 529.25 mm
Console port	RS-232
Package weight	12.2 kg
Quick start guide	Yes
RS-232 input ports	1
Network controllable	RS232
Depth (without stand)	59.9 mm
Weight (without stand)	8700 g
USB version	2.0
HDMI version	1.4
USB connector type	USB Type-A
Orientation	Horizontal
Product color	Black
Product design	Digital signage flat panel
Panel mounting interface	200 x 200, 400 x 400 mm
RMS rated power	20 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	105 W
12200 g	Weight of the packaged product in gram.
Package depth	159 mm
Package width	1070 mm
Package height	696 mm
Cables included	AC, RS-232, VGA
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Width	968.2 mm
Height	559.4 mm
