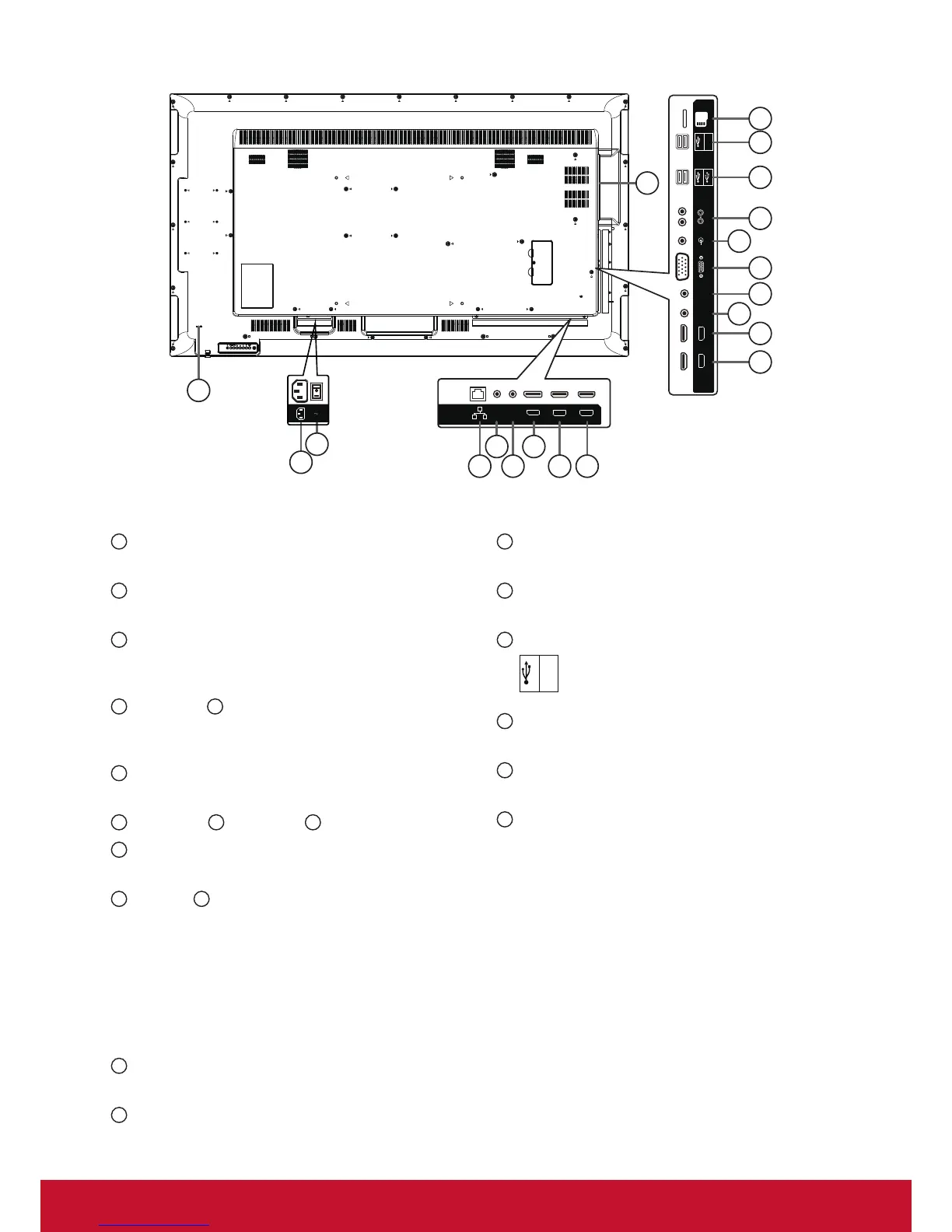

2.2. Input/Output Terminals
HDMI 3 IN HDMI 4 IN
AUDIO IN
MICRO SD
IR-INIR-OUT
AUDIO OUT
USB 5V/0.5A
5V/2A
D-SUB
USB 2.0 5V/0.5A
USB 3.0 5V/0.9A
HDMI 1 IN HDMI 2 IN
DP IN
RJ45
RS232
OUT
RS232
IN
9
10
12
11
13
14
16
15
17
18
19
20
3
4 6
5 7 8
1
2
1
AC IN
AC power input from the wall outlet.
2
MAIN POWER SWITCH
Switch the main power on/off.
3
RJ-45
LAN control function for the use of remote control
signal from control center.
4
RS232 IN
/
5
RS232 OUT
RS232C network output / input for the loop-through
function.
6
DisplayPort IN
DisplayPort video input.
7
HDMI1 IN /
8
HDMI2 IN /
9
HDMI3 IN /
10
HDMI4 IN
HDMI video/audio input.
11
IR OUT /
12
IR IN
IR signal input / output for the loop-through function.
NOTES:
• This display’s remote control sensor will stop
working if the jack [IR IN] is connected.
• To remotely control your A/V device via this
display, refer to page 14 for or IR Pass Through
connection.
13
VGA IN (D-Sub)
VGA video input.
14
AUDIO IN
Audio input for VGA source (3.5mm stereo phone).
15
AUDIO OUT
Audio output to external AV device.
16
USB PORT
Connect your USB storage device
17
USB PORT A
USB
5V/2A
18
MICRO SD CARD
Connect your MICRO SD CARD.
19
OPS SLOT
Slot for installing the optional OPS module.
20
SECURITY LOCK
Used for security and theft prevention.
