3. Connecting External Equipment

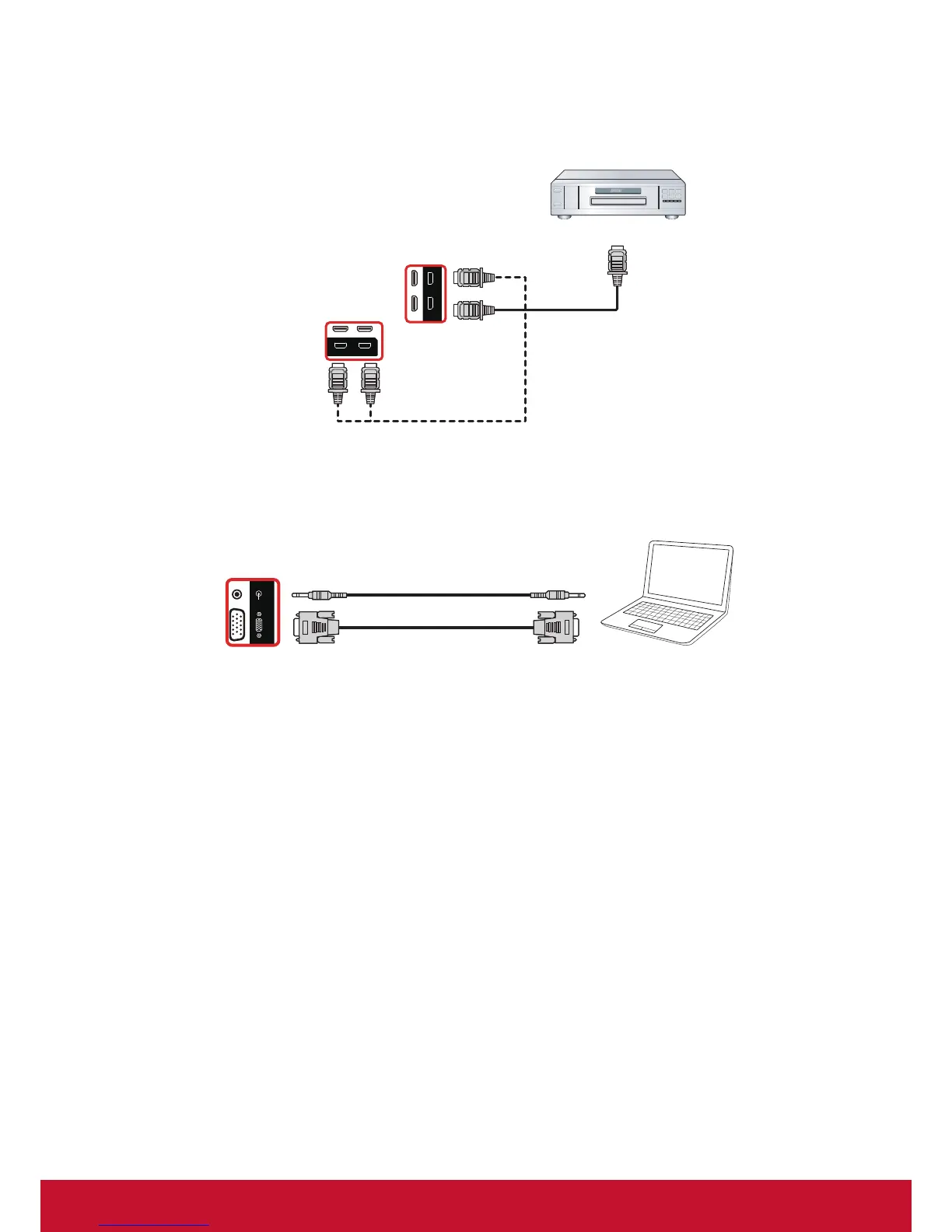

3.1. Connecting External Equipment (DVD/VCR/VCD)
3.1.1. Using HDMI video input
DVD / VCR / VCD
HDMI 3 IN HDMI 4 IN
IR-INIR-OUT
HDMI 1 IN HDMI 2 IN
HDMI Out
[HDMI IN]
PC
AUDIO IN
IR-INIR-OUT
AUDIO OUT
D-SUB
[VGA IN]
[VGA AUDIO IN]
VGA Out
D-Sub 15 pin
Audio Out
3.2. Connecting a PC
3.2.1. Using VGA input
DVD / VCR / VCD
HDMI 3 IN HDMI 4 IN
IR-INIR-OUT
HDMI 1 IN HDMI 2 IN
HDMI Out
[HDMI IN]
PC
AUDIO IN
IR-INIR-OUT
AUDIO OUT
D-SUB
[VGA IN]
[VGA AUDIO IN]
VGA Out
D-Sub 15 pin
Audio Out
