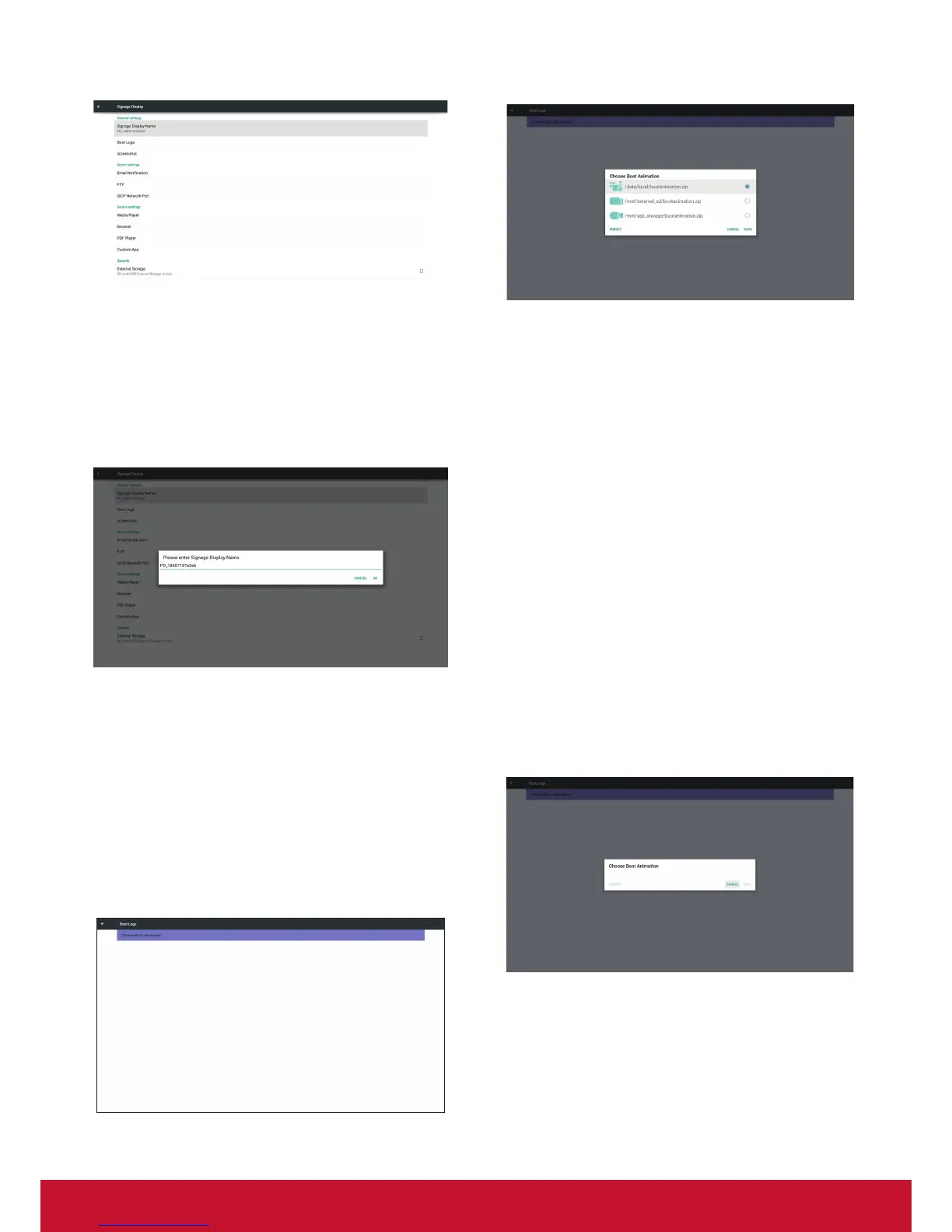

20
3) When boot logo selected, PD will check if there
is bootanimation. zip under USB and SD card.
Proxy hostname
Proxy port
Type
HTTP
Proxy settings
Authentication
Username
Password
Authentication
Main Switch
Disable
Enable
Proxy
Email Notification
FTP
Remote Control
SCIP Network Port
Server settings
Media Player
Browser
CMND & Play
PDF Player
Custom App
Source settings
General settings
Signage Display Name
PD_0024672157ea
Security
External Storage
SD card/USB External Storage Unlock
Boot Logo
Screenshot
Signage Display
Function introduction:
a. Option description
/data/local
Use customized boot animation le which is copied
from SD card or USB
/mnt/external_sd
Use boot animations le under SD card
/mnt/usb_storage
Use boot animations le under USB
b. Save
Press save key to save SD card or USB
bootanimation.zip to /data/
local and set it as boot logo.
c. Forget
Press Forget key to delete /data/local
bootanimation.zip and not show boot logo.
d. Cancel
Close dialogue w/o changes. Scenario
introduction:
Case 1
The user don’t settle customized boot logo. PD
does not nd any bootanimation.zip le under SD
and USB.The list will be blank. Save and Forget
button will be gray and useless.
(4) Security
A. External Storage
5.3.1. General Settings
1. Signage Display Name
Set up PD name “PD_” + Ethernet Mac Address.
Note:
Input limitation:
(1) length: Max 36 characters
(2) format: no limit
2. Boot Logo
1) Scalar OSD menu to control Android boot logo
enable/disable Scalar OSD menu operation
RCU: MENU -> Conguration2 -> Logo -> On/Off/
User.
In user mode, user can choose their own boot logo
animation le.
Note:
(1) Boot animation le name: bootanimation.
zip
(2) Will pop-up a window for user to select
USB and SD card. No priority issue.
Proxy hostname
Proxy port
Type
HTTP
Proxy settings
Authentication
Username
Password
Authentication
Main Switch
Disable
Enable
Proxy
Email Notification
FTP
Remote Control
SCIP Network Port
Server settings
Media Player
Browser
CMND & Play
PDF Player
Custom App
Source settings
General settings
Signage Display Name
PD_0024672157ea
Security
External Storage
SD card/USB External Storage Unlock
Boot Logo
Screenshot
Signage Display
