RS-232 Connecon

Computer

RS-232

Serial Port Cable

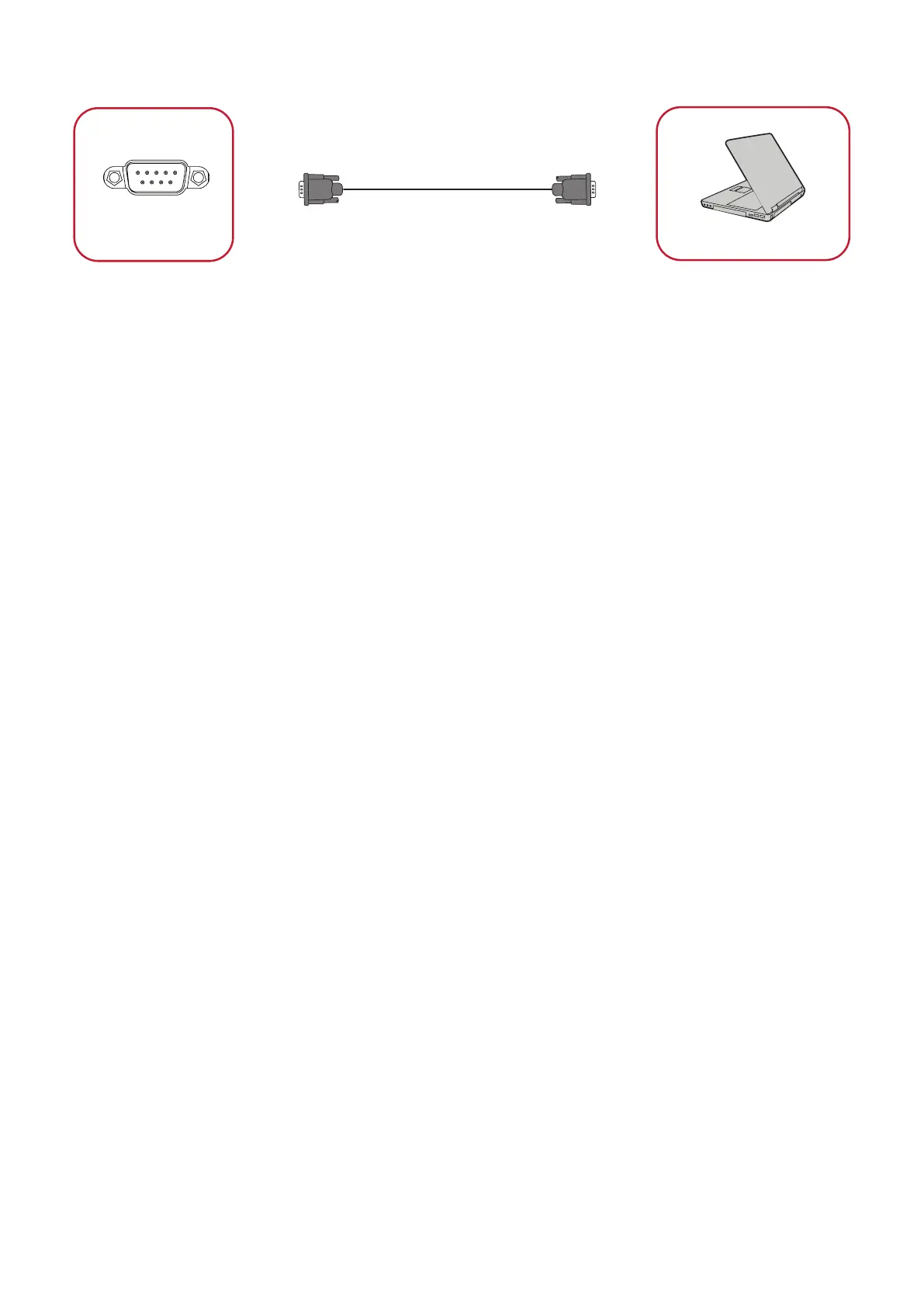

When you use a RS-232 serial port cable to connect your display to an external

computer certain funcons can be controlled remotely by the PC, including Power

On/O, Volume adjustment, Input select, Brightness, and more.
