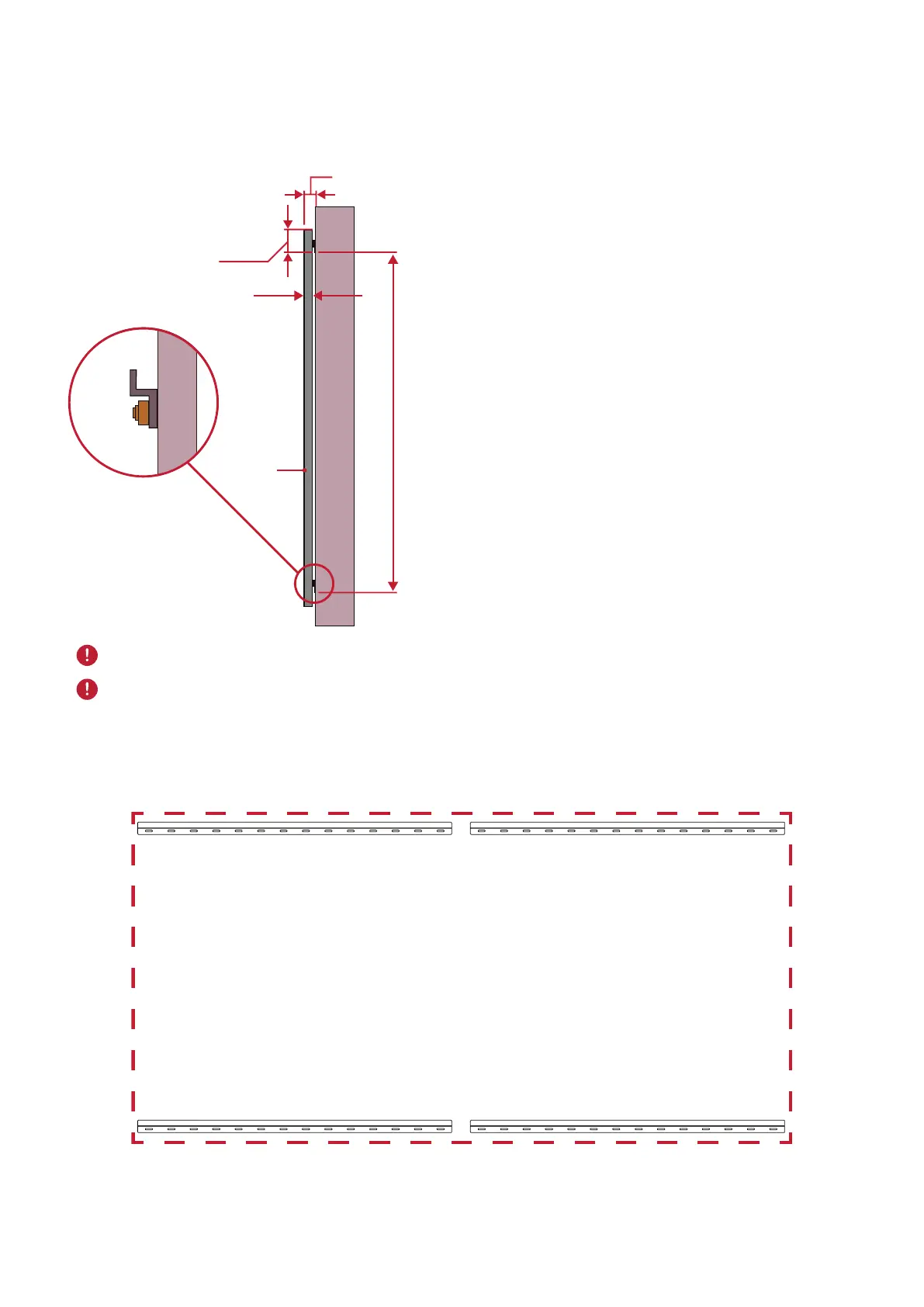

5. Install the Lower Wall Mount Brackets in the same manner as the Upper Wall
Mount Brackets. The distance between the Upper and Lower Wall Mount
Brackets is 93 ¹/₆₄" (2362.5 mm).
W
a
l
l
Display
mm
3.031 in
35
mm
1.378 in
93.01 in
4.016 in
102 mm
2362.5
mm
NOTE:
You can also install the Upper
Wall Mount Brackets, hang
the screen, and then install
the Lower Wall Mount
Brackets for a more precise
t.
Ensure the wall can safely support 749.57 lbs. (340 kg).
Ensure the deviaon of the wall surface is < ¹³/₆₄" (< 5mm).
6. Aer installing both Upper and Lower Wall Mount Brackets, the installaon wall
should look like:
