52
Wall Mounng

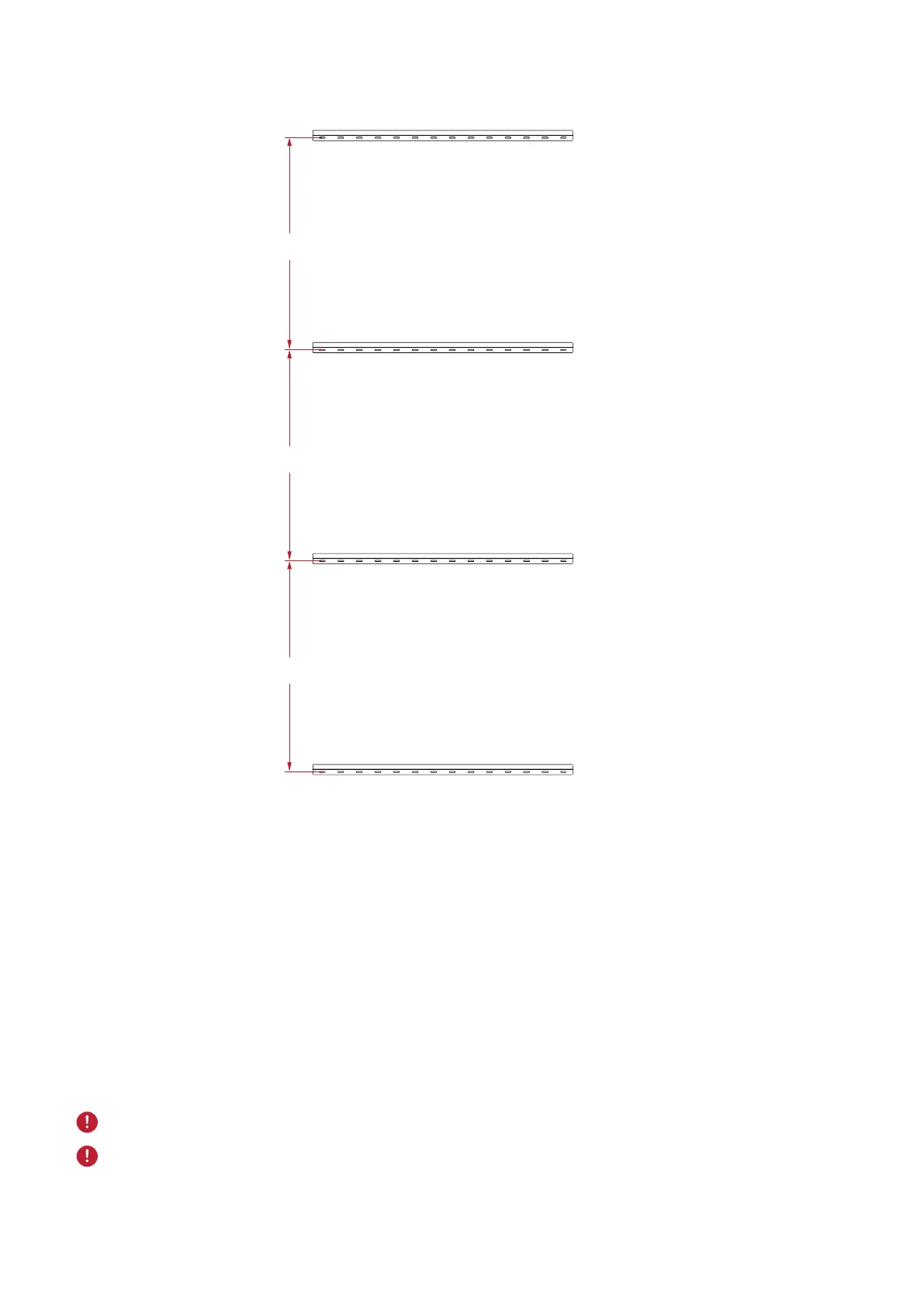

Installing the Wall Mount Brackets
47 ¹/₄ in
m
47 ¹/₄ in
m
47 ¹/₄ in
m
1. Ensure the wall area and size is an appropriate installaon site.
2. Using the rst Wall Mount Bracket, install the top Wall Mount Bracket with the
provided screws (M6x50mm Expansion for masonry; TA6x30mm for load bearing
wood).
3. Repeat Step 2, ensuring the second Wall Mount Bracket is level with the rst Wall
Mount Bracket. Keep a 47 ¹/₄" (1200 mm) space between the two brackets (as
pictured above).
4. Install the remaining two Wall Mount Brackets in the same manner as the other
two Wall Mount Brackets. The distance between the Wall Mount Brackets is 47
¹/₄" (1200 mm) and 47 ¹/₄" (1200 mm) respecvely.
Ensure the wall can safely support 749.57 lbs. (340 kg).
Ensure the deviaon of the wall surface is < ¹³/₆₄" (< 5 mm).
