Connecng the System Control Box (Hidden Installaon)

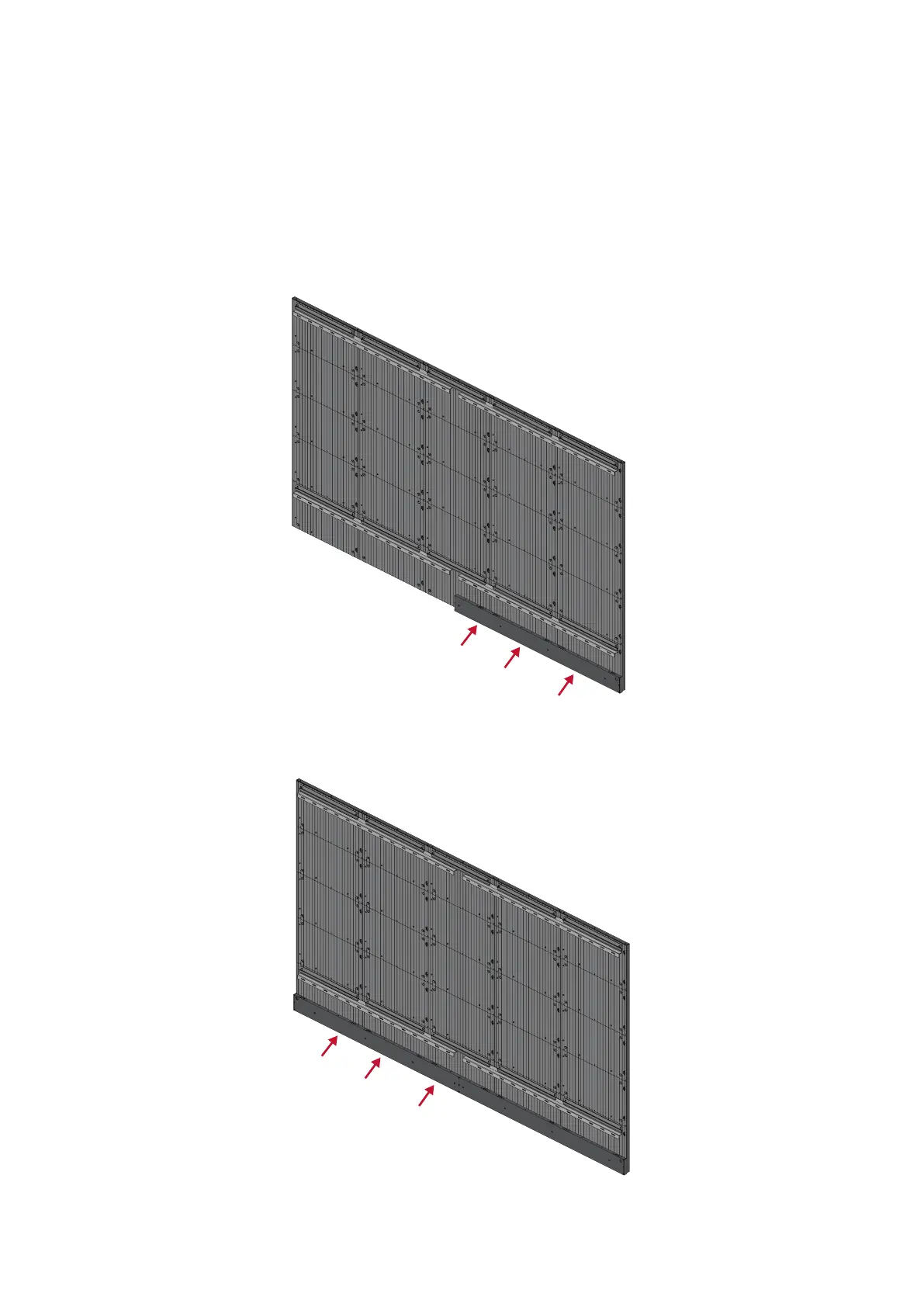

1. Carefully unfold the System Control Box panel. Ensure the main system control
board is on the right.
NOTE:  Use cauon as the System Control Box panel is separated into two pieces
with wires aached.
2. Install the le part of System Control Box using the M6x16mm screws behind the
Cabinet.
3. Install the right part of the System Control Box using the M6x16mm screws
behind the Cabinet.
