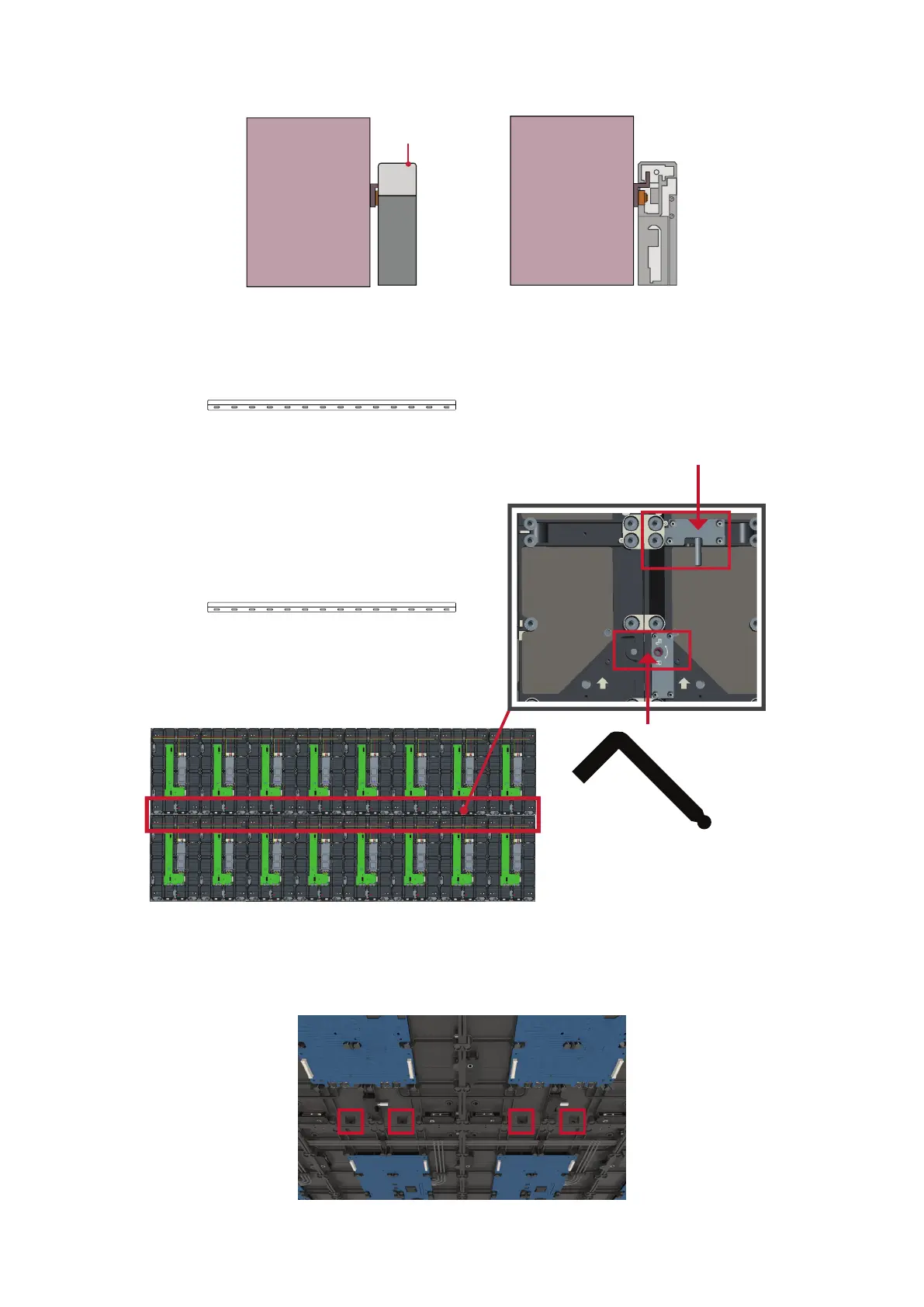

5. Ensure the Mounng Brackets sit securely on the Wall Mount Brackets as shown
below.
Wall
Wall
Display
6. Push each Locking Bolt and lock each Hook with the hex tool to securely connect
each cabinet together. It may be necessary to align the hole with an Allen wrench
in order to engage the Locking Bolt.
Push the Locking Bolt.
Lock each Hook with the hex tool.
NOTE:
There are eight (8)
Locking Bolt
s and 16
Hooks
between each cabinet.
7. Further secure the Cabinets together with M6x16mm screws.
