Connection

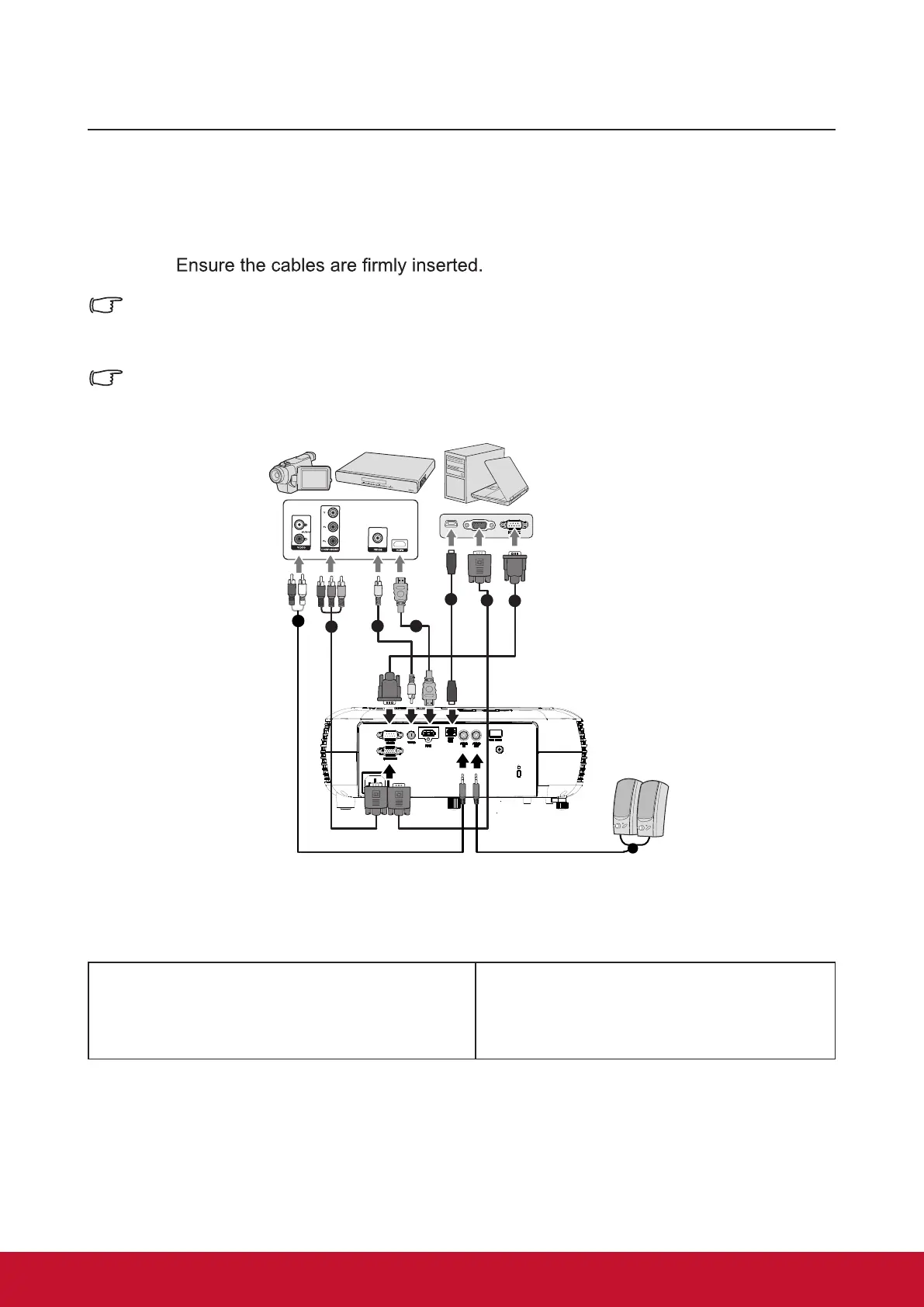

When connecting a signal source to the projector, be sure to:
1. Turn all devices off before making any connections.
2. Use the correct signal cables for each source.
3.
In the connections shown below, some cables may not be included within the projector
packaging (please refer to “Shipping contents”).
You may purchase the required signal cables from an electronics store.
The following links and icons are for references only. Connection jacks at the back of the
projectors may differ according to the projector model.
1.
VGA (D-Sub) to HDTV (RCA) line
2.
Composite video line
3.
HDMI cable4.
USB cable (mini-B to type A)
5.
VGA cable (D-Sub to D-Sub)
6.
RS-232 cable
2
3 4
5
6
7
1
1
7.
Audio cable
