ViewSonic PA700S User Manual

22

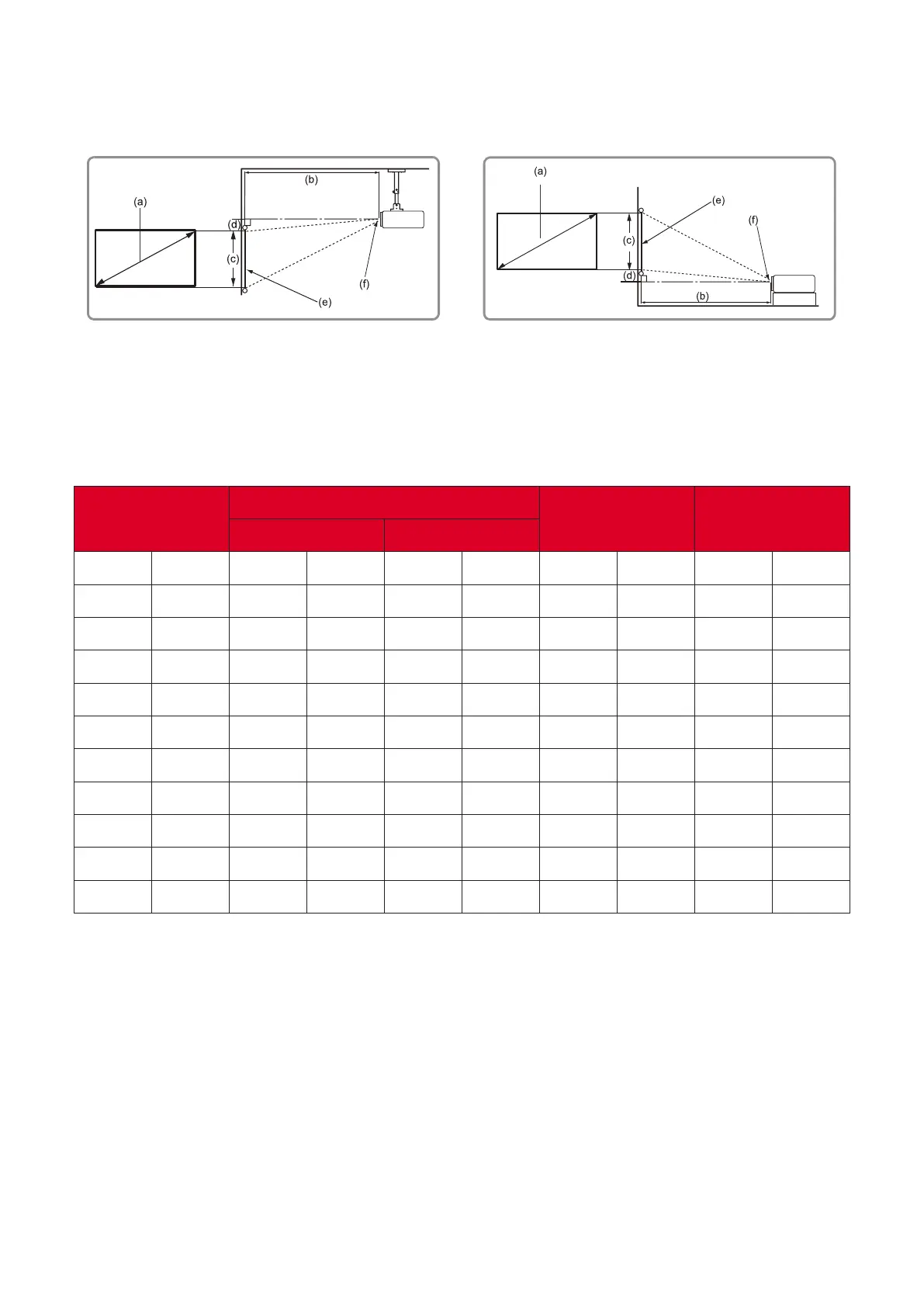

Projecon Dimensions - PA700W
• 16:10 Image on a 16:10 Screen
NOTE:
• (e) = Screen
(f) = Center of Lens
16:10 Image on a 16:10 Screen
(a) Screen Size
(b) Projecon Distance
(c) Image
Height
(d) Vercal
Oset
Minimum Maximum
in.
mm
in.
mm in. mm
in.
mm
in.
mm
30 762 39.20 995 43.80 1111 15.90 404 1.90 48
60 1524 78.36 1990 87.51 2223 31.80 808 3.94 100
80 2032 104.47 2654 116.68 2964 42.40 1077 5.26 134
90 2286 117.53 2985 131.27 3334 47.70 1212 5.91 150
100 2540 130.59 3317 145.86 3705 53 1346 6.57 167
120 3048 156.71 3980 175.03 4446 63.60 1615 7.89 200
150 3810 195.89 4976 218.78 5557 79.50 2019 9.86 250
200 5080 261.18 6634 291.71 7409 106 2692 13.14 334
250 6350 326.48 8293 364.64 9262 132.50 3365 16.43 417
300 7620 391.77 9951 437.57 11114 159 4039 19.70 500
NOTE:
• These gures are for reference purposes only. Please refer to the actual
projector for the precise dimensions.
• It is recommended that if you intend to permanently install the projector
to physically test the projecon size and distance using the actual projector
before you permanently install it.

ViewSonic PA700S Specifications

General

Number of colors	1.07 billion colors
Projection distance	1.18 - 13.17 m
Vertical scan range	23 - 120 Hz
Horizontal scan range	15 - 102 kHz
Projection technology	-
Contrast ratio (typical)	12500:1
Screen size compatibility	30 - 300 \
Projector native resolution	SVGA (800x600)
Keystone correction, vertical	-40 - 40 °
Cables included	AC, VGA
Remote control type	IR
Noise level	34 dB
HDCP version	1.4
Number of OSD languages	22
Noise level (economic mode)	25 dB
On Screen Display (OSD) languages	ARA, CHI (SIMPL), CHI (TR), CZE, DEU, DUT, ENG, ESP, FIN, FRE, GRE, HUN, IND, ITA, KOR, POL, POR, RUS, THA, TUR, VIE
Operating temperature (T-T)	0 - 40 °C
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	295 W
Supported video modes	480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Analog signal format system	NTSC, PAL, SECAM
Supported graphics resolutions	640 x 480 (VGA), 1920 x 1080 (HD 1080)
Audio (L/R) in	0
HDMI connector type	Full-size
Serial interface type	RS-232
USB 2.0 ports quantity	1
RMS rated power	3 W
Product type	Standard throw projector
Product color	White
Market positioning	Education
Cable lock slot type	Kensington
Lamp type	UHP
Lamp power	240 W
Lamps quantity	1 lamp(s)
Light source type	Lamp
Service life of light source	4000 h
Service life of light source (economic mode)	12000 h
Image lag time	33.2 ms
Focus	Manual
Offset	115 %
Throw ratio	1.94 - 2.16
Digital zoom	2 x
Optical zoom	1.1 x
Focal length range	21.85 - 24.01 mm
Aperture range (F-F)	2.42 - 2.53

Weight and Dimensions

Depth	234 mm
Width	309 mm
Height	115 mm
Weight	2700 g
Package depth	337 mm
Package width	400 mm
Package height	168 mm
Package weight	3800 g
