33
ViewSonic Corporation Confidential - Do Not Copy PJ503D-1

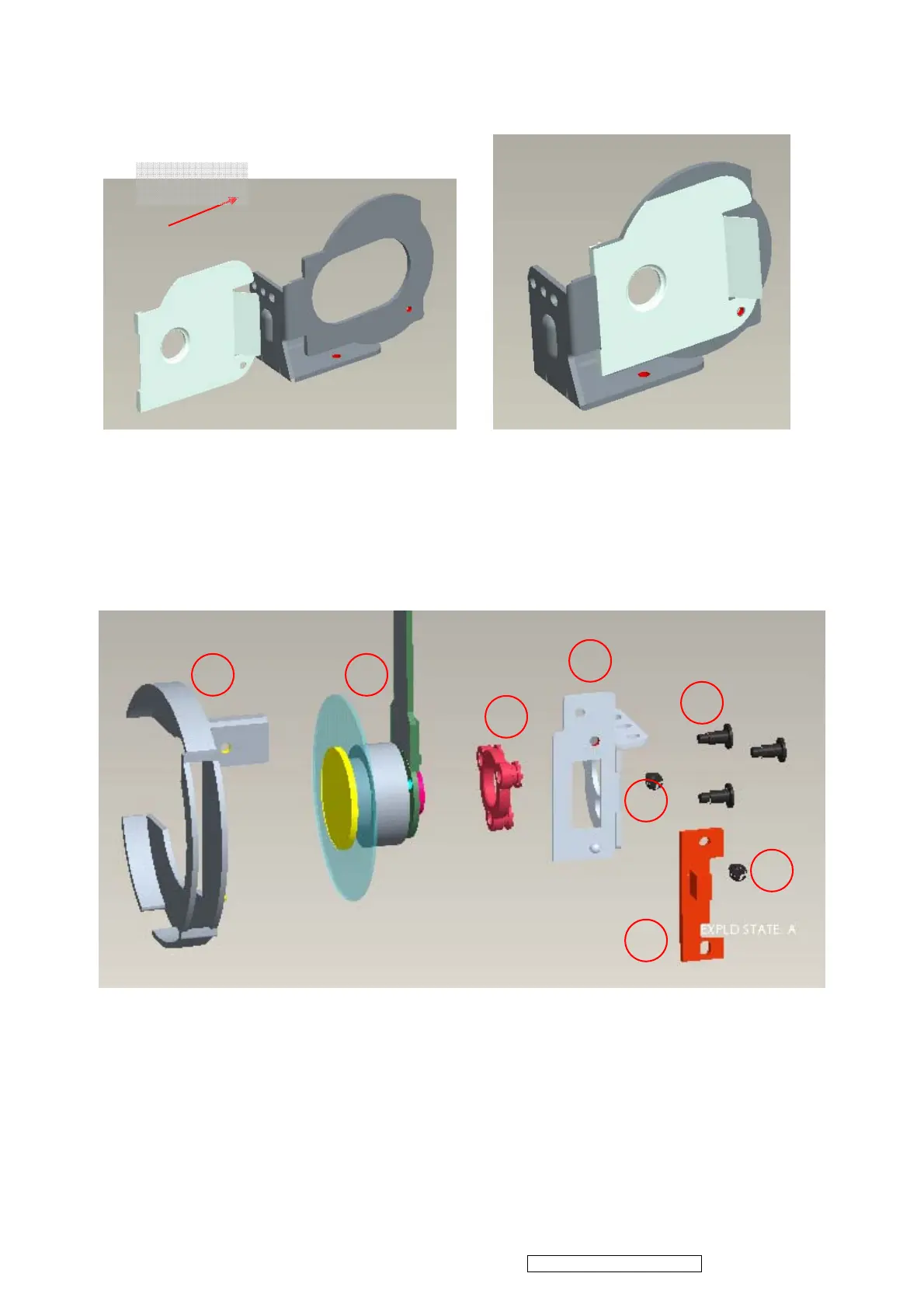

2. BKT LINK Lamp and CW Shield Assembly
Insert CW Shield to BKT LINK Lamp and fasten screw (Figure 2-1,2-2)
Figure 2-1 Figure 2-2
3.Assembly CW Module
2.1 CW Module Assembly Sequence as blow (Fig3-1):
(1) BKT CW (2) Damper CW (3)CW (4) Fixed screw (5) CVR CW
(6) M2 Screw (7)Sensor Board (8)M2 Screw
Fig3-1
1
4
3 5
6
2
7
8
Insert
