5. Twin Fan wire assembly concern
After assembling power BD shielding, connect fan connector to Main board before put Fan body
in Lower case.

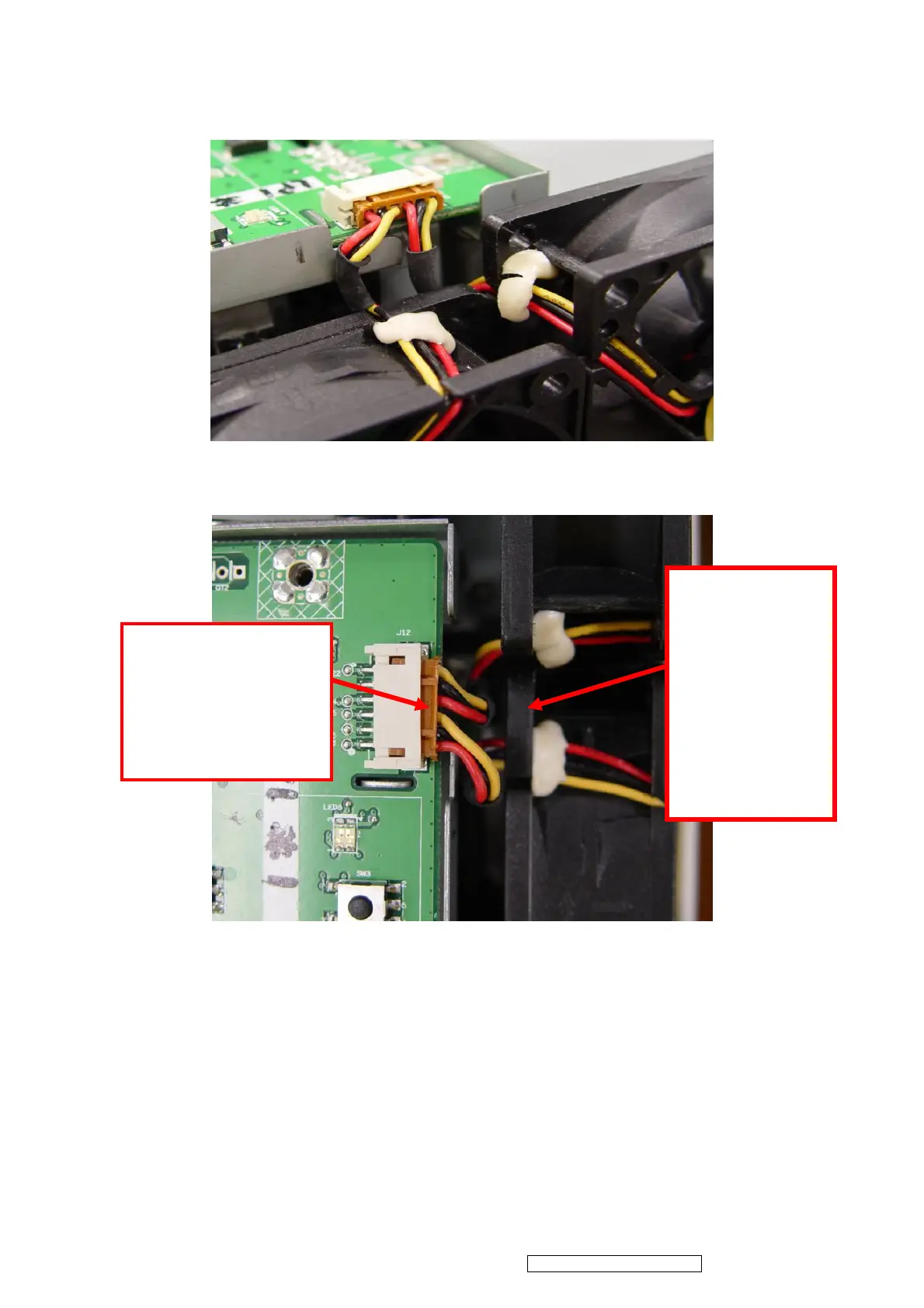

Figure 5-1. Twin Fan assembly concern.
Figure 5-2. Twin Fan assembly concern.
Do not plug in or
pull out the fan
connector by
holdin
g
the wire.
Do not pinch the
wire together
when assembling
Fan wire must keep
this location. Don’t
put wire on top of
the fan.
