56
ViewSonic Corporation Confidential - Do Not Copy PJ503D-1

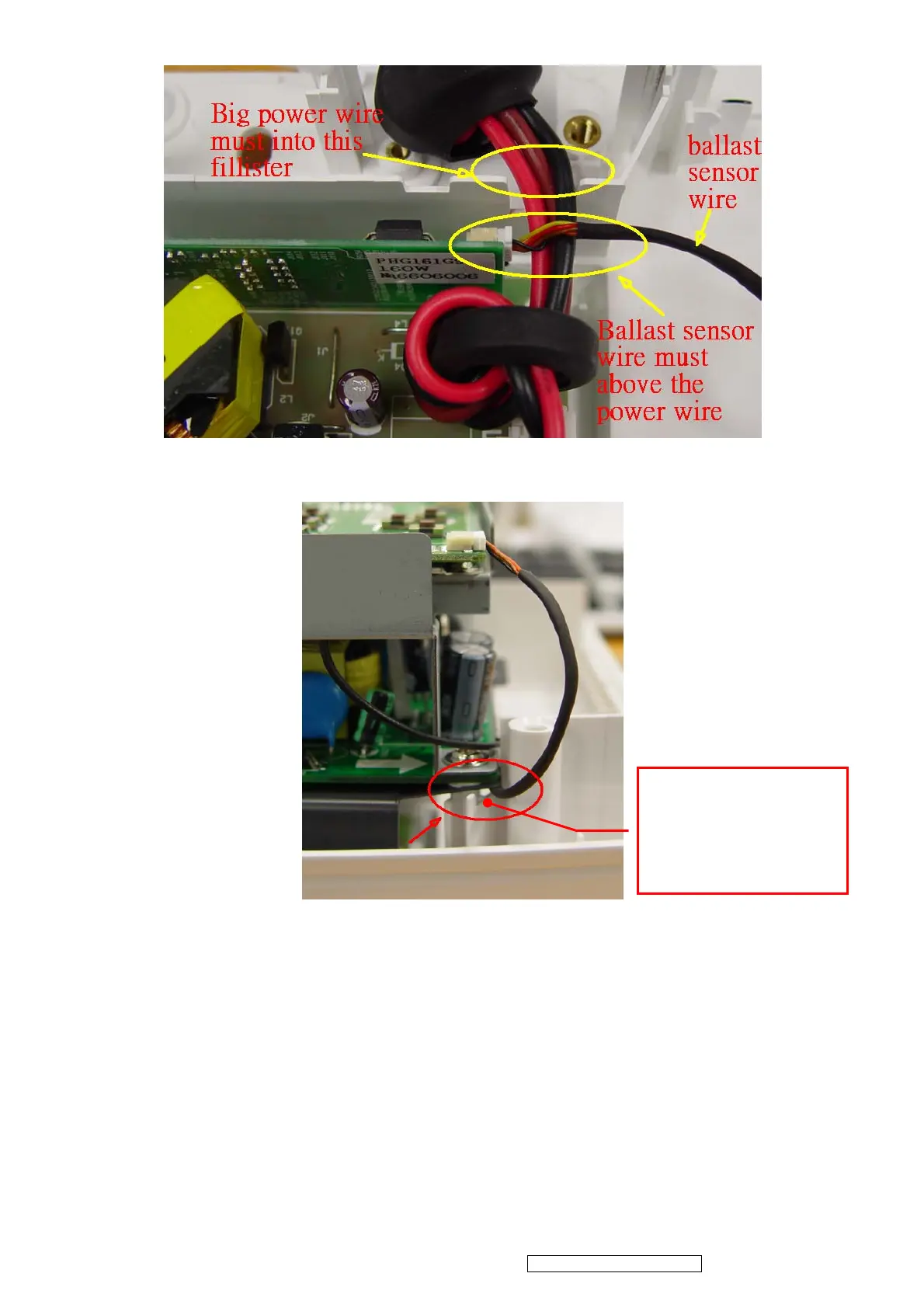

4. Ballast power wire and ballast sensor wire alignment
Figure 4-1. Ballast wire location.
Figure 4-2. Ballast sensor wire location.
NOTE: Please check ballast wire is connected to power board indeed before assembling
Power BD.
Ballast sensor
wire must into
this fillister
