ViewSonic PJ503D-1 - CW FPC, CW Sensor Wire and Blower Wire Alignment

54
ViewSonic Corporation Confidential - Do Not Copy PJ503D-1
2. CW FPC, CW sensor wire and blower wire alignment
CW FPC wire is constrained by Wire-saddle clip, see figure 2-1. CW FPC wire has to be crossed
above blower wire and
keep the redundant wire above lamp box
.

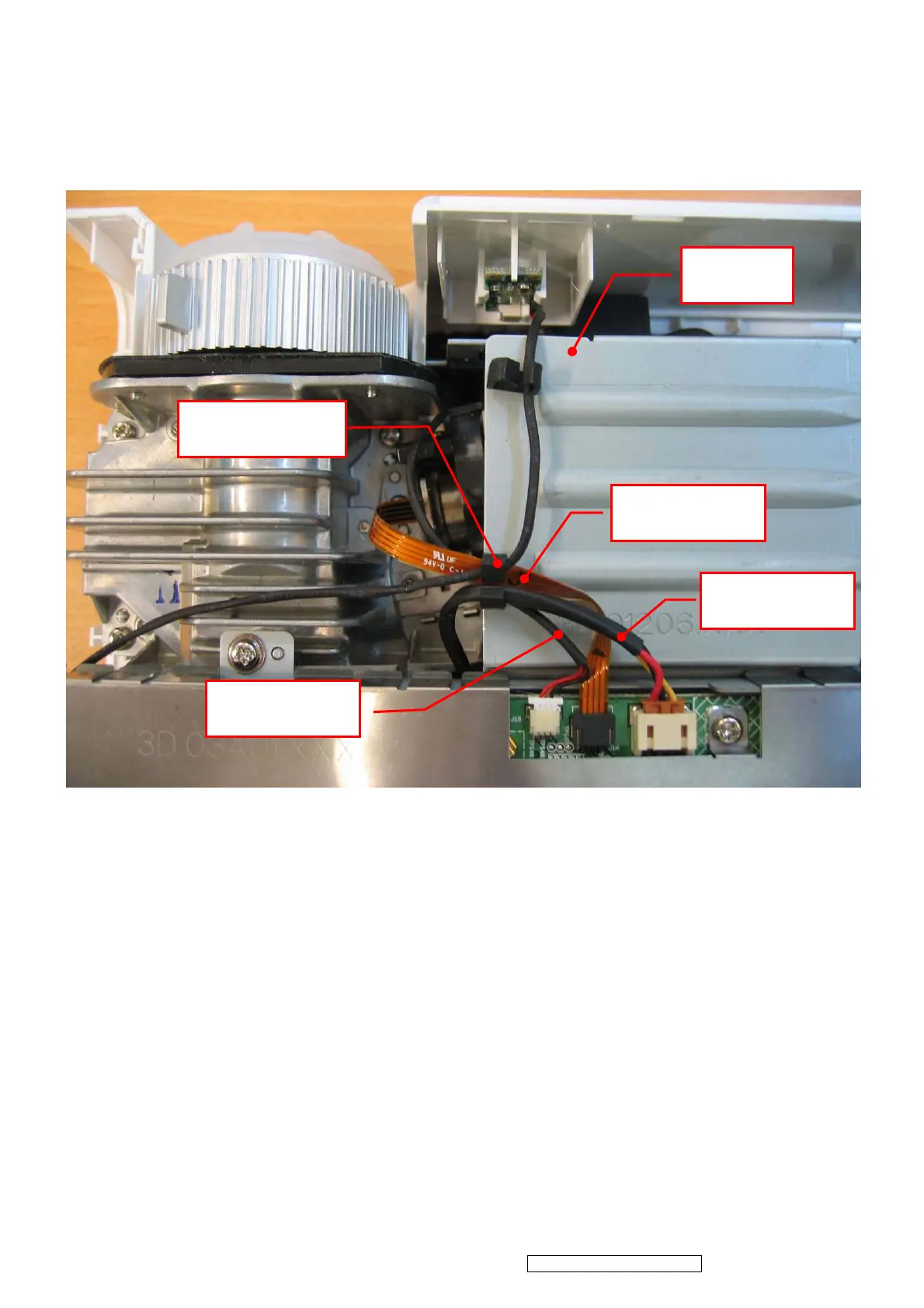

Figure 2-1. CW FPC wire alignment.
CW FPC wire
Wire-saddle clip
CW sensor wire
Lamp box
Blower fan wire
