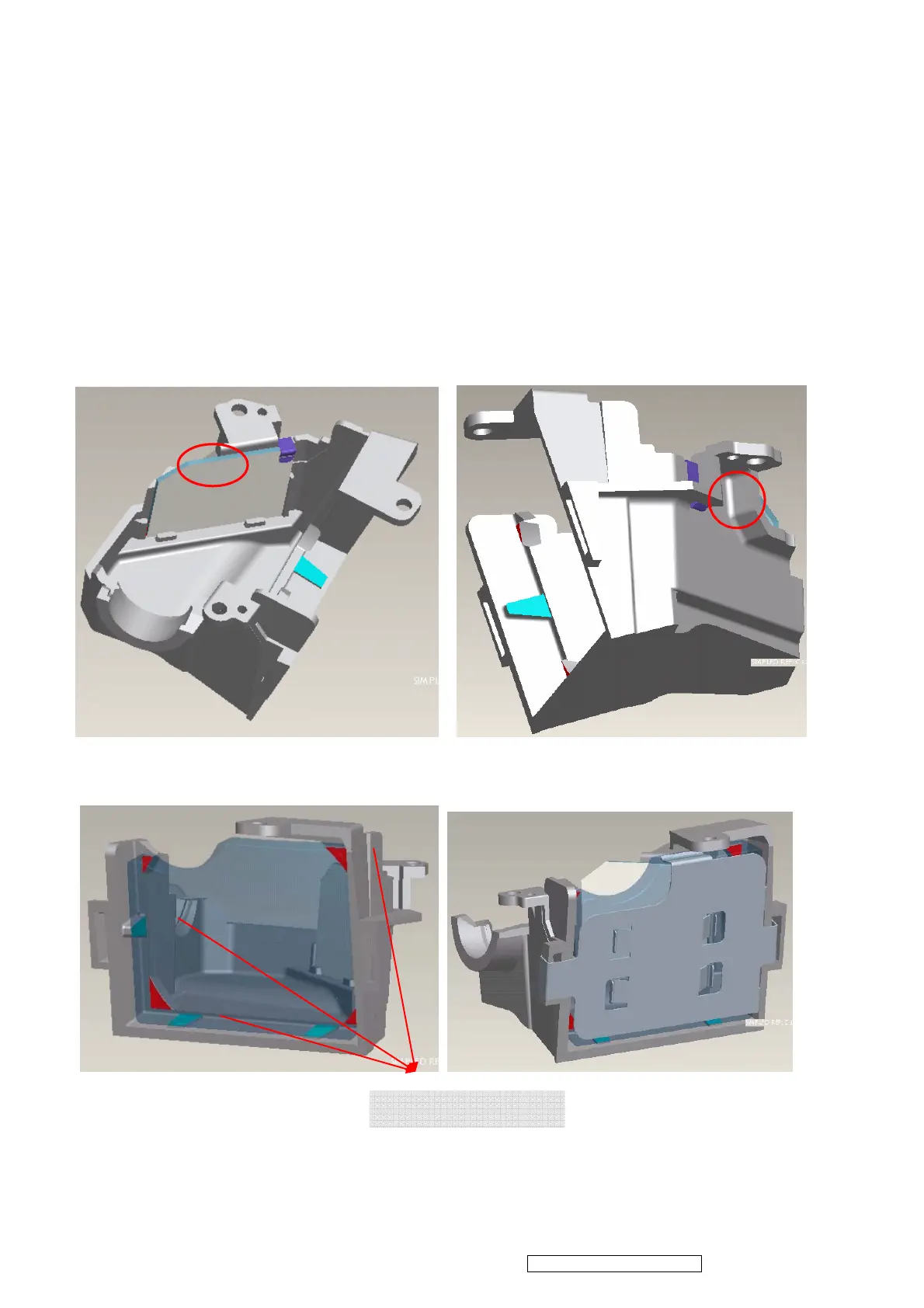

5. Assembly HSG ILL Module
5.1 FM1 Assembly
I. FM1 must be placed on datum surfaces well and breach of FM1 must be face to
inside( Fig 5-1)。
II. Insert the” CLIP of FM1” into the hole on the HSG ILL and make sure ” CLIP of FM1”
hook on the HSG ILL well ( Fig 5-2)。
5.2 CM Assembly
III. Assemble CM to HSG ILL and to make CM contact three datums on the HSG ILL
well( Fig 5-3)。
IV. Assemble “CLIP of CM” to the HSG ILL ( Fig 5-4)。
V. To check and make sure “ CLIP of CM” hook the HSG ILL very Well ( Fig 5-5)。
Fig 5-1 Fig 5-2
Fig 5-3 Fig 5-4
Breach of FM1
Datum of HSG ILL
